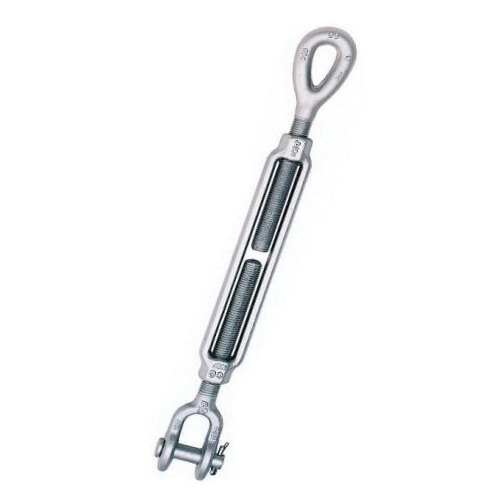

Crosby® 1032091 HG-227-3/4 X 12 Turnbuckle, Jaw/Eye, 3/4 in Thread, 5200 lb Working, 12 in Take Up, 24.49 in L Close, Steel
Crosby® 1032091 HG-227 Turnbuckle, Jaw/Eye, 3/4 in Thread, 5200 lb Working, 12 in Take Up, 24.49 in L Close, Steel
-
BrandCrosby®
-
Manufacturer Part Number1032091
-
CountryUSA
-
FinishHot Dipped Galvanized
-
Thread Diameter3/4 in
-
MaterialSteel
-
Closed Length24.49 in
-
SeriesHG-227
-
Working Load5200 lb
-
End/EndJaw/Eye
-
Take Up12 in
- End fittings are quenched and tempered or normalized, bodies heat treated by normalizing
- Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye
- For turnbuckles size 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through eye
- Forged jaw ends are fitted with bolts and nuts for 1/4 in through 5/8 in and pins and cotters on 3/4 in through 2-3/4 in sizes
- Modified UNJ thread on end fittings for improved fatigue properties
- Body has UNC threads
- Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
-
UNSPSC31162405
-
Standards/ApprovalsFederal Spec FF-T-791b Type 1/Form 1/Class 8|ASTM F-1145|ASME B30.26
-
