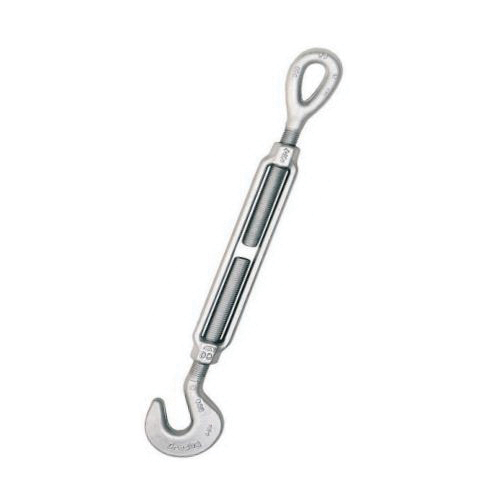

Crosby® 1030752 HG-225-5/8 X 6 Turnbuckle, Hook/Eye, 5/8 in Thread, 2250 lb Working, 6 in Take Up, 16.61 in L Close, Steel
Crosby® 1030752 HG-225 Turnbuckle, Hook/Eye, 5/8 in Thread, 2250 lb Working, 6 in Take Up, 16.61 in L Close, Steel
-
BrandCrosby®
-
Manufacturer Part Number1030752
-
CountryUSA
-
FinishHot Dipped Galvanized
-
Thread Diameter5/8 in
-
MaterialSteel
-
Closed Length16.61 in
-
SeriesHG-225
-
Working Load2250 lb
-
End/EndHook/Eye
-
Take Up6 in
- End fittings are quenched and tempered or normalized, bodies heat treated by normalizing
- Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye
- For turnbuckles size 1/4 in through 1 in, a shackle one size smaller can be reeved through eye
- Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties
- Modified UNJ thread on end fittings for improved fatigue properties
- Body has UNC threads
- Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
-
UNSPSC31162405
-
Standards/ApprovalsFederal Spec FF-T-791b, Type 1, Form 1, Class 6|ASTM F-1145|ASME B30.26
-
