HG-228-5/8X6 CROSBY 5/8"X 6"JAW/JAW TURNBUCKLE

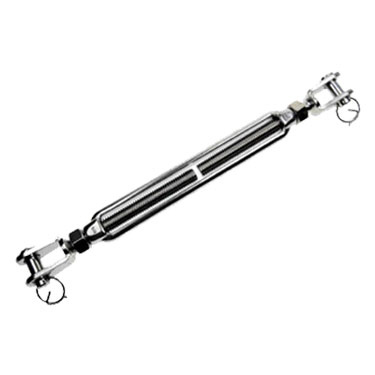

5/8" X 6" TURNBUCKLE WITH JAW ON BOTH SIDES 1032616
Recently Viewed
5/8" X 6" TURNBUCKLE WITH JAW ON BOTH SIDES 1032616
Forged and heat-treated steel components: end fittings quenched and tempered or normalized; body normalized.
Jaw ends feature bolt-and-nut connections (1/4"–5/8") or pin-and-cotter assemblies (3/4"–2-3/4").
Modified UNJ thread on end fittings for improved fatigue properties; body uses UNC threads.
Hot-dip galvanized finish for long-term corrosion protection.
Rated for straight or in-line pull only.
Fatigue rated to 20,000 cycles at 1.5× Working Load Limit.
Lock nuts available for all sizes.
5:1 design factor; proof load is 2.5× WLL.
Conforms to ASME B30.26, ASTM F-1145, and Federal Specification FF-T-791b Type 1 Form 1 Class 7.
