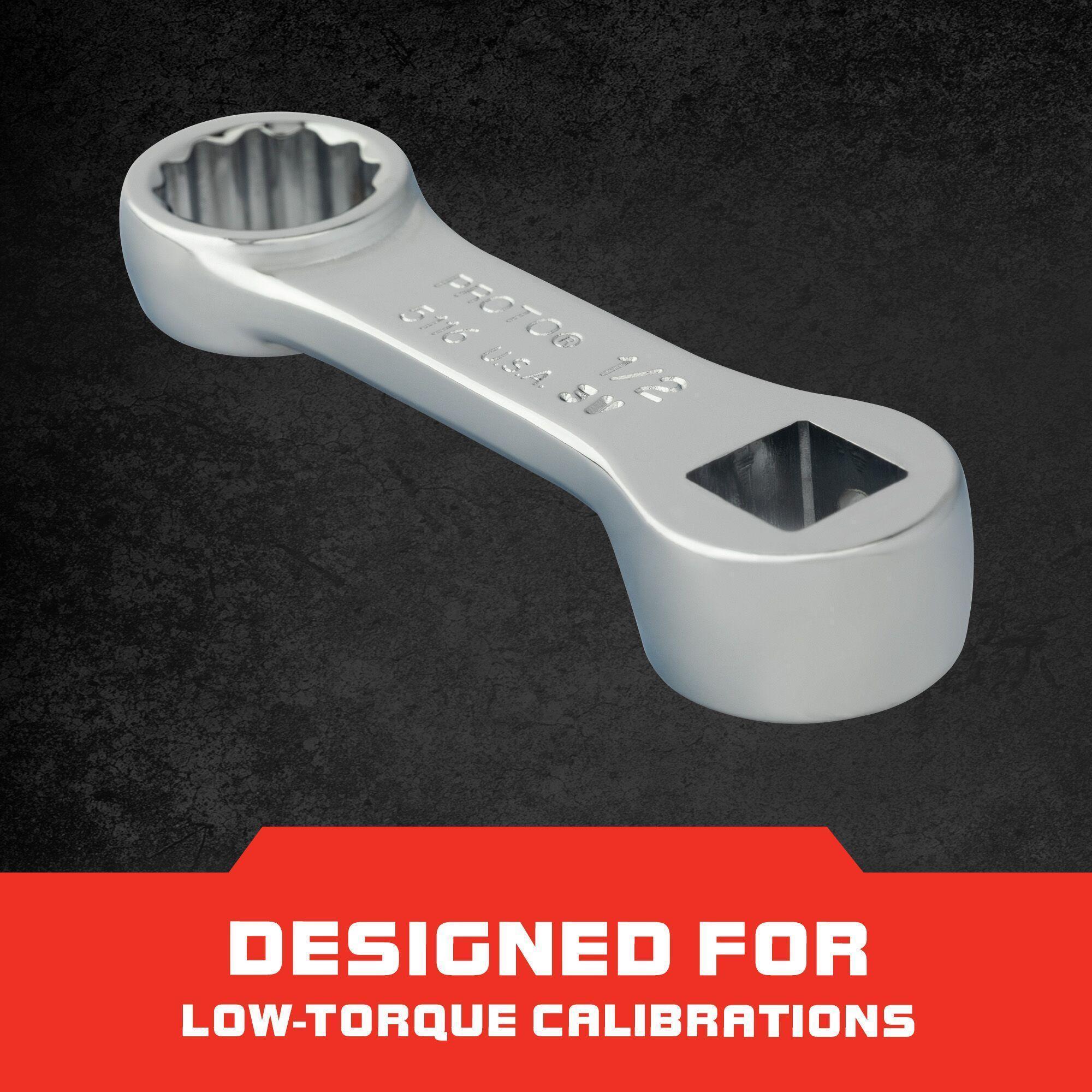

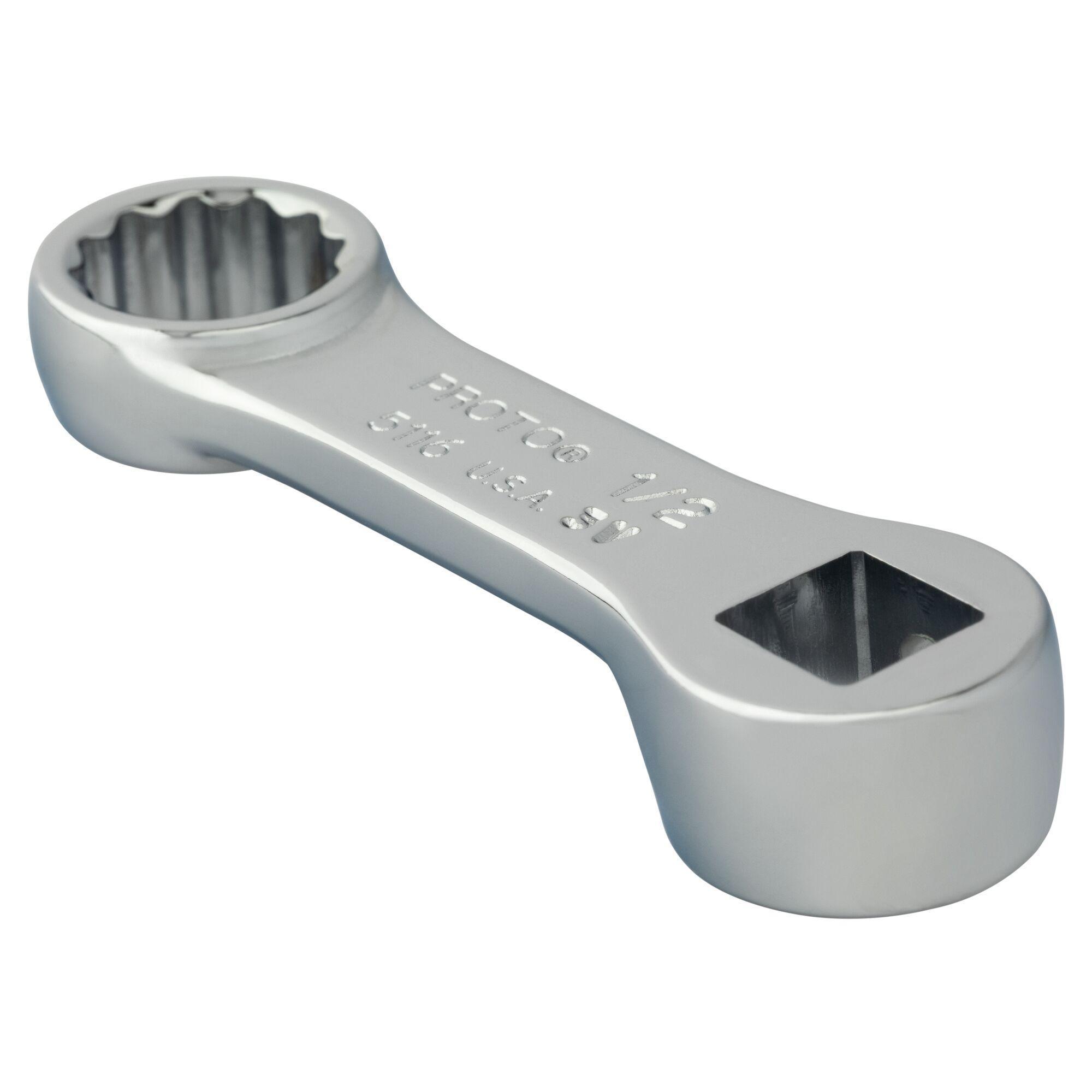

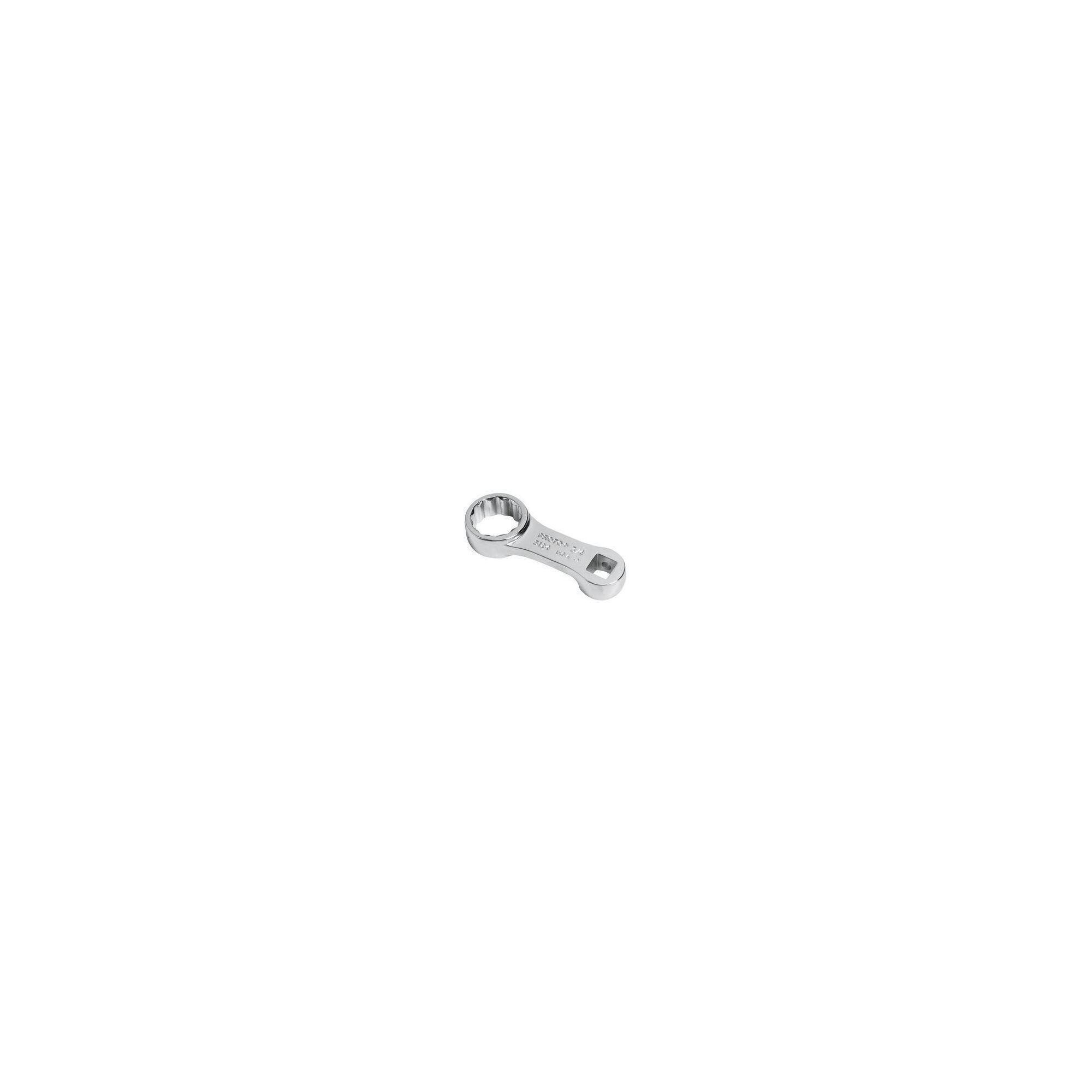

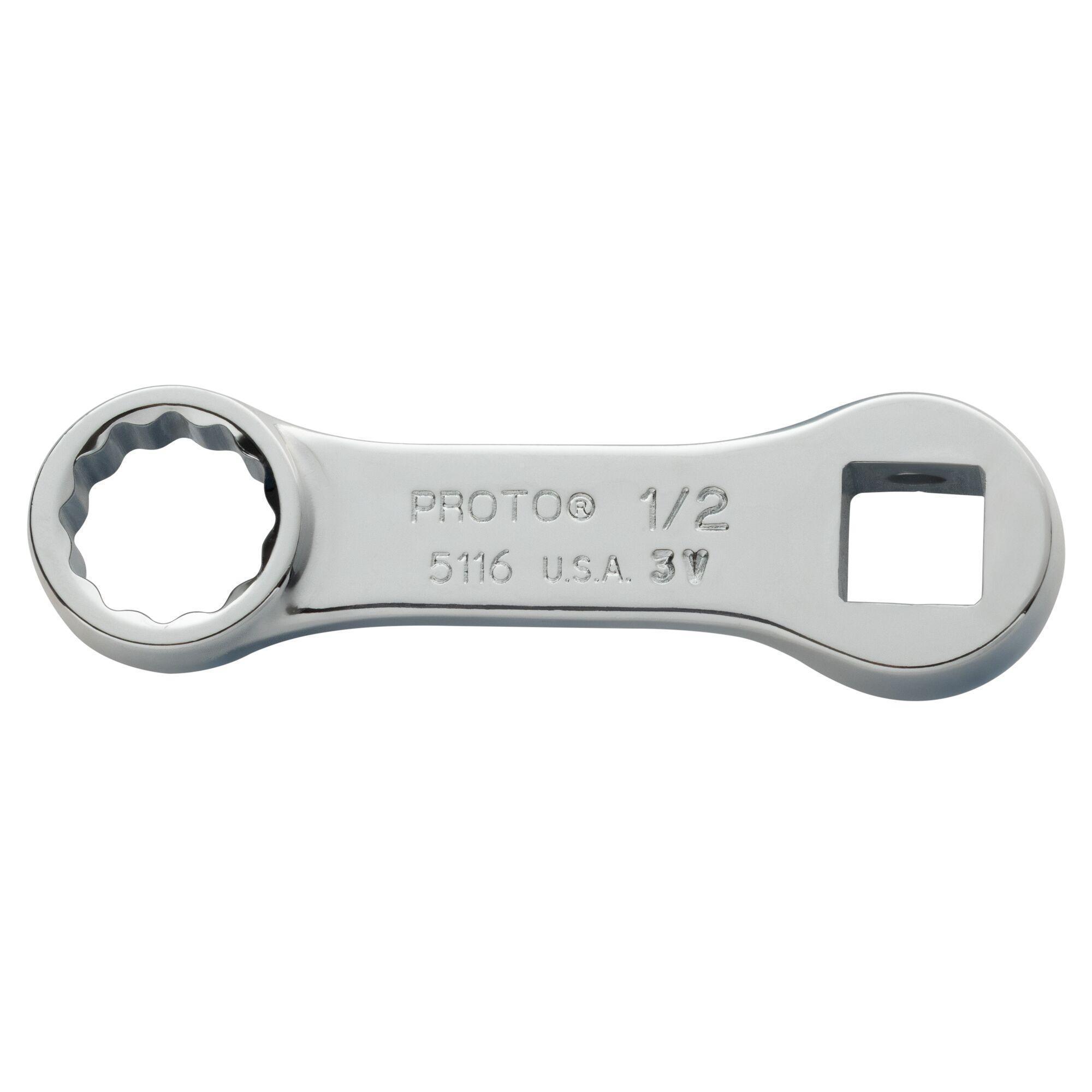

Proto Tools TORQUE ADAPTERS PRO J-5116
Proto® torque adapters are designed with a center-to-center dimension of 2 in. This means that the distance from the center of the square drive of the mating torque wrench to the center of the fasteners is exactly 2 in. This constant dimension serves to simplify the process of calculating the torque applied.
-
BrandProto®
-
UPC662679164584
-
Manufacturer Part NumberJ5116
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialAlloy Steel
-
Wrench Opening1/2 in
-
Wrench Opening TypeImperial
-
Number of Points12
-
Drive Size3/8 in
-
Overall Length2-25/32 in
- Designed for easy torque calibrations
- Adapters measure 2 in from the center of the square drive to the center of the adapter opening
- Special heat treated alloy steel helps to increase strength and durability
- Box end wall thickness is specially engineered to provide strength while still allowing ample room for access to reach difficult fasteners

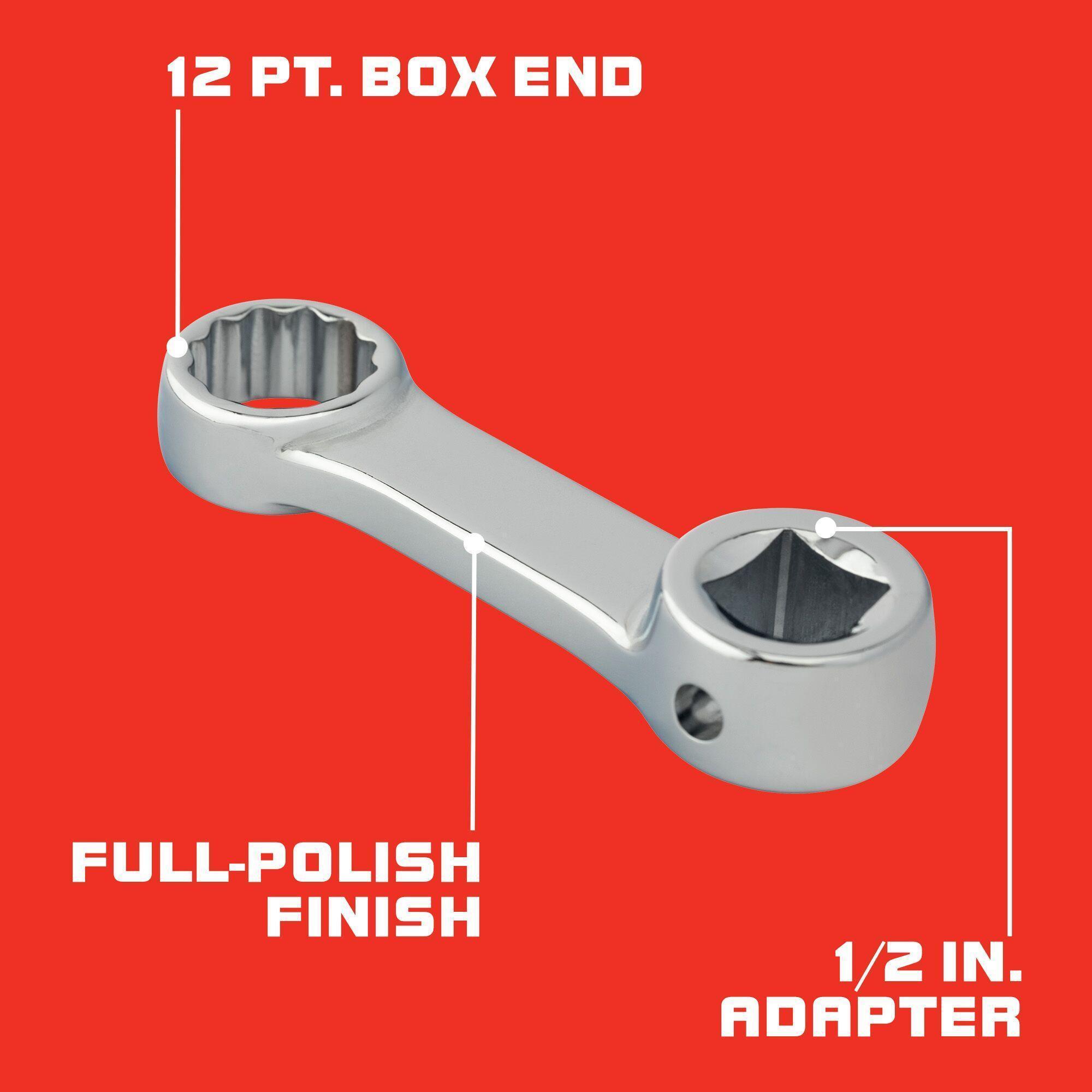

- 12 point box end allows for fine indexing, helping to improve speed and access
- Fits 4, 6 and 12 point fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1Q813 |
-
UNSPSC27111715
-
Package DescriptionEACH
-
Standards/ApprovalsAS954E S3.8.1
-
