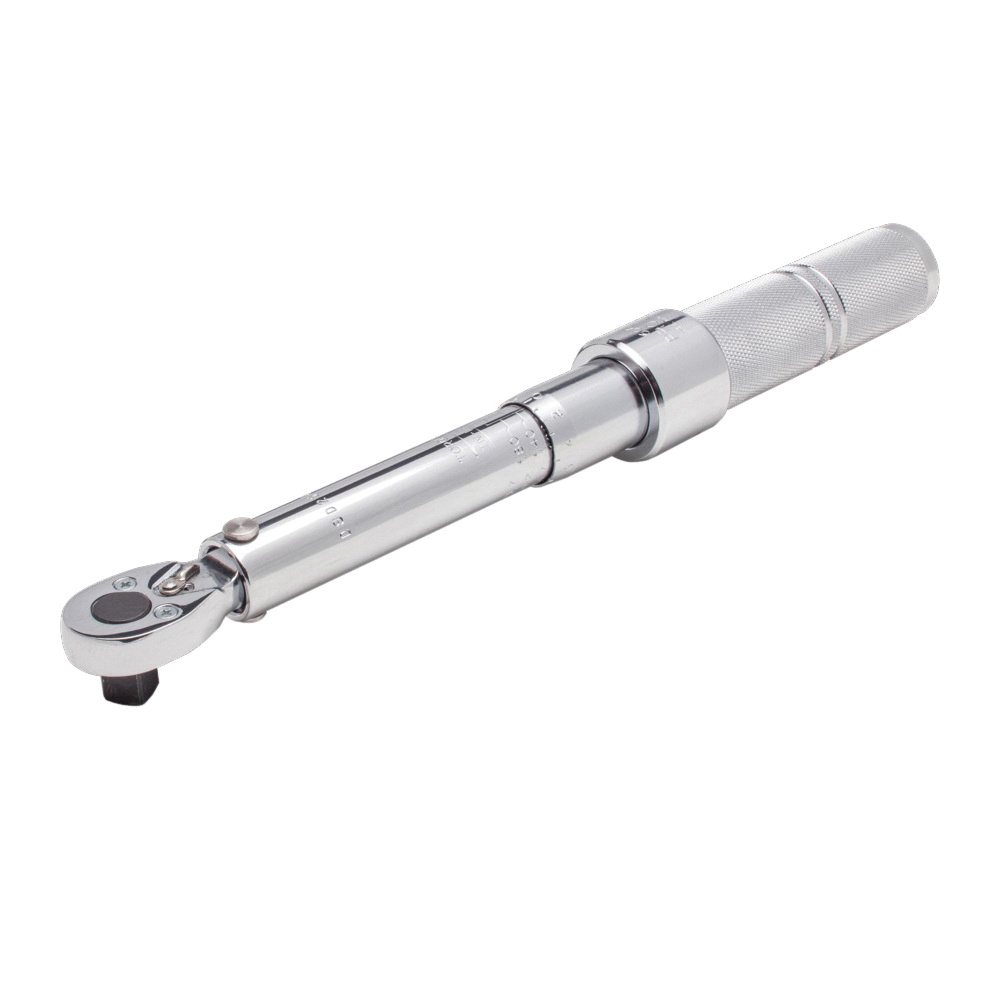

Proto Tools 40-200 BI-DIRECTION TORQUE WRENCH PRO J-6064-C
Proto® J6064C C Series Micrometer Torque Wrench, 3/8 in Drive, 40 to 200 in-lb, Ratcheting Head, 1 in-lb Graduation, 11-7/8 in OAL, ASME B107.14M
-
BrandProto®
-
UPC662679136079
-
Manufacturer Part NumberJ6064C
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialSteel
-
Torque Range40 to 200 in-lb
-
Minimum Number of Cycles50000
-
Graduations1 in-lb
-
Accuracy+/-3% CW, +/-6% CCW
-
Rotation TypeCW/CCW
-
Handle TypeKnurled/Screw-On End Cap
-
Head TypeRatcheting
-
SeriesC Series
-
SettingAutomatic Reset
-
Indicator TypeAudible Click
-
Specifications MetASME B107.14M
-
Drive Size3/8 in
-
Overall Length11-7/8 in
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto® torque wrench is made from high grade steel for strength and durability
- Thin head design to allow access in tight areas
- Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
- For strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4220895 |
-
UNSPSC27111715
-
Standards/ApprovalsASME B107.14M
