Proto Tools 360-1800 1/2"-DR TORQUE WRENCH PRO J-6068-C

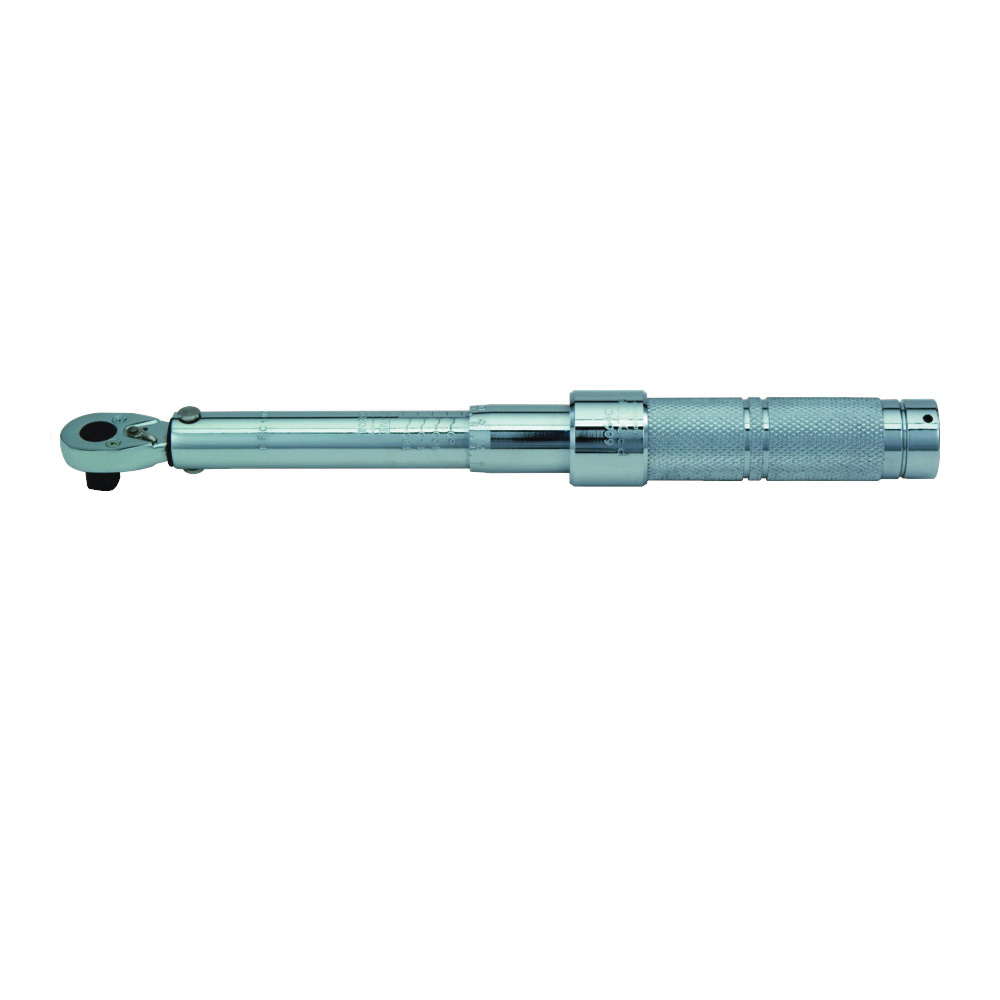

Proto® J6068C C Micrometer Torque Wrench, 1/2 in Drive, Ratcheting Head, 360 to 1800 in-lb, 10 in-lb, 21-1/2 in OAL
-
BrandProto®
-
UPC662679136109
-
Manufacturer Part NumberJ6068C
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialSteel
-
Torque Range360 to 1800 in-lb
-
Minimum Number of Cycles50000
-
Graduations10 in-lb
-
Accuracy+/-3% CW, +/-6% CCW
-
Rotation TypeCW/CCW
-
Handle TypeKnurled/Screw-On End Cap
-
Head TypeRatcheting
-
SeriesC Series
-
SettingAutomatic Reset
-
Indicator TypeAudible Click
-
Specifications MetASME B107.14M
-
Drive Size1/2 in
-
Overall Length21-1/2 in
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4220905 |
-
UNSPSC27111715
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.14M
