Proto Tools 30-MM SPLINE COMBO GEARWRENCHES PRO J-SC-V-M-30

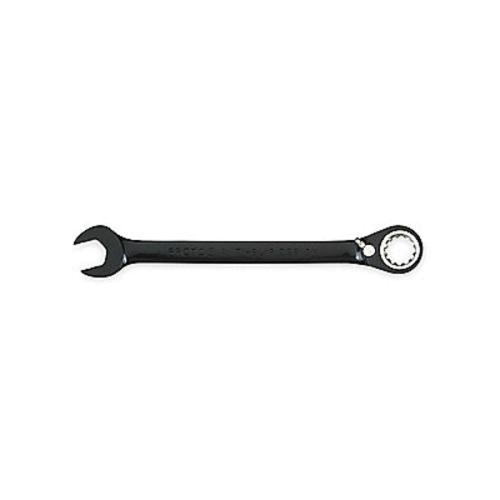

Proto® JSCVM30 Reversible Combination Wrench, 30 mm Wrench, 12 Points, 15 deg Offset, 15-7/8 in OAL, Chrome Vanadium Steel, Polished Chrome/Black, ASME Specified
-
BrandProto®
-
UPC662679972868
-
Manufacturer Part NumberJSCVM30
-
CountryUSA|Canada
-
Finish/CoatingPolished Chrome/Black
-
MaterialChrome Vanadium Steel
-
Measurement SystemMetric
-
TypeReversible
-
Wrench Opening30 mm
-
Number of Geared Teeth72
-
Wrench TypeRatcheting, Spline
-
Number of Points12
-
Specifications MetASME Specified
-
Offset Angle15 deg
-
Open End Thickness5/16 in
-
Open End Width2-5/16 in
-
Overall Length15-7/8 in
-
Box End Thickness5/16 in
-
Box End Width2-19/64 in
- Metric spline wrenches can be used on metric 4, 6, 12 point spline and Torx® fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Black chrome finish is corrosion resistant and visually distinctive
- Box end is countersunk for easy application to the fastener
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
- Chrome vanadium box ends and switch levers provide high strength and durability
- Feature a spline ratcheting end to turn multiple fasteners while helping increase the force applied to the fastener
- Spline tools engage the flats of conventional nut fasteners to move the loads away from the corner of the fastener and transfer them over a broader surface area
- Helps increase the force that can be applied to a fastener
- Helps reduce damage to fasteners, easy to access restricted spaces compared to a socket
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4217940 |
| Berkshire eSupply | KP4217940 |
| Berkshire eSupply | KP4217940 |
| Berkshire eSupply | KP4217940 |
-
UNSPSC27111713
-
Package Description5/BX
-
WarrantyLifetime
