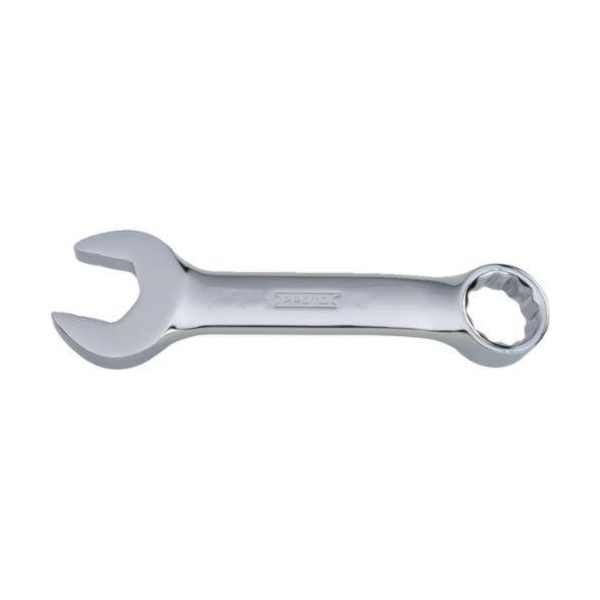

Proto Tools 17-MM 12-PT SHORT COMB/WRENCHES PRO J-1217-M-ES
Proto® TorquePlus™ J1217MES Combination Wrench, 17 mm Wrench, 12 Points, 15 deg Offset, 5-1/16 in OAL, Alloy Steel, Full Polished, ASME B107.100-2010
-
BrandProto®
-
UPC662679115494
-
Manufacturer Part NumberJ1217MES
-
CountryUSA|Canada
-
Finish/CoatingFull Polished
-
MaterialAlloy Steel
-
Throat Depth13/16 in
-
Measurement SystemMetric
-
Handle TypeShort
-
Head Angle15 deg
-
Wrench Opening17 mm
-
Number of Points12
-
Specifications MetASME B107.100-2010
-
Offset Angle15 deg
-
Open End Thickness15/32 in
-
Open End Width1-31/64 in
-
Overall Length5-1/16 in
-
Box End Thickness29/64 in
-
Box End Width1-3/64 in
- 12 point box end allows for fine indexing, helping to improve speed and access, fits 4, 6 and 12 point fasteners
- The wrench self-aligns with the fastener
- The box end is countersunk for easy application to the fastener
- 15 deg angled offset helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Box ends incorporate the TorquePlus™ system
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 426D74 |
-
UNSPSC27111713
-
Package DescriptionEACH
-
