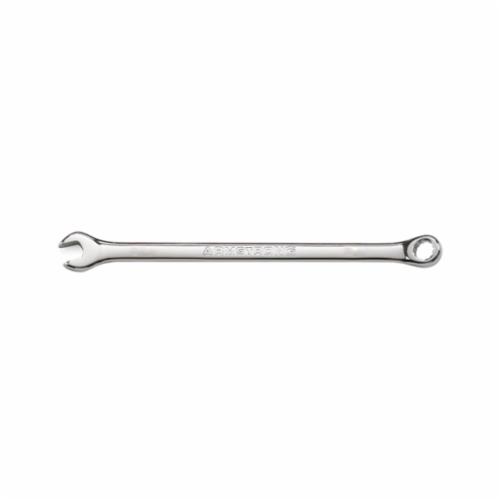

ALLEN TOOLS 52-228 Long Length Open End Combination Wrench, 28 mm, 12 Points, 15 deg Offset, 15-1/2 in OAL, High Alloy Steel, Polished Chrome, ASME B107.9M-1994
-
BrandArmstrong®
-
UPC781412522280
-
Manufacturer Part Number52-228
-
CountryUSA
-
Finish/CoatingPolished Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemMetric
-
TypeLong Length Open End
-
Wrench Opening28 mm
-
Number of Points12
-
Specifications MetASME B107.9M-1994
-
Offset Angle15 deg
-
Open End Thickness0.469 in
-
Open End Width2.28 in
-
Overall Length15-1/2 in
-
Box End Thickness0.681 in
-
Box End Width1.618 in
- Box ends incorporate a radius corner design that engages the flats of the fastener, not the corners, providing up to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- Box ends are offset a true 15 deg for clearing obstructions and knuckle clearance on flat surfaces
- The shank to box end transition area is also reinforced to provide greater strength
- Open end has a radius design for greater strength, especially when compared to a hex open end
- Large size stamp on both sides of the wrench for ease in identification
- Full polish chrome finish provides smooth edges with a high luster
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5UN50 |
-
UNSPSC27111713
-
Standards/ApprovalsASME B107.9M-1994
