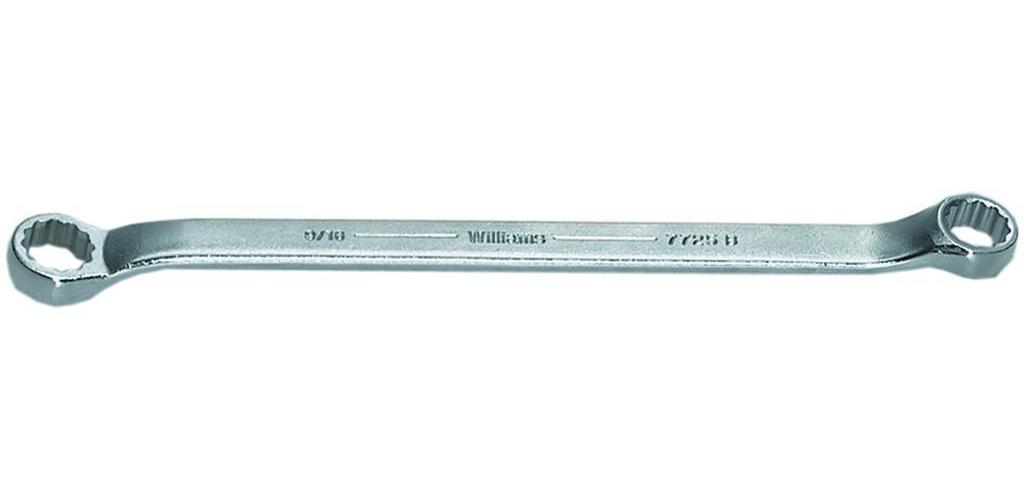

Williams® JHW7039B SUPERTORQUE® Double Headed Box End Wrench, 1-1/4 x 1-5/16 in Wrench, 12 Points, 10 deg Offset, 17-5/8 in OAL, Satin Chrome
Williams® JHW7039B SUPERTORQUE® Double Headed Box End Wrench, 1-1/4 x 1-5/16 in Wrench, 12 Points, 10 deg Offset, 17-5/8 in OAL, Satin Chrome
-
BrandWilliams®
-
UPC662459103383
-
Manufacturer Part NumberJHW7039B
-
CountryUSA|Canada
-
Finish/CoatingSatin Chrome
-
Measurement SystemImperial
-
TypeDouble Headed
-
Handle TypeFlat
-
SeriesSUPERTORQUE®
-
Wrench Opening1-1/4 x 1-5/16 in
-
Wrench TypeOffset
-
Number of Points12
-
Offset Angle10 deg
-

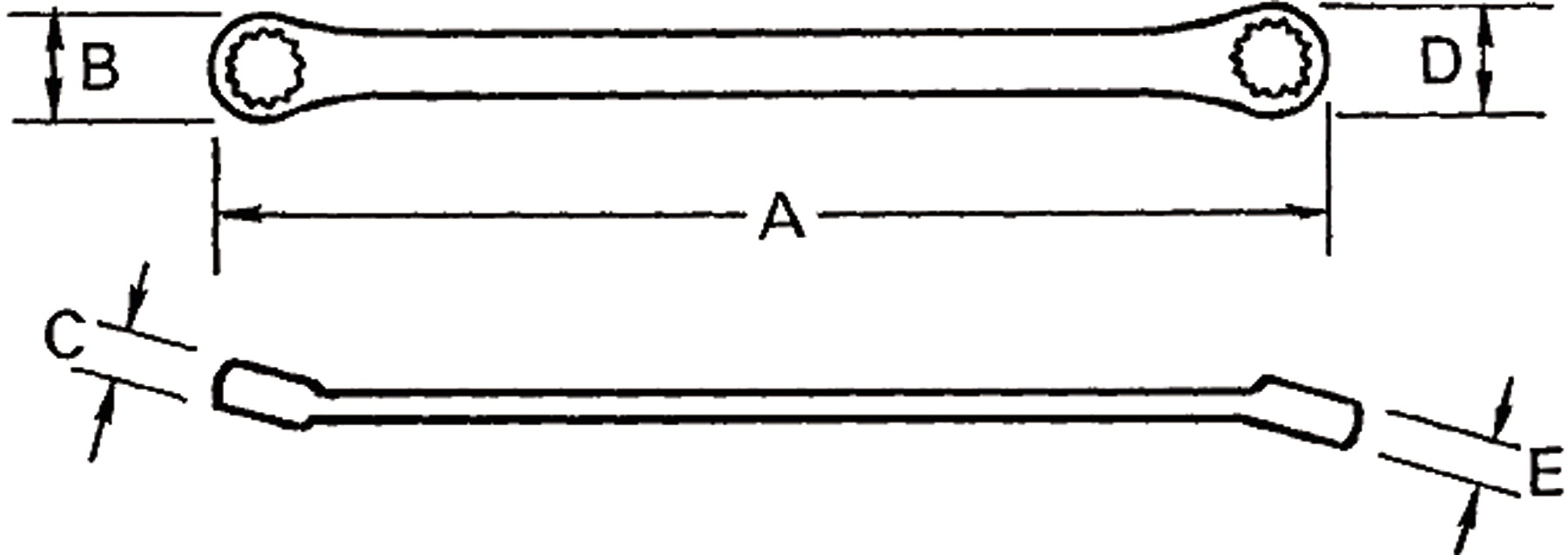

Overall Length17-5/8 in
-
Box End Thickness23/32 x 3/4 in
-
Box End Width1-25/32 x 1-27/32 in
- SuperTorque box opening design allows application of higher torque without rounding or deforming hex fastener points
- No contact is made at the corners
- Instead, wrenching forces are placed on the flat surfaces behind the points
- Sizes are clearly marked on handle ends
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 921060108 |
-
Alternative Part Number7039B
-
UNSPSC27111705
-
Standards/ApprovalsFed Spec ANSI B107.6|CSA Approved
-
WarrantyLimited
-
