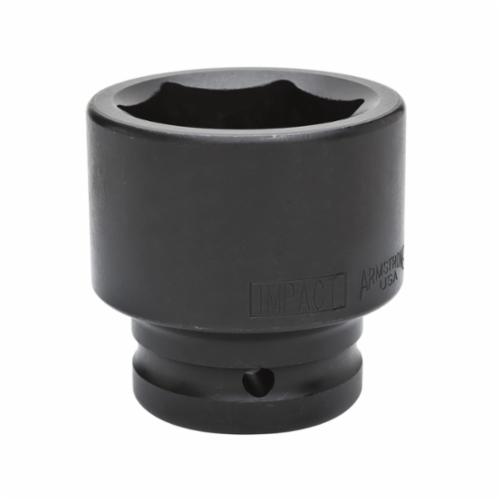

Armstrong® 22-076 Standard Length Socket, 1 in Square Drive, 2-3/8 in, 6 Points
Armstrong® 22-076 Standard Length Socket, 1 in Square Drive, 2-3/8 in, 6 Points
-
BrandArmstrong®
-
UPC781412220766
-
Manufacturer Part Number22-076
-
CountryUSA
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width3-1/2 in
-
Socket Size2-3/8 in
-
Opening Depth1.312 in
-
Drive End Width2-3/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth1.578 in
-
Overall Length3.312 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 93607760 |
-
UNSPSC27112828
-
Package Description1/SHELF PK
-
Standards/ApprovalsASME B107.2-2002|US Federal Specification GGG-W-660A
-
