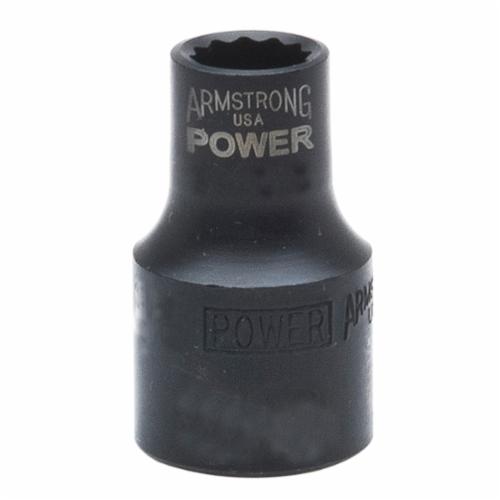

Armstrong® 20-114 Standard Length Socket, 1/2 in Square Drive, 7/16 in Power Socket, 12 Points
Armstrong® 20-114 Standard Length Socket, 1/2 in Square Drive, 7/16 in Power Socket, 12 Points
-
BrandArmstrong®
-
UPC781412201147
-
Manufacturer Part Number20-114
-
CountryUSA
-
Locking TypePin
-
FinishIndustrial Black Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points12
-
Socket End Width0.67 in
-
Socket Size7/16 in
-
Socket TypePower
-
Opening Depth0.4 in
-
Drive End Width0.86 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth0.29 in
-
Overall Length1.485 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Unique socket retention method, cold form ball recess, provides consistent secure retention of the socket to the drive tool eliminating the possibility of either a loose fit or tight fit
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
- Black oxide industrial finish eliminates chance of foreign object damage and contamination in critical environments
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 93606283 |
-
UNSPSC27111704
-
Standards/ApprovalsASME B107.1-2002|US Federal Specification GGG-W-641 E
