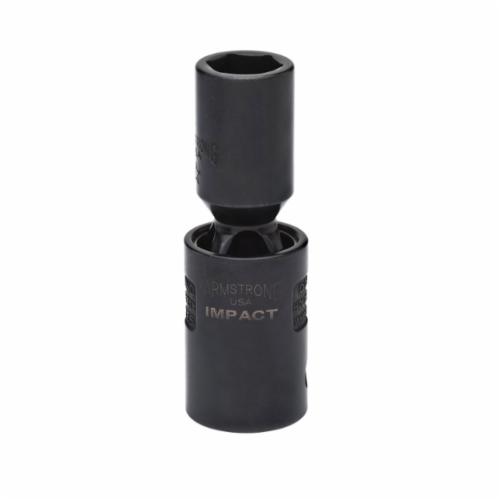

Armstrong® MAXX™ 20-570 Standard Length Universal Socket, 1/2 in Square Drive, 5/8 in, 6 Points
Armstrong® MAXX™ 20-570 Standard Length Universal Socket, 1/2 in Square Drive, 5/8 in, 6 Points
-
BrandArmstrong®
-
UPC781412205701
-
Manufacturer Part Number20-570
-
CountryUSA
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length Universal
-
Impact RatedYes
-
Number of Points6
-
Socket End Width0.906 in
-
Socket Size5/8 in
-
Opening Depth0.984 in
-
Drive End Width0.969 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth0.984 in
-
Overall Length2.812 in
- Unique pinless "4 lug" design for strength, durability and safety
- True 360 deg rotation of the socket end for extended range of motion and smooth operation
- Reversed ball design allows for a smaller socket end for access to restricted fasteners
- Maximum operation angle of 30 deg
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5UD87 |
-
UNSPSC27112828
-
Package Description1/SHELF PK
-
Standards/ApprovalsASME B107.2-2002|US Federal Specification GGG-W-660A
