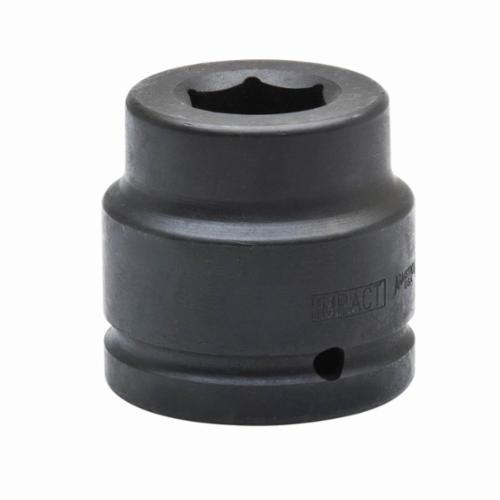

Armstrong® 23-060D Standard Length Socket, 1-1/2 in Square Drive, 1-7/8 in, 6 Points
Armstrong® 23-060D Standard Length Socket, 1-1/2 in Square Drive, 1-7/8 in, 6 Points
-
BrandArmstrong®
-
UPC781412230604
-
Manufacturer Part Number23-060D
-
CountryUSA
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width3-1/8 in
-
Socket Size1-7/8 in
-
Opening Depth1-1/4 in
-
Drive End Width3-1/4 in
-
Drive Size1-1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth1.328 in
-
Overall Length3-1/2 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
-
UNSPSC27112828
-
Package Description1/SHELF PK
-
Standards/ApprovalsASME B107.2-2002|US Federal Spec GGG-W-660A
-
