Proto Tools 30-MM 6-PT 3/4"-DR IMPACT SOCKETS PRO J-07530-M

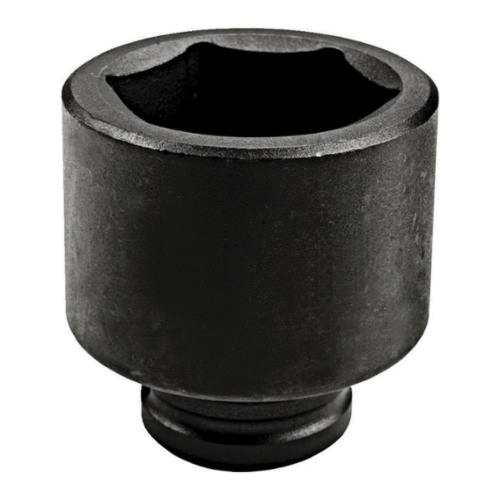

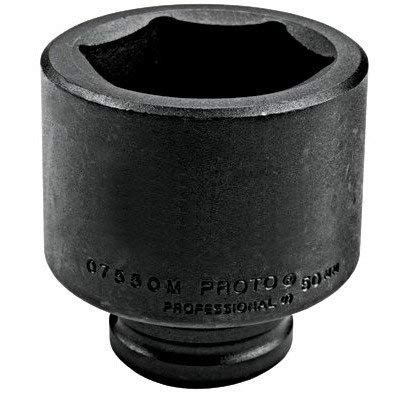

Proto® TorquePlus™ J07530M Standard Length Socket, Metric, 3/4 in Square Drive, 30 mm
-
BrandProto®
-
UPC662679360986
-
Manufacturer Part NumberJ07530M
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width47.6 mm
-
Socket Size30 mm
-
Opening Depth27.1 mm
-
Drive End Width44.4 mm
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth27.1 mm
-
Overall Length55.4 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Stamped size for easy reference
- Specially heat treated for the correct balance of strength and durability
- Concentric openings
- Large clearance holes
- Tight nut end tolerances
- Made from high alloy steel for greater strength
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1ACK4 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.33M
