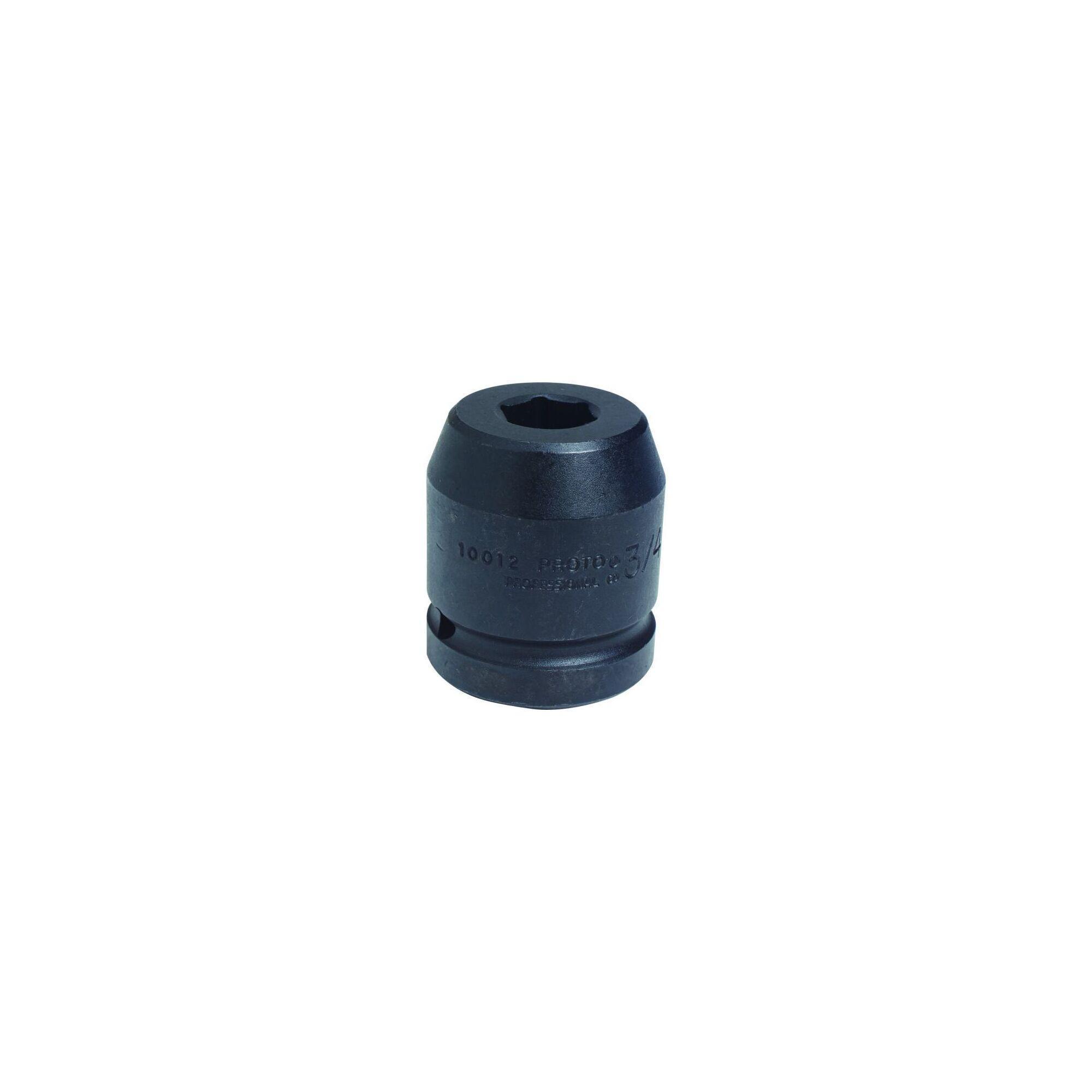

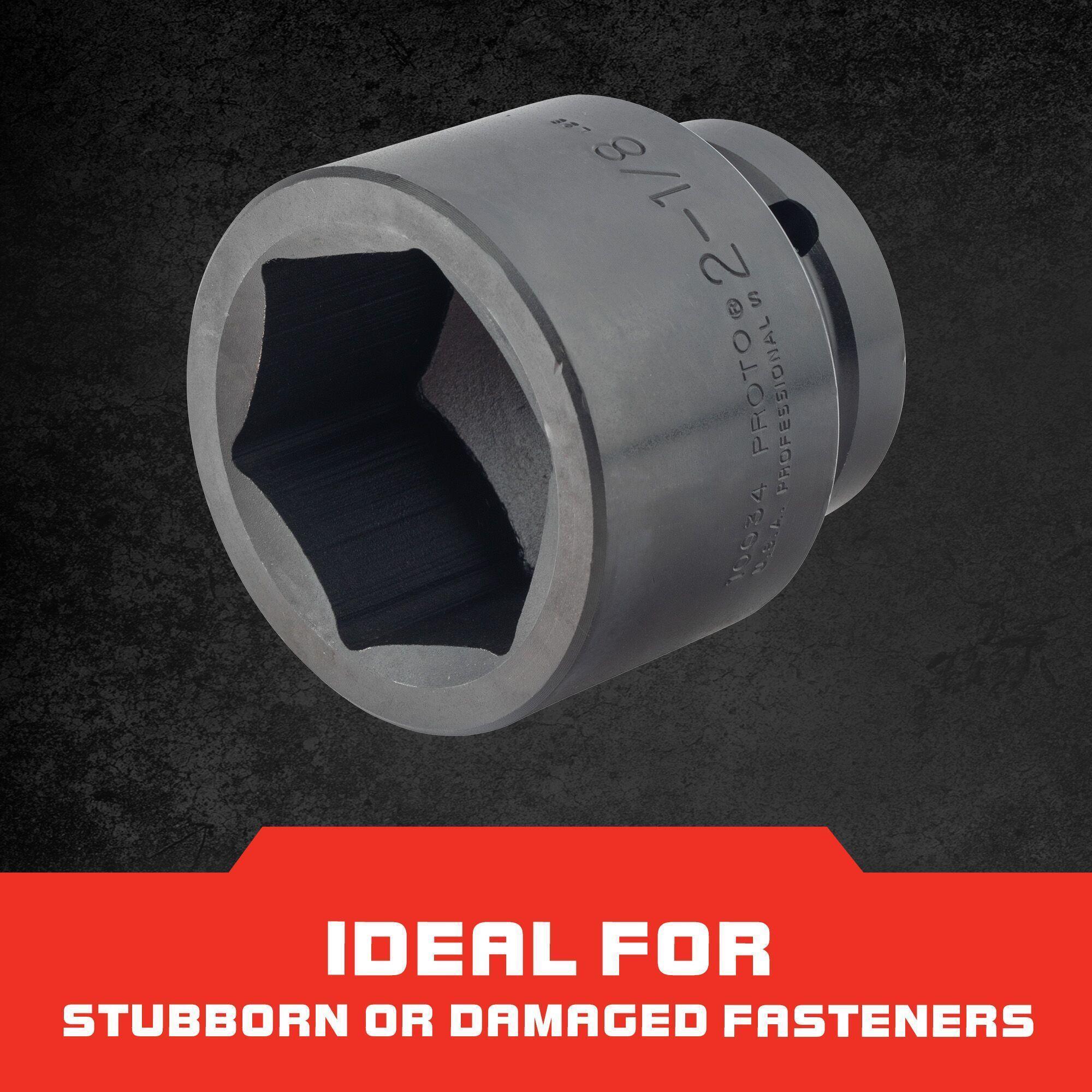

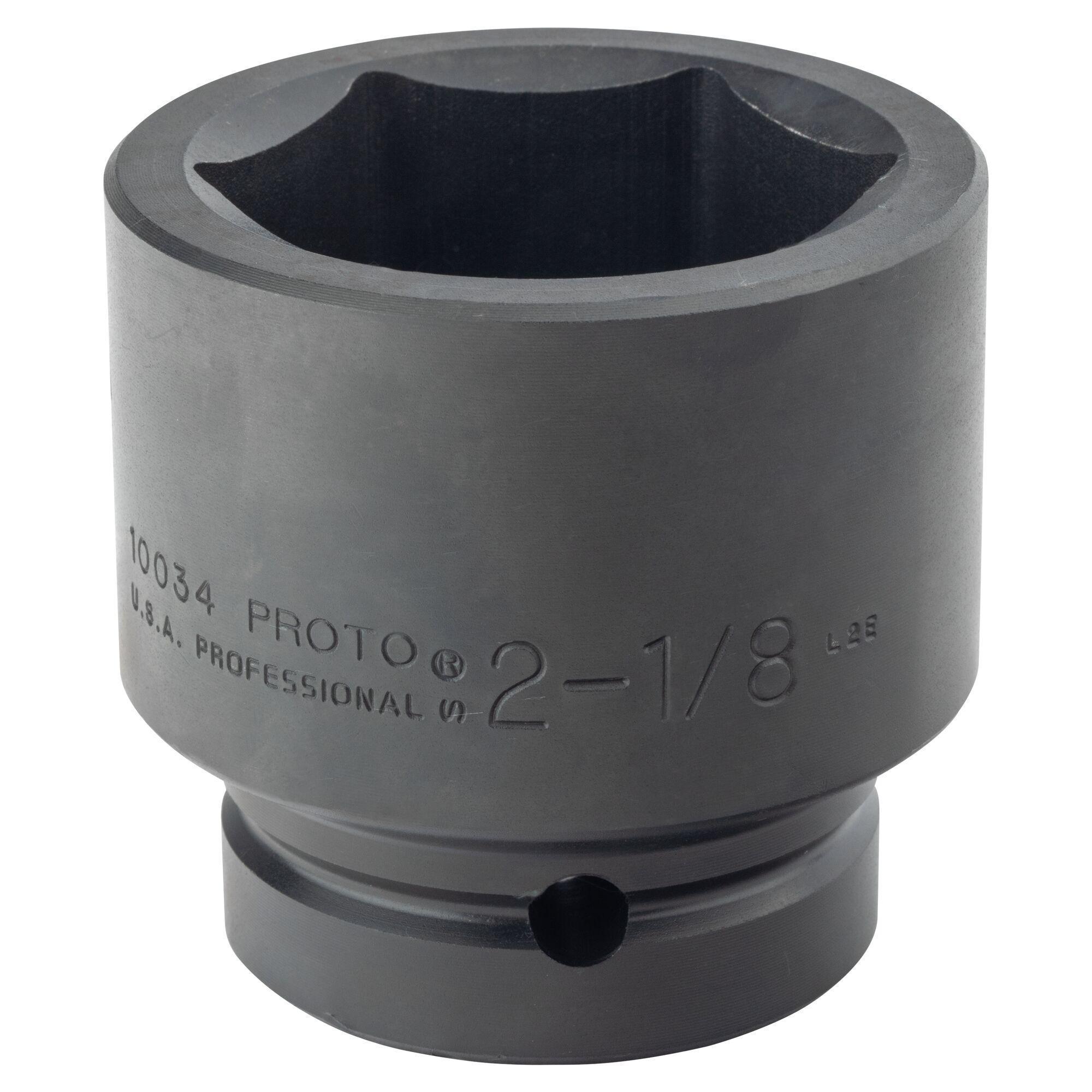

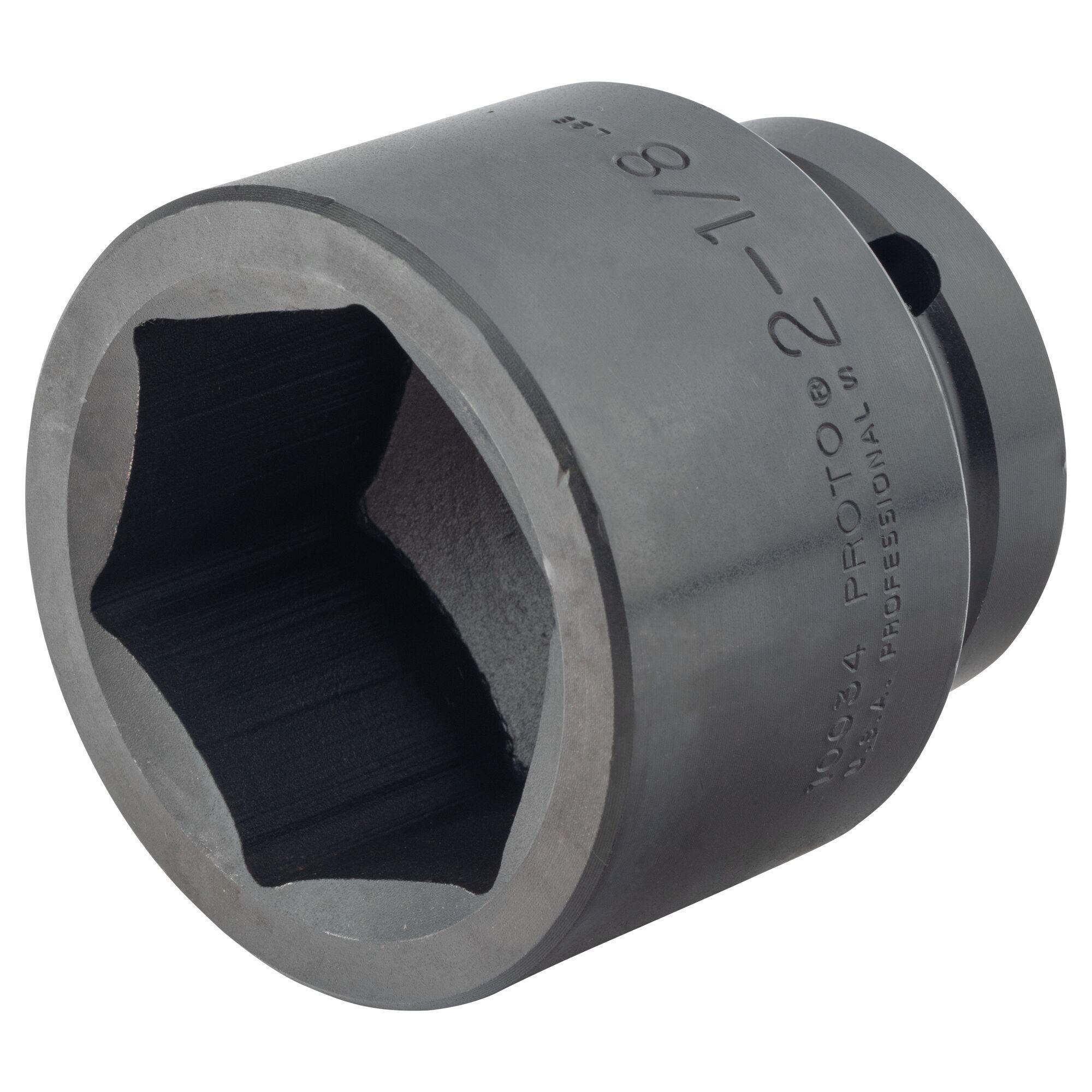

Proto Tools 2-1/8" 6-PT 1"-DRIVE IMPACT SOCKET PRO J-10034
Proto® TorquePlus™ J10034 Standard Length Socket, Imperial, 1 in Square Drive, 2-1/8 in
-
BrandProto®
-
UPC662679370695
-
Manufacturer Part NumberJ10034
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width3-1/8 in
-
Socket Size2-1/8 in
-
Opening Depth1-3/8 in
-
Drive End Width2-3/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-9/16 in
-
Overall Length3-3/32 in

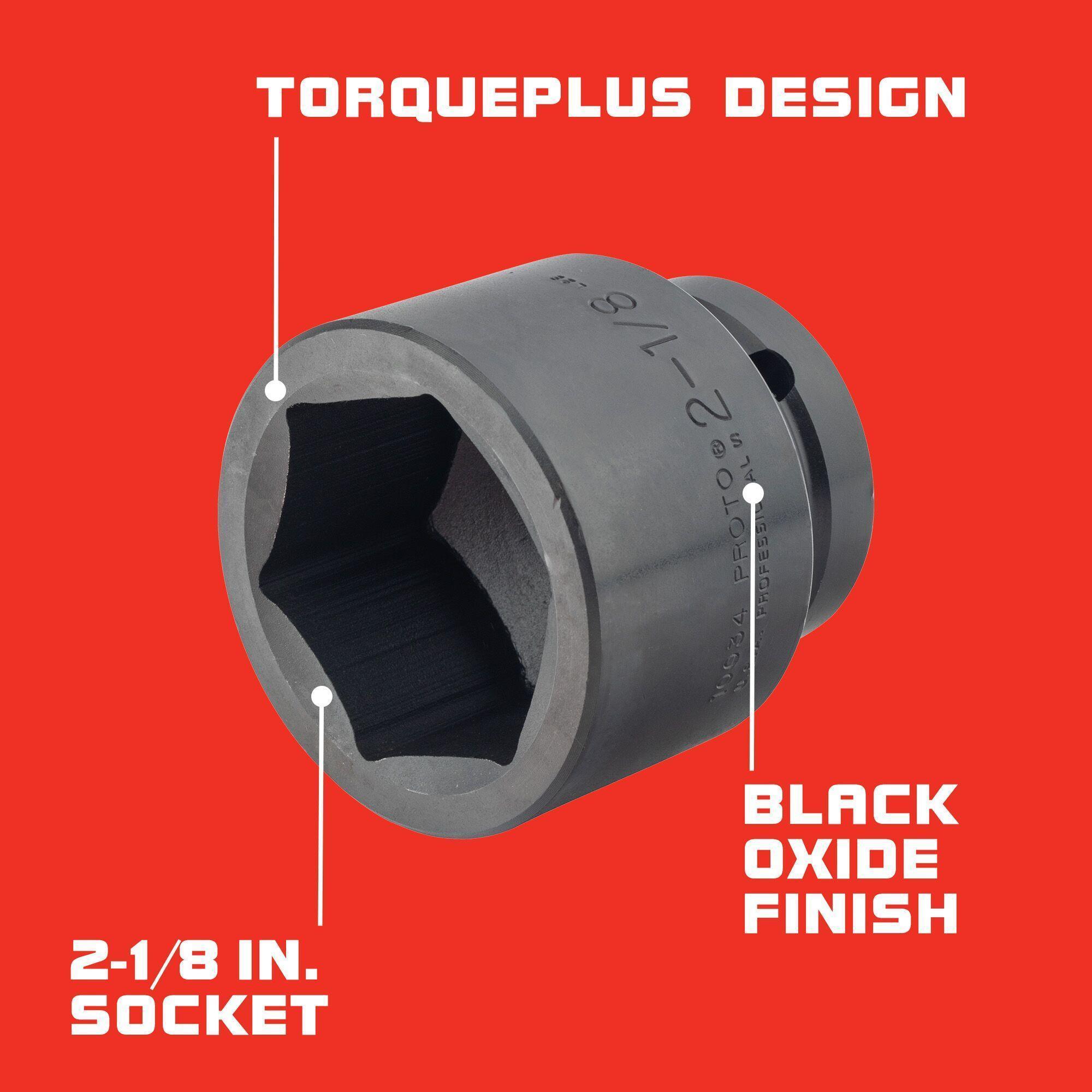

- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1AFF4 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.2
-
