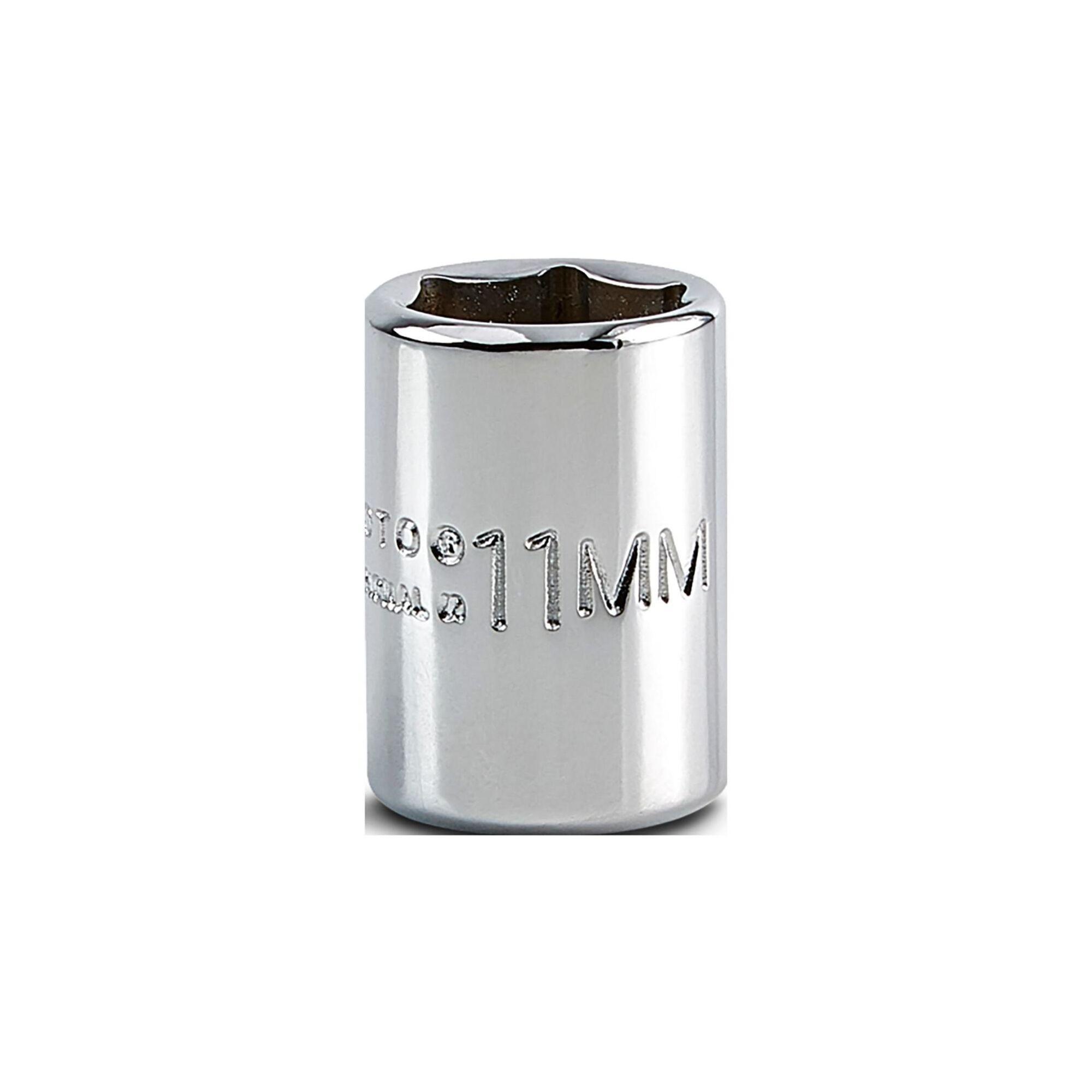

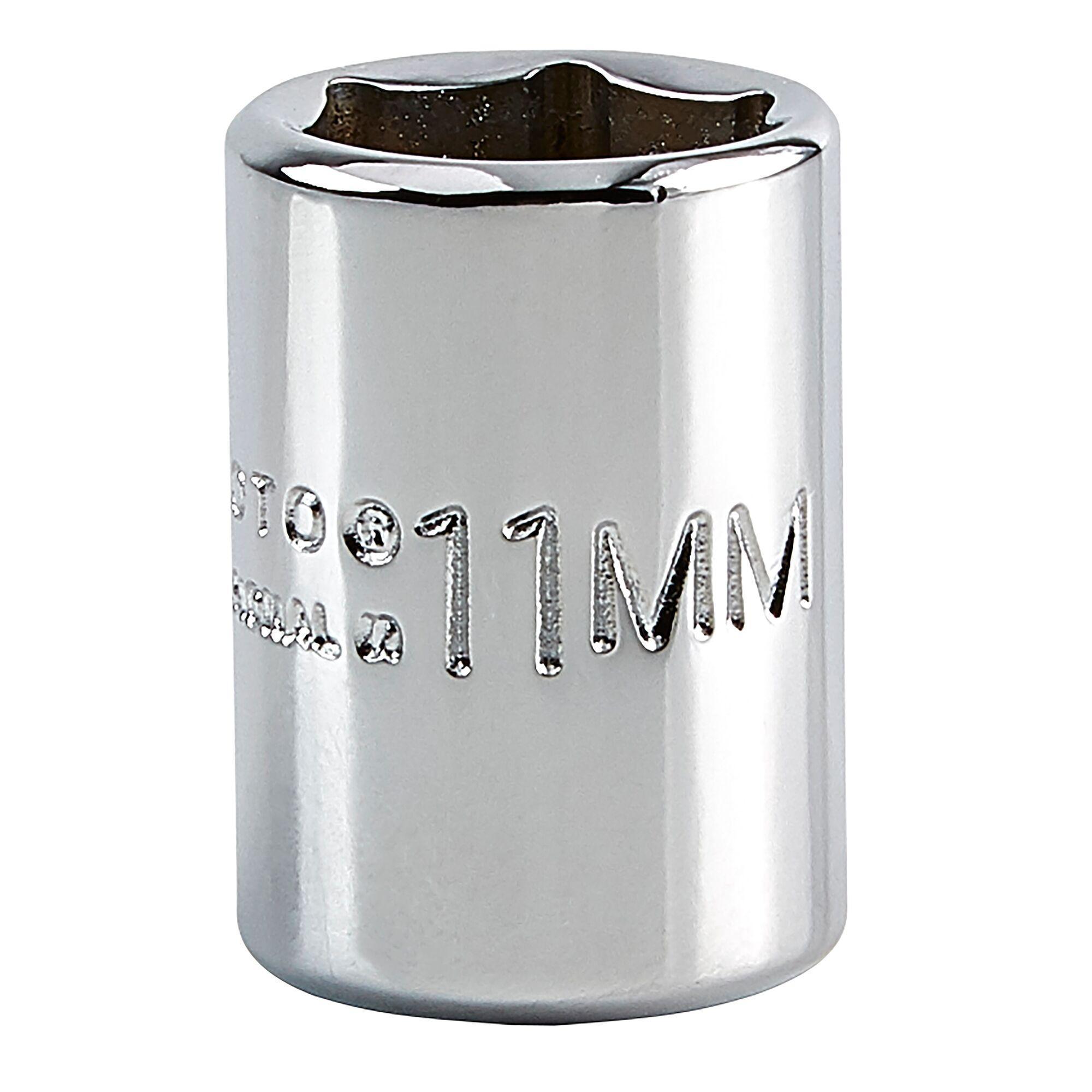

Proto Tools 11-MM 6-PT 1/4"-DRIVE SOCKETS PRO J-4711-M
Proto® TorquePlus™ J4711M Standard Length Socket, Metric, 1/4 in Square Drive, 11 mm
-
BrandProto®
-
UPC662679140458
-
Manufacturer Part NumberJ4711M
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points6
-
Socket End Width15.8 mm
-
Socket Size11 mm
-
Opening Depth9 mm
-
Drive End Width15.8 mm
-
Drive Size1/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth13.7 mm
-
Overall Length22.2 mm
- Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4201800 |
-
Alternative Part Number16726907
-
UNSPSC27111704
-
IDEA Index ID16726907
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.5M
-
