Proto Tools 28-MM 12-PT 1/2"-DRIVE SOCKETS PRO J-5428-M

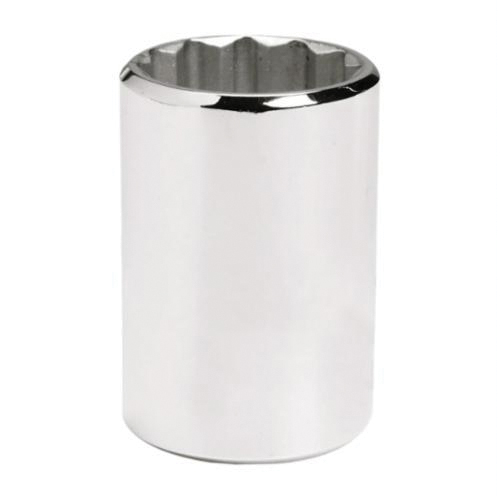

Proto® TorquePlus™ J5428M Standard Length Socket, Metric, 1/2 in Square Drive, 28 mm
-
BrandProto®
-
UPC662679180867
-
Manufacturer Part NumberJ5428M
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width37.7 mm
-
Socket Size28 mm
-
Opening Depth25 mm
-
Drive End Width37.7 mm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth29.2 mm
-
Overall Length45.2 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 429R64 |
| Grainger | 429R64 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.5M|AS954E S3.8.1
-
