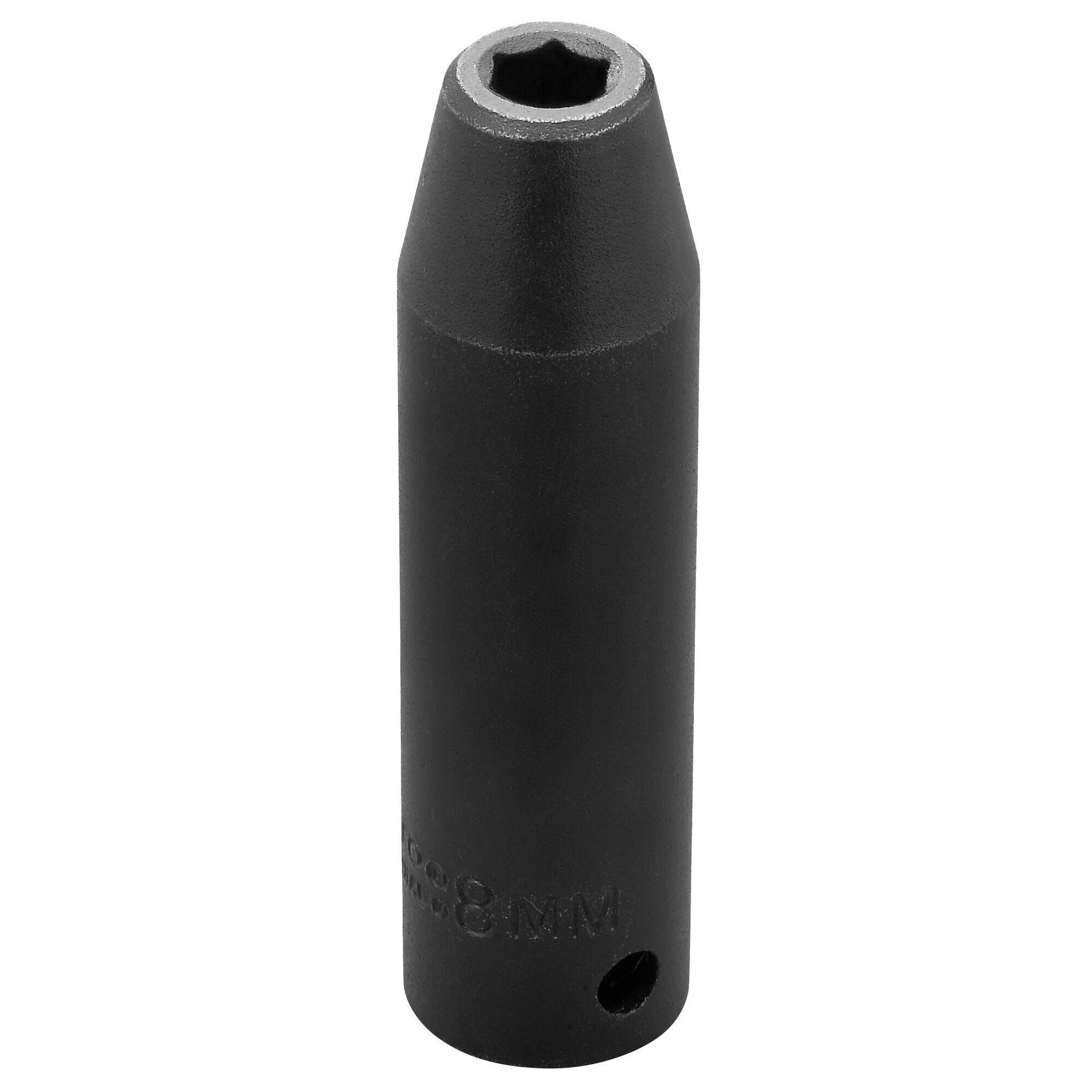

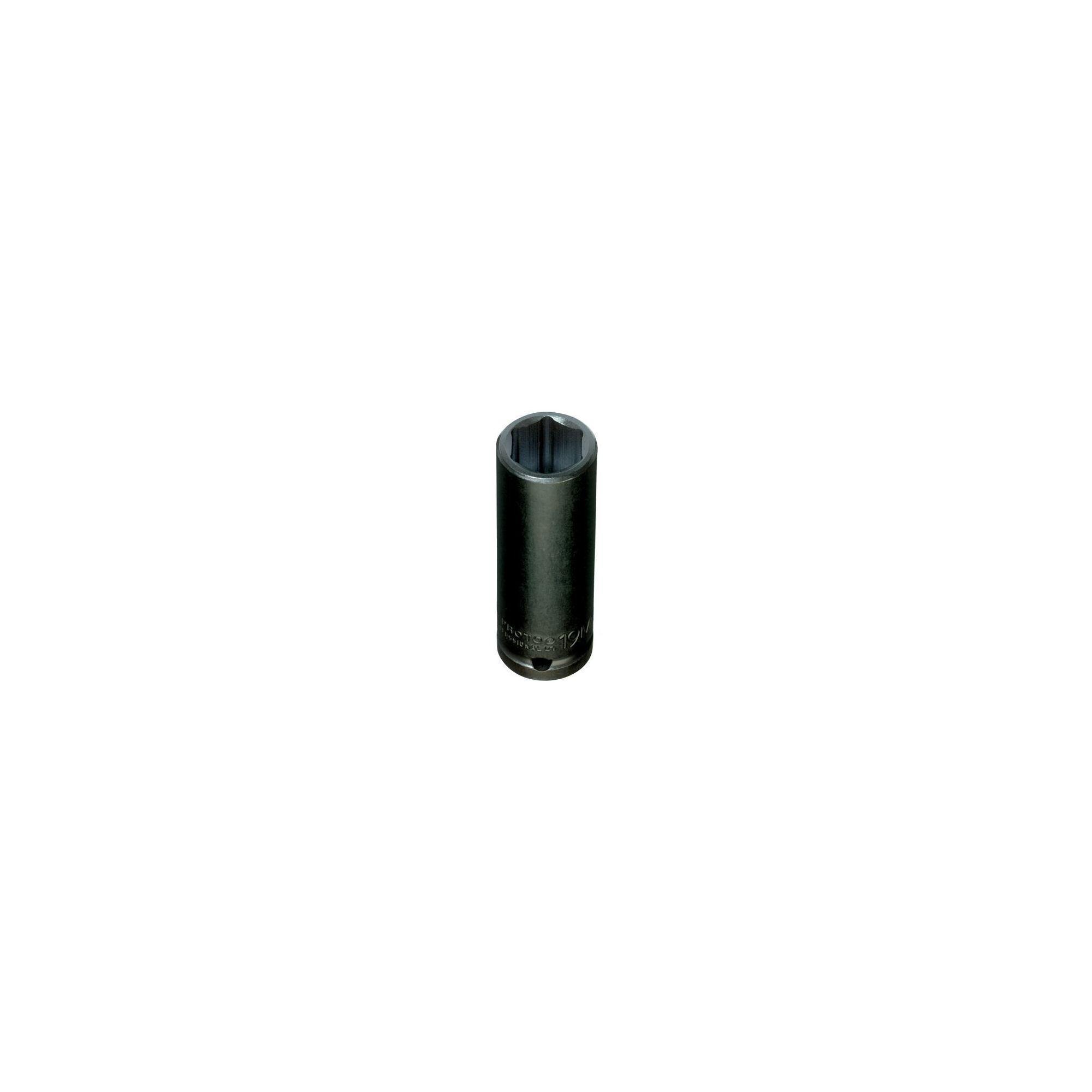

Proto Tools 8-MM 6-PT 3/8"-DR DEEP I/SOCKETS PRO J-7308-M
Proto® TorquePlus™ J7308M Deep Length Socket, Metric, 1/2 in Square Drive, 8 mm
-
BrandProto®
-
UPC662679340230
-
Manufacturer Part NumberJ7308M
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeDeep Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width14.5 mm
-
Socket Size8 mm
-
Opening Depth8.1 mm
-
Drive End Width22.1 mm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth65.8 mm
-
Overall Length82.6 mm
- Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- Socket size stamped on tool for easy identification
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1AW74 |
| Grainger | 1AW74 |
-
Alternative Part Number16729276
-
UNSPSC27111704
-
IDEA Index ID16729276
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.33M
-
