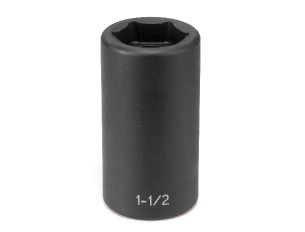

5048-DB GREY PNEUMATIC 1-1/2" 6-PT BUDD IMP #5 SPLINE DR
The Grey Pneumatic 5048DB (MPN: GRY-5048DB) is a specialized heavy-duty impact socket designed for servicing outer cap nuts on Budd-style truck wheels. It features a #5 Spline drive and a 1-1/2" hex limited-depth opening to prevent accidental contact and damage to the wheel or inner cap nut.
Recently Viewed
The Grey Pneumatic 5048DB (MPN: GRY-5048DB) is a specialized heavy-duty impact socket designed for servicing outer cap nuts on Budd-style truck wheels. It features a #5 Spline drive and a 1-1/2" hex limited-depth opening to prevent accidental contact and damage to the wheel or inner cap nut.
Grey Pneumatic Corporation 4056XD | Socket 1" Drive X 1-3/4" Extra-Deep Impact
A special 1-3/4" extra deep impact socket for applications where a deep impact socket will not reach the fastener.
"Grey Pneumatic through our distributors supplies the worlds automotive, industrial, assembly, mining, maintenance, construction, and energy industries with heavy duty, high quality impact and specialty sockets. We carry a complete line of Impact Socket sets and individuals from 1/4"" drive thru 2-1/2"" and #5 spline drive with hex sizes up to 8"".
We also offer a large selection of star impact drivers, impact hex drivers, triple square drivers, torque limiting extensions plus Impact chisels and accessories. GP sockets and tools are made in Taiwan using the highest quality chrome-molybdenum alloy steel and state-of-the-art manufacturing processes and equipment. Thorough and exact heat treatment, as well as rigid quality control, ensures the correct balance of strength and durability to deliver outstanding performance at the most competitive cost.
GP Tools are available through Automotive and Industrial warehouse distributors, tool stores, mobile tool truck dealers, tire equipment and supply warehouses and other sources that service these markets. GP offers Fast and Reliable service to all of our distributors and their customers."
Impact Socket
Type High Torque, 6-Point, Extra Deep Length, SAE Fractional, Hex
Drive End Size 1 Inch
Socket End Size 1-3/4 Inch
Outside Diameter 2.6 Inch
Overall Length 4.72 Inch
Material Chrome-Molybdenum Alloy Steel
Bolt Clearance Depth 3.54 Inch
Socket Depth 2.91 Inch
Application Automotive, Industrial, Assembly, Mining, Maintenance, Construction and Energy Industry
Packaging Type Poly Bag with Barcode
+4 The Grey Pneumatic 4053M is a 1-inch drive, 53mm metric impact socket designed for heavy-duty commercial and automotive use. It features a 6-point, standard-length design crafted from high-quality alloy steel, engineered to efficiently transfer torque to stubborn fasteners without rounding corners. Specs & Dimensions Drive Size: 1 inch Socket Size: 53mmLength Profile: Standard (Short)Overall Length: 70mmPoints: 6-pointWeight: 2.48 lbs Diameter: 75mm drive end, 58mm nut end
The Grey Pneumatic 4235MC is a heavy-duty 1" drive combination Budd wheel impact socket. It is a highly specialized automotive tool engineered explicitly for removing and installing Budd-type wheel fasteners commonly found on large trucks, buses, and trailers. Key Technical Specifications Drive Size: 1" square drive (built for high-torque 1" impact wrenches). Socket Dimensions: 35mm x 17mm square. Design Feature: It features a dual-opening combination design. The 35mm opening handles the outer hex nut, while the integrated 17mm square opening grabs the inner square stud, eliminating the need to constantly switch between two separate sockets. Material: Forged from premium high-quality Chrome-Molybdenum (Cr-Mo) alloy steel. It is fully heat-treated to safely withstand the massive, repeated torque loads of industrial air impact tools. Weight: Approximately 2.19 lbs.
Grey Pneumatic 52Mm X 6 Point Short 1" Drive Impact Socket
The Grey Pneumatic 3/4" Dr. 26 Piece Metric Master Set - 12 Point (8126M) is a comprehensive set of metric sockets designed for professional and industrial use. This set includes 26 high-quality sockets, each with a 12-point design and a 3/4" drive. The sockets range in size from 19mm to 50mm, making them suitable for a variety of tasks.
KEY FEATURES AND BENEFITS:
Durable Construction: Made from high-quality chrome vanadium steel, ensuring long-lasting performance and resistance to wear and tear.
12-Point Sockets: The 12-point design provides greater flexibility and access in tight spaces.
Comprehensive Size Range: The set includes a wide range of socket sizes to meet various needs.
Convenient Storage: The metal storage case provides secure and organized storage for the sockets.
Lifetime Warranty: Backed by a lifetime warranty from Grey Pneumatic, offering peace of mind and customer satisfaction.
SPECIFICATIONS:
Set Contains: 26 pieces
Drive: 3/4"
Socket Sizes: 19mm to 50mm
Socket Type: 12-point
Storage Case: Metal
Weight: 37.8 lbs.
