4056-XD GREY PNEUMATIC 1-3/4" 6-PT 1"-DR X-DEEP I/SOCKETS

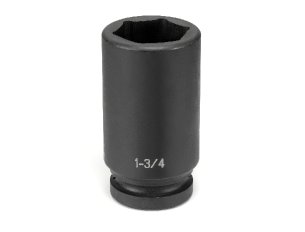

Grey Pneumatic Corporation 4056XD | Socket 1" Drive X 1-3/4" Extra-Deep Impact
A special 1-3/4" extra deep impact socket for applications where a deep impact socket will not reach the fastener.
"Grey Pneumatic through our distributors supplies the worlds automotive, industrial, assembly, mining, maintenance, construction, and energy industries with heavy duty, high quality impact and specialty sockets. We carry a complete line of Impact Socket sets and individuals from 1/4"" drive thru 2-1/2"" and #5 spline drive with hex sizes up to 8"".
We also offer a large selection of star impact drivers, impact hex drivers, triple square drivers, torque limiting extensions plus Impact chisels and accessories. GP sockets and tools are made in Taiwan using the highest quality chrome-molybdenum alloy steel and state-of-the-art manufacturing processes and equipment. Thorough and exact heat treatment, as well as rigid quality control, ensures the correct balance of strength and durability to deliver outstanding performance at the most competitive cost.
GP Tools are available through Automotive and Industrial warehouse distributors, tool stores, mobile tool truck dealers, tire equipment and supply warehouses and other sources that service these markets. GP offers Fast and Reliable service to all of our distributors and their customers."
Impact Socket
Type High Torque, 6-Point, Extra Deep Length, SAE Fractional, Hex
Drive End Size 1 Inch
Socket End Size 1-3/4 Inch
Outside Diameter 2.6 Inch
Overall Length 4.72 Inch
Material Chrome-Molybdenum Alloy Steel
Bolt Clearance Depth 3.54 Inch
Socket Depth 2.91 Inch
Application Automotive, Industrial, Assembly, Mining, Maintenance, Construction and Energy Industry
Packaging Type Poly Bag with Barcode
