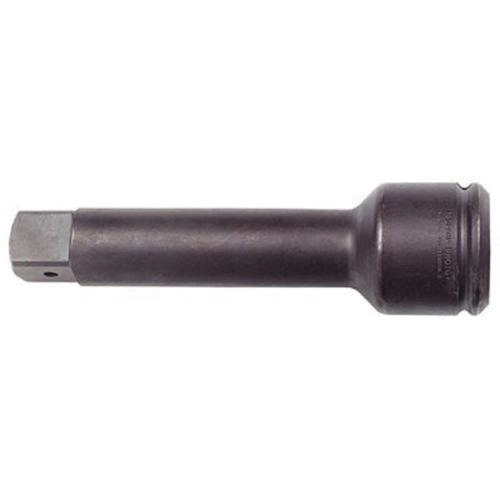

Proto Tools 1-1/2"-DRIVE X 6" SOCKET EXTENSION PRO J-15097-P
Proto® J15097P Socket Extension, 1-1/2 in Square Drive, 8 in OAL
-
BrandProto®
-
UPC662679381110
-
Manufacturer Part NumberJ15097P
-
CountryUSA|Canada
-
Locking TypePin
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
Impact RatedYes
-
Drive Size1-1/2 in
-
Drive TypeSquare
-
Overall Length8 in
- Use extensions to gain access to fasteners in locations that would otherwise be difficult to reach
- Male square is oriented inline with female squares for use with fixed head torque wrenches
- Full chamfer at drive opening for easy engagement with drive tools
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1AFR0 |
-
UNSPSC27112829
-
Package DescriptionEACH
-
Standards/ApprovalsUS Federal Specification GGG-W-660A
-
