Starrett 1/8"-TIP X 4"-LENGTH PIN PUNCHES STR 565-C

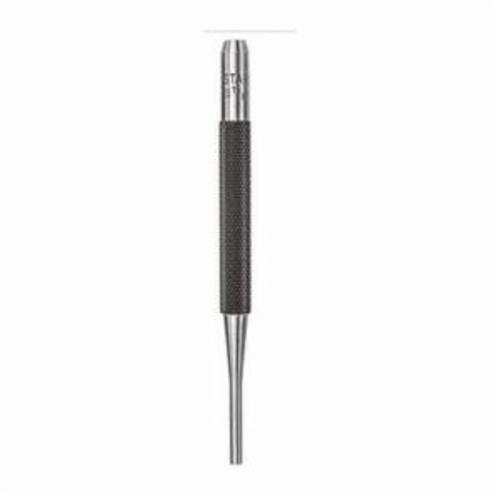

The Starrett 565 Drive Pin Punch is well proportioned, hardened, properly tempered, nicely finished, and have a knurled finger grip. Each punch has the size stamped on the head. 100mm (4") length, 3mm (1/8") Diameter.
-
BrandStarrett®
-
UPC049659525809
-
Manufacturer Part Number565C
-
CountryUSA|Canada
-
Tip MaterialSteel
-
Tip Size1/8 in
-
Series565
-
Overall Length4 in
- Knurled Grip for secure holding
- Hardened and Tempered
- Punch diameter clearly marked on the head
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2ZVK3 |
| MSC | 86420577 |
| Fastenal | 0324955 |
-
Alternative Part Number52580
-
UNSPSC27111500
-
Package DescriptionEACH
-
Catalog
-
Owners/User Manual
-

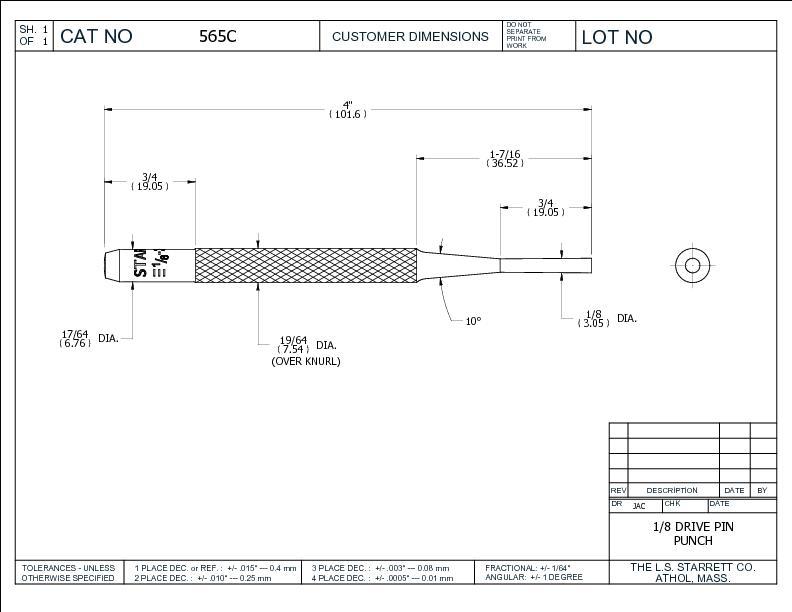

Full Engineering Drawing
