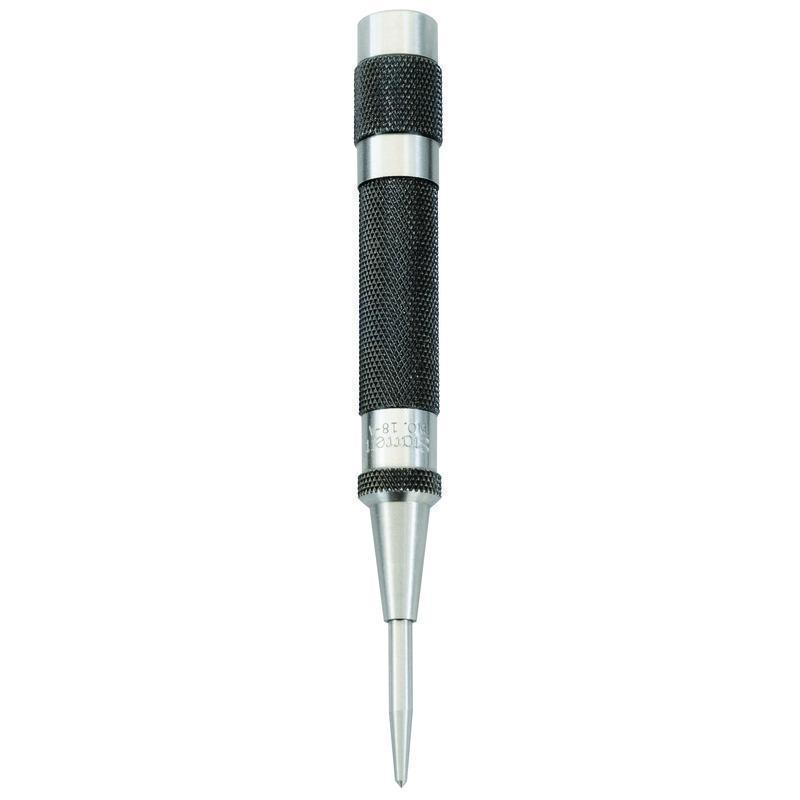

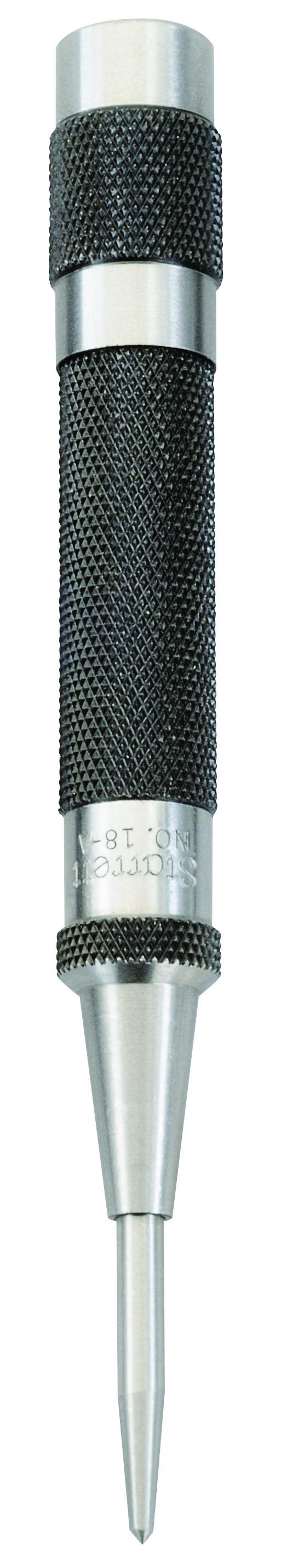

Starrett CENTER PUNCHES STR 18-A
The Starrett Automatic Center Punch with Adjustable Stroke features a lightweight, knurled steel handle for a positive grip and easy handling. 125mm (5") Length, 14mm 9/16" Diameter.
-
BrandStarrett®
-
UPC049659501209
-
Manufacturer Part Number18A
-
CountryUSA|Canada
-
Tip MaterialSteel
-
Tip Size9/16 in
-
TypeAutomatic
-
Handle TypeKnurled/Round
-
Overall Length5 in
- Rugged automatic punches with all-steel handles and parts
- Internal mechanism automatically - strikes a blow when downward pressure is applied
- Spring tension, which regulates the blow, is constant so marks made by the point are uniform in depth and size for each setting
- The point can be easily removed for regrinding or replacement
- Adjustable knurled cap regulates the force of the blow
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2ZVE9 |
| MSC | 86401601 |
| Fastenal | 0325012 |
-
UNSPSC27111500
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
Catalog
-

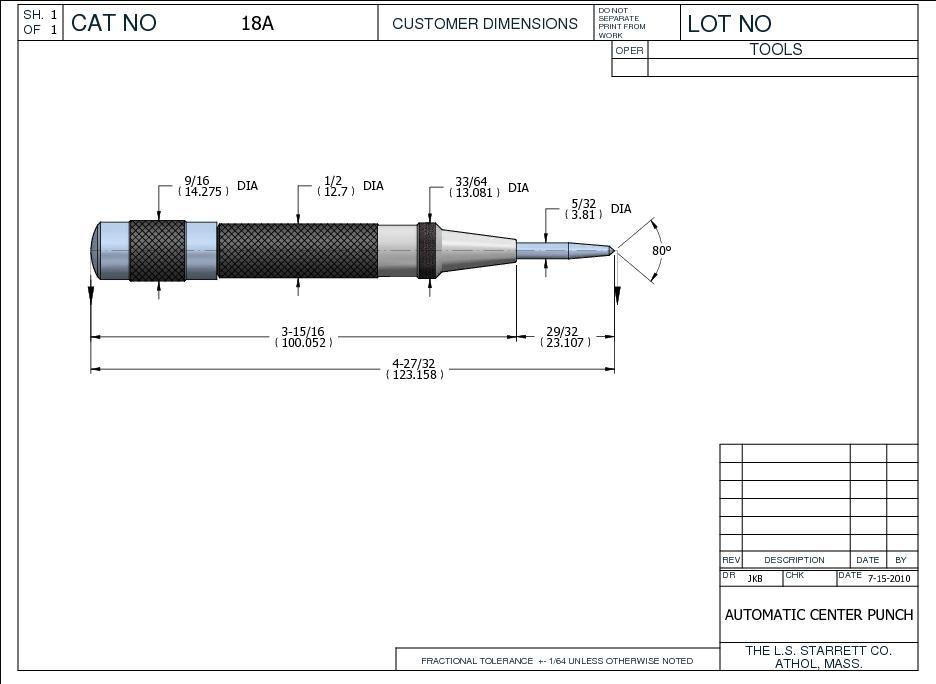

Full Engineering Drawing
