Reed 03120 Hinged Cutter, 2 to 4 in Nominal, Ergonomic Grip Rubber Handle
Hinged Pipe Cutters feature four wheels to cut steel, stainless steel, cast and ductile iron with only 90deg to 110deg handle swing. Only 4" (125 mm) clearance is required around pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360deg frame on the hinged pipe cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut. REED has the only 4-wheel pipe cutter that tracks every time and the only one recommended for ductile iron, steel, and stainless steel to Schedule 100. This tool is a REED invention.
-
BrandReed
-
UPC757033031203
-
Manufacturer Part Number03120
-
CountryUSA|Canada
-
Handle MaterialRubber
-
Handle TypeErgonomic Grip
-
Nominal Capacity2 to 4 in
-
Applicable MaterialsSCH 40 Steel and Stainless Steel
-
Blade MaterialTool Steel
-
Body MaterialDuctile Iron
-
Overall Length22 in
- Pipe Cutter with hinge is a REED invention that needs only 4 in (102 mm) of clearance around pipe
- Efficient handle swing of only 90 to 110 deg

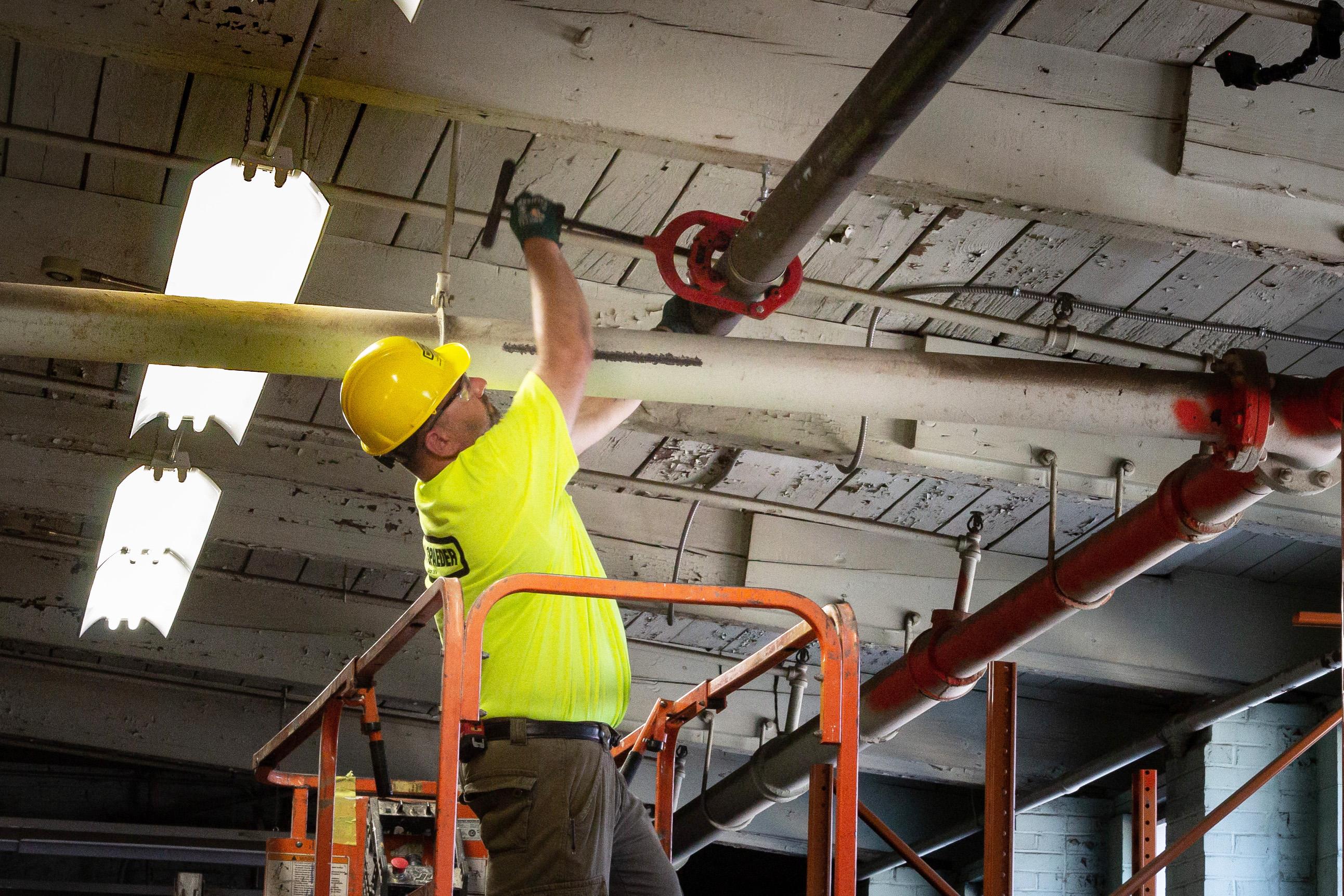

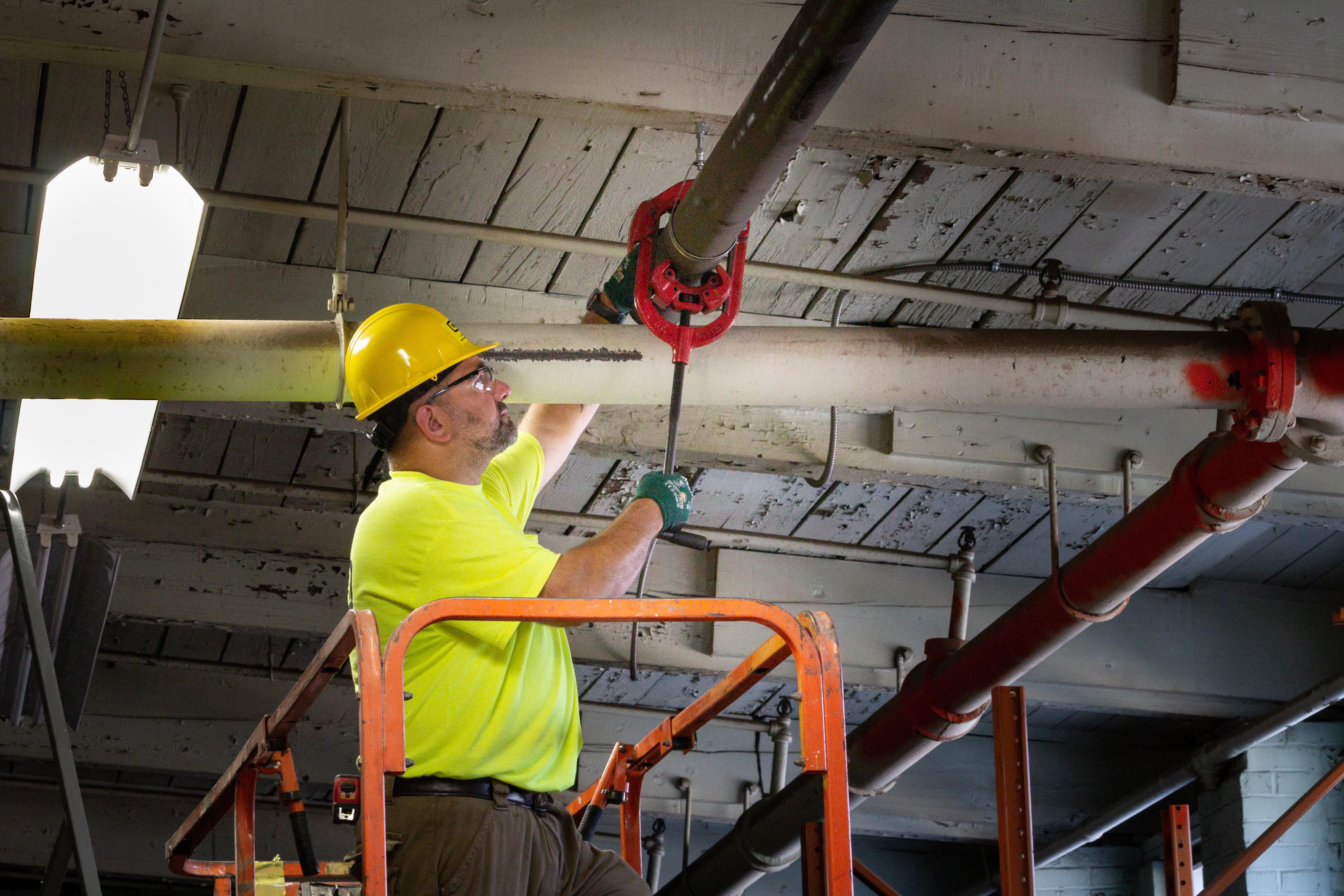

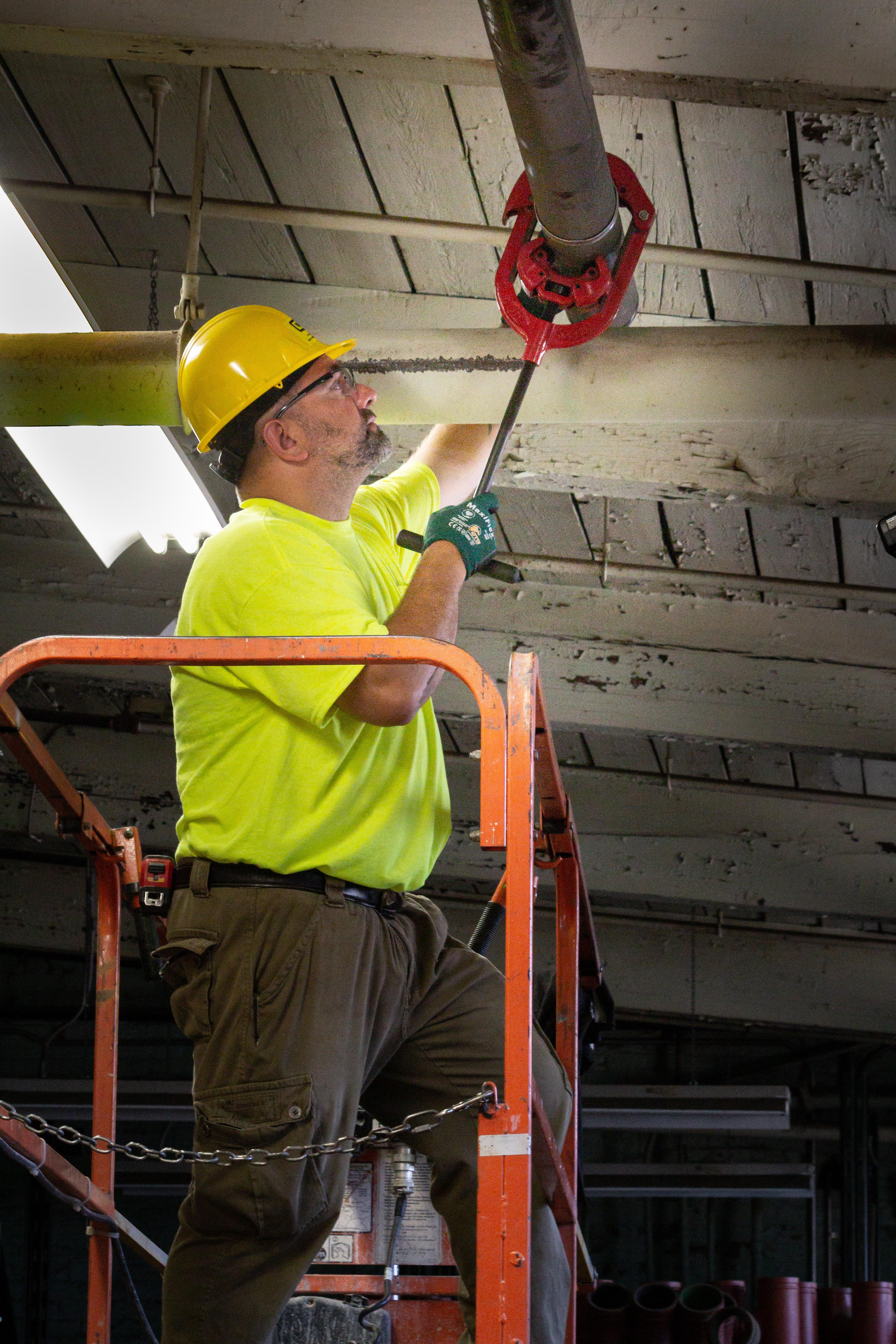

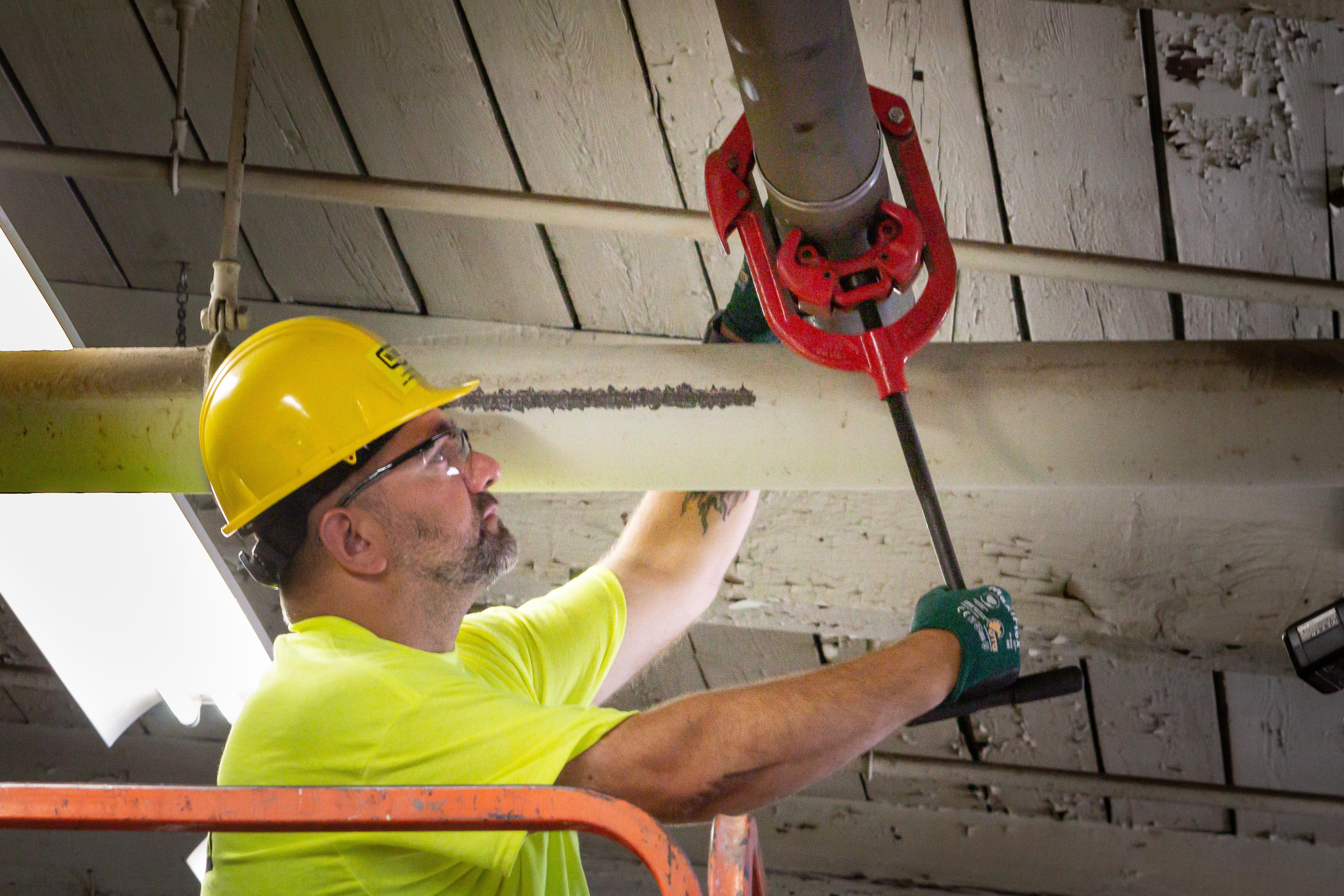

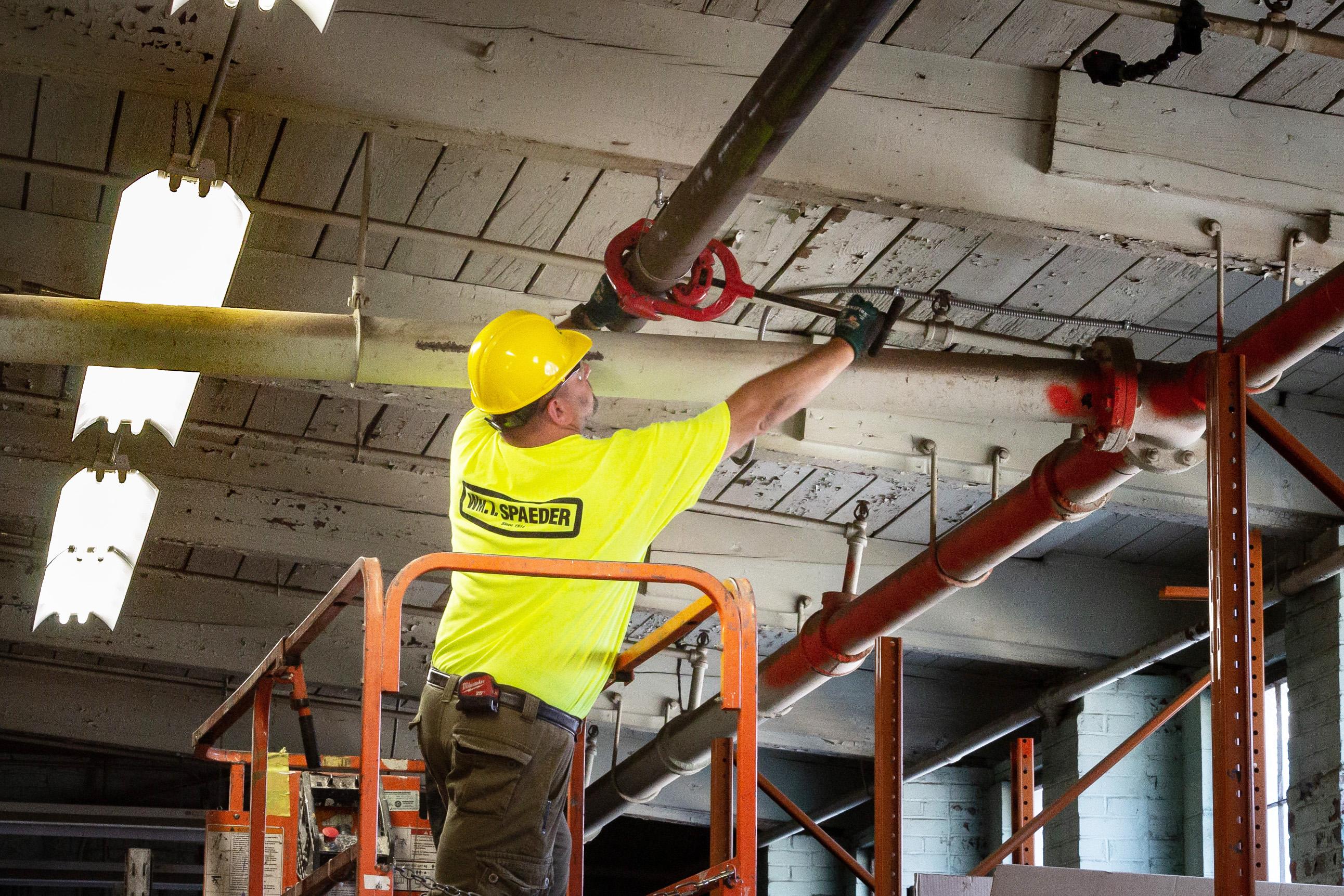

- Can be used anywhere - in the ditch, underwater, overhead, in racks of pipe
- Ships with cutter wheels installed for cutting steel and stainless steel pipe
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | R03120 |
-
Alternative Part NumberH4S
-
UNSPSC23241610
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
WarrantyLifetime
-
Service Manual
-
Owners/User Manual
