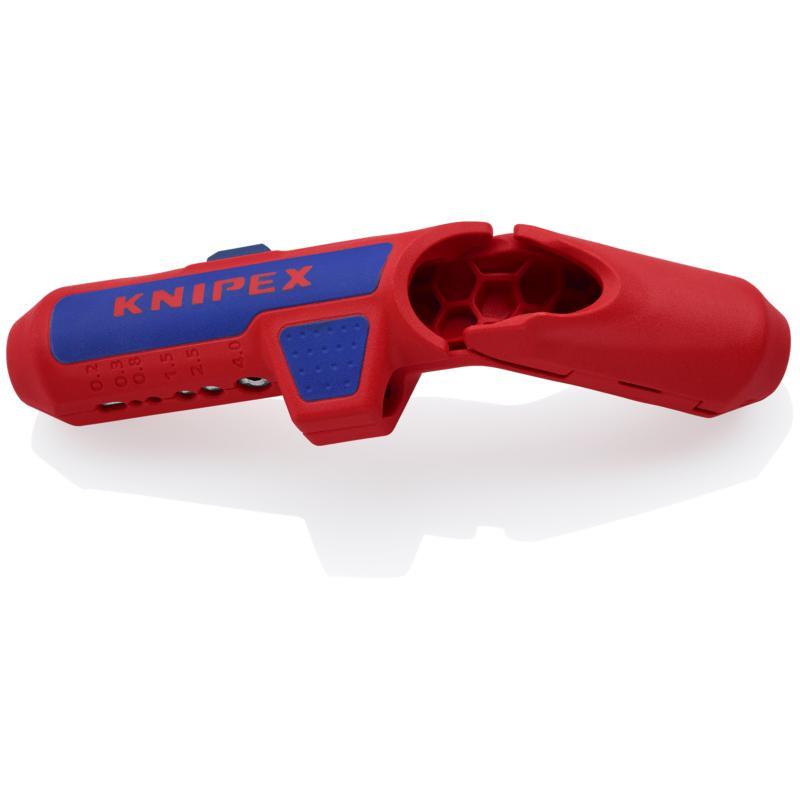

Knipex® 16 95 01 SB 16 95 Universal Stripping Tool, 0.2 to 4 sq-mm, 135 mm OAL
-
BrandKnipex®
-
UPC843221022730
-
Manufacturer Part Number16 95 01 SB
-
CountryUSA|Canada
-
Cable Size0.2 to 4 sq-mm
-
TypeUniversal
-
Handle MaterialReinforced Fiberglass Plastic
-
Series16 95
-
Insulated (Yes/No)No
-
Jaw MaterialReinforced Fiberglass Plastic
-
Overall Length135 mm
- For metric wire only
- Strips NYM cable 8 to 13 mm, coax 4.8 to 7.5 mm, Cat 5-7, Twisted-Pair (UTP/STP) and conductors and strands 0.2, 0.3, 0.8, 1.5, 2.5 and 4.0 sq-mm
- Right-handed operation
- Conical, slim tool ends for better access in confined areas
- Easy insertion of coax and data cable
- Location ridges between stripping holes make for easy alignment of wire
- Opening spring and locking device make the tool easy to open and secure
- Thumb rest area for firm grip of the tool
- Cable stripping knife for easy longitudinal cutting of cable sheath
- Two blades located at the front of the tool to remove outer sheath of NYM cable
-
UNSPSC27112700
-
Specification Sheet
-
Specification Sheet
