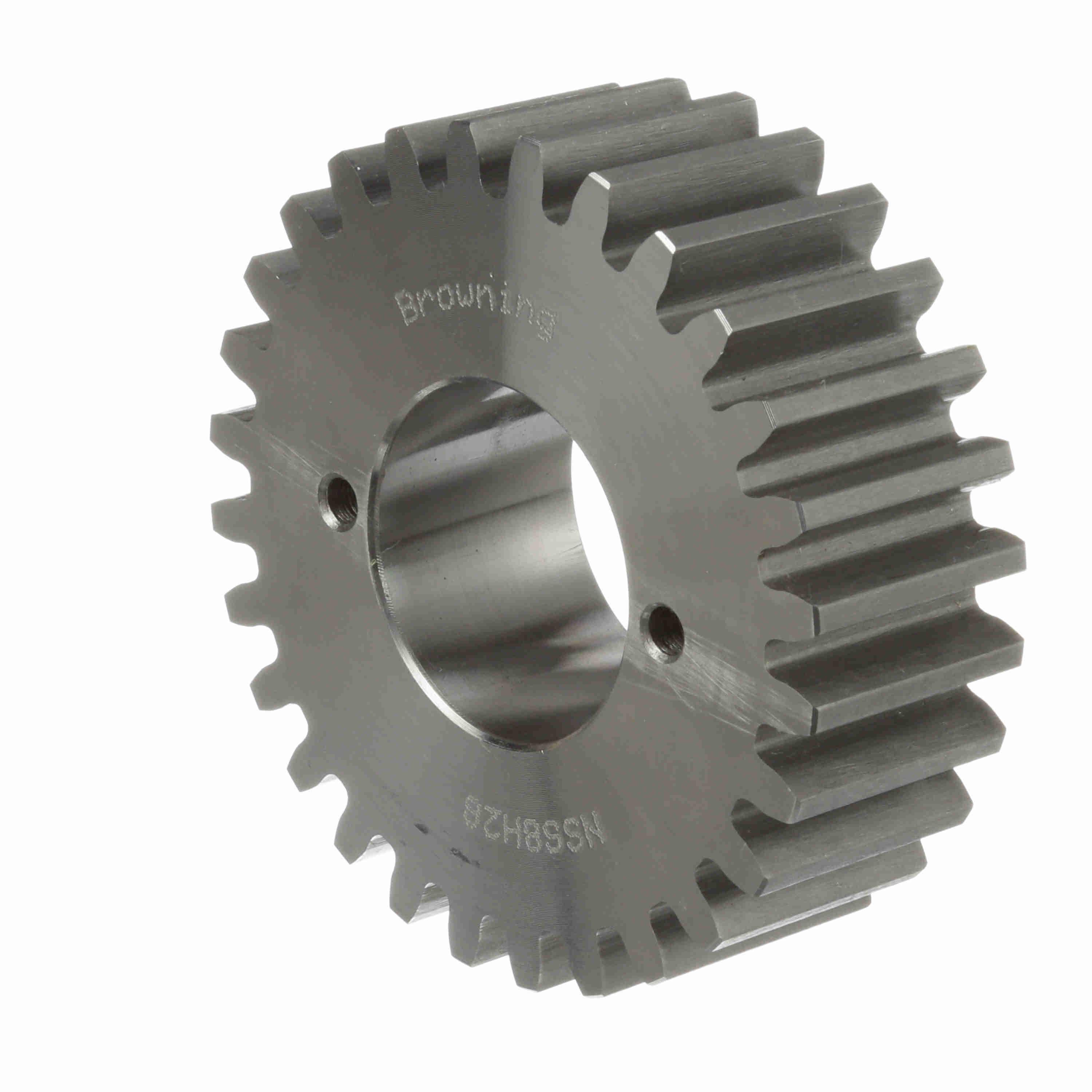

Browning® 1214105 Type 6 Spur Gear With Type H Split Taper® Bushing, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 28 Teeth, 3-1/2 in Dia Pitch, 3/8 to 1-1/2 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289115587
-
Manufacturer Part Number1214105
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter3-1/2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeType 6
-
Hub Diameter2-1/2 in
-
Hub Projection7/16 in
-
Diametral Pitch8
-
Number of Teeth28
-
Keyway Size1/4 x 1/8, 3/16 x 3/32, 5/16 x 5/32 in
-
Outside Diameter3-3/4 in
-
Bore Diameter3/8 to 1-1/2 in
-
Overall Length1-7/8 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
- Less expensive
- Without hardened teeth
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS8H28
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
