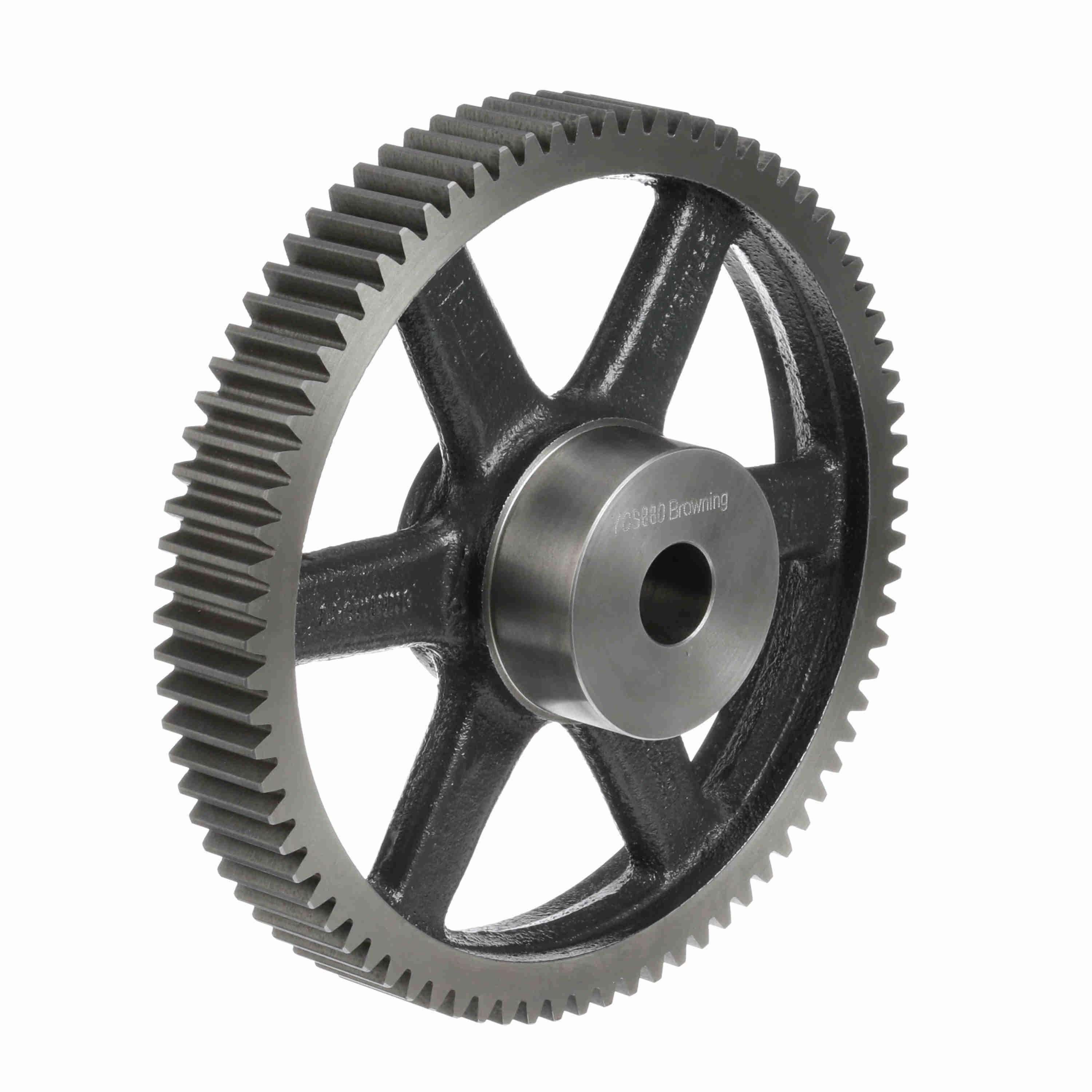

Browning 72-TOOTH 6-PITCH SPUR GEARS BRW YC-S-6-72
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289267033
-
Manufacturer Part Number1219492
-
CountryUSA
-
Face Width2 in
-
Pitch Diameter12 in
-
MaterialCast Iron
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 4
-
Hub Diameter3-3/4 in
-
Hub Projection1-1/2 in
-
Diametral Pitch6
-
Number of Teeth72
-
Outside Diameter12.33 in
-
Bore Diameter1-1/4 to 2-1/4 in
-
Overall Length3-1/2 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberYCS672
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
