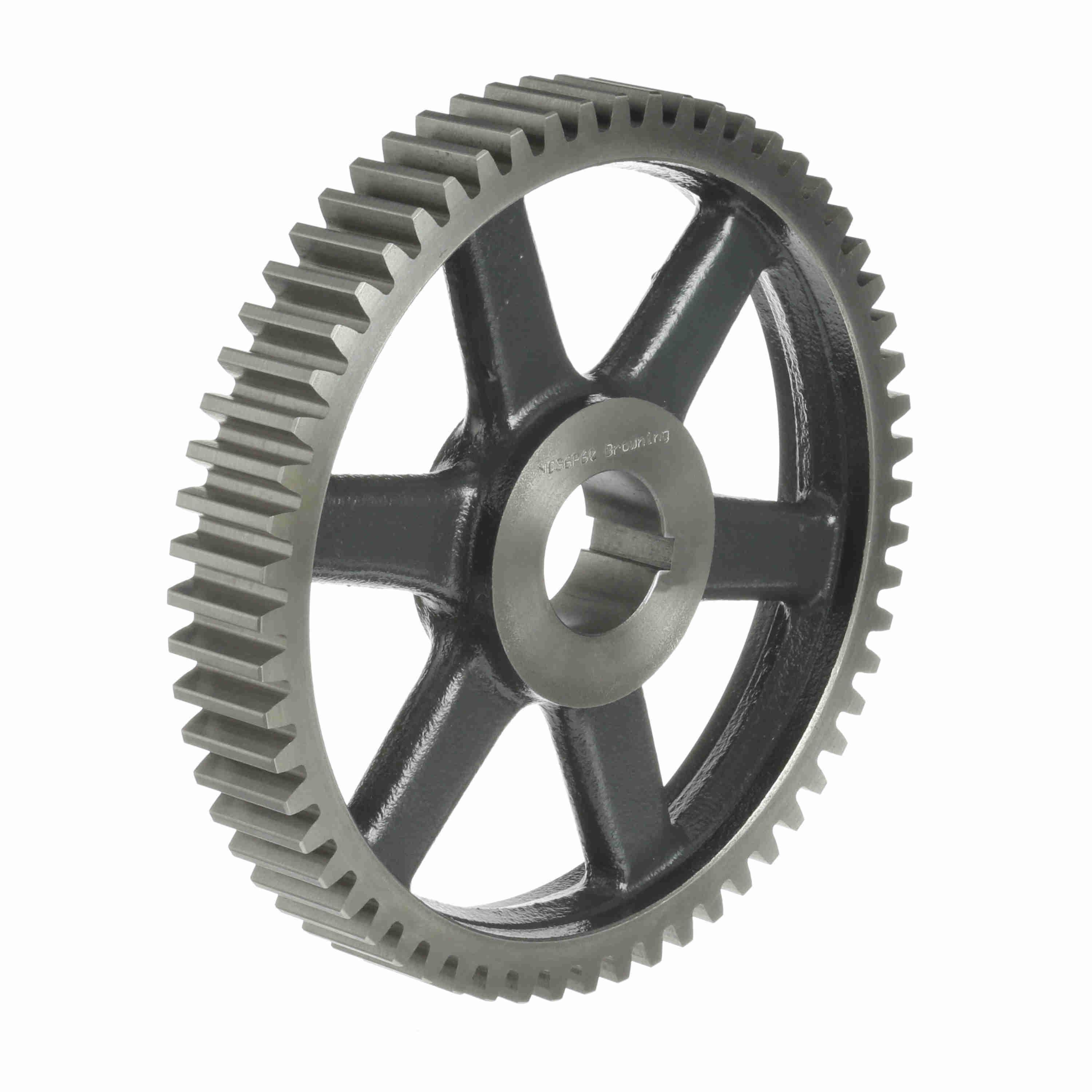

Browning 84-TOOTH 6-PITCH SPUR GEARS BRW NC-S-6-Q-84
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289155941
-
Manufacturer Part Number1214402
-
CountryUSA
-
Face Width1-1/2 in
-
Pitch Diameter14 in
-
MaterialCast Iron
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeType 16
-
Hub Diameter4-1/8 in
-
Hub Projection1 in
-
Diametral Pitch6
-
Number of Teeth84
-
Keyway Size1/4 x 1/8, 5/8 x 5/16, 3/16 x 3/32, 3/8 x 3/16, 1/2 x 1/4, 5/16 x 5/32, 1/8 x 1/16 in
-
Outside Diameter14.33 in
-
Bore Diameter3/4 to 2-11/16 in
-
Overall Length2-25/32 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCS6Q84
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
