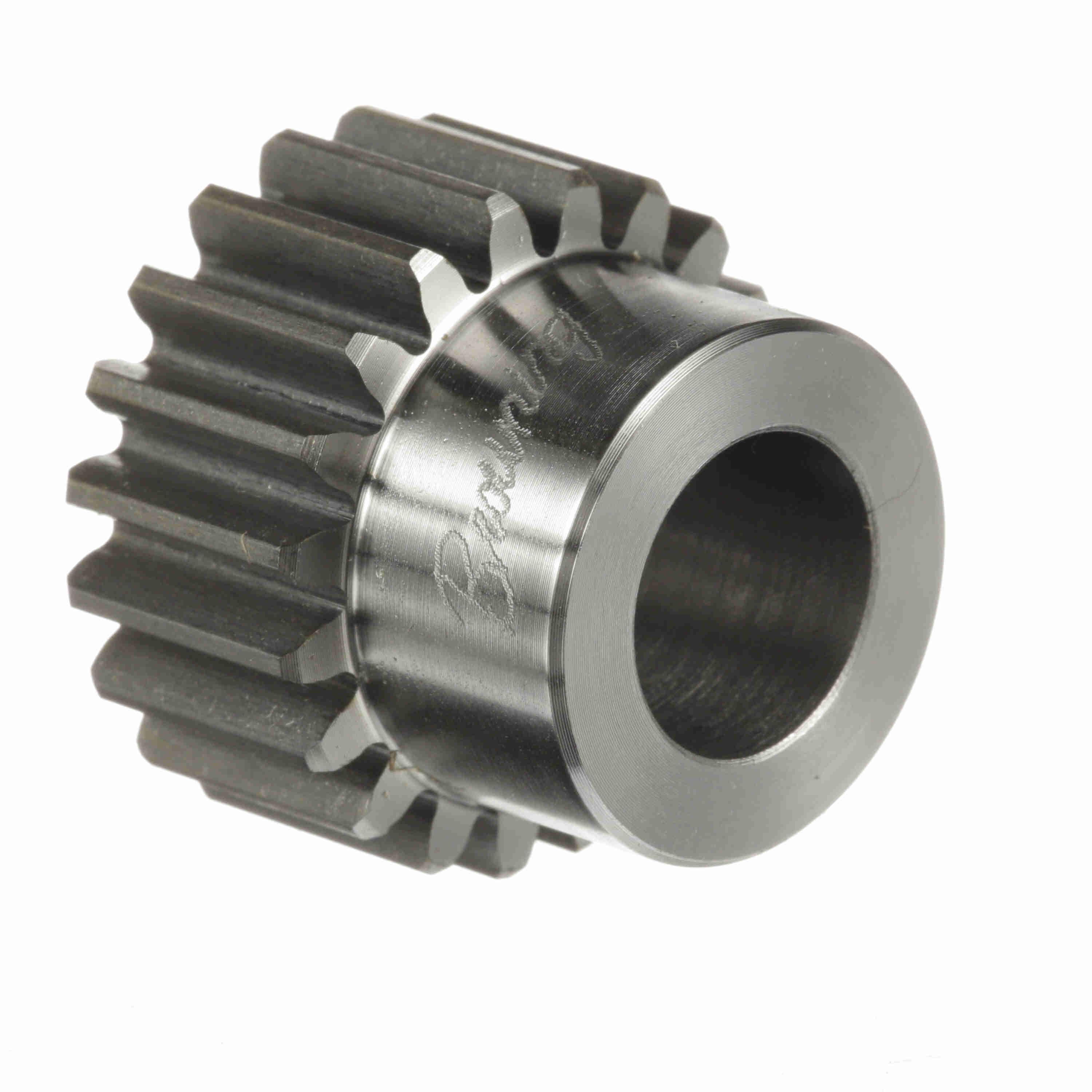

Browning 12-TOOTH 20-PITCH SPUR GEARS BRW YS-S-20-12
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289295708
-
Manufacturer Part Number1218189
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter0.6 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter0.453 in
-
Hub Projection7/16 in
-
Diametral Pitch20
-
Number of Teeth12
-
Outside Diameter0.7 in
-
Bore Diameter5/16 in
-
Overall Length15/16 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberYSS2012
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
