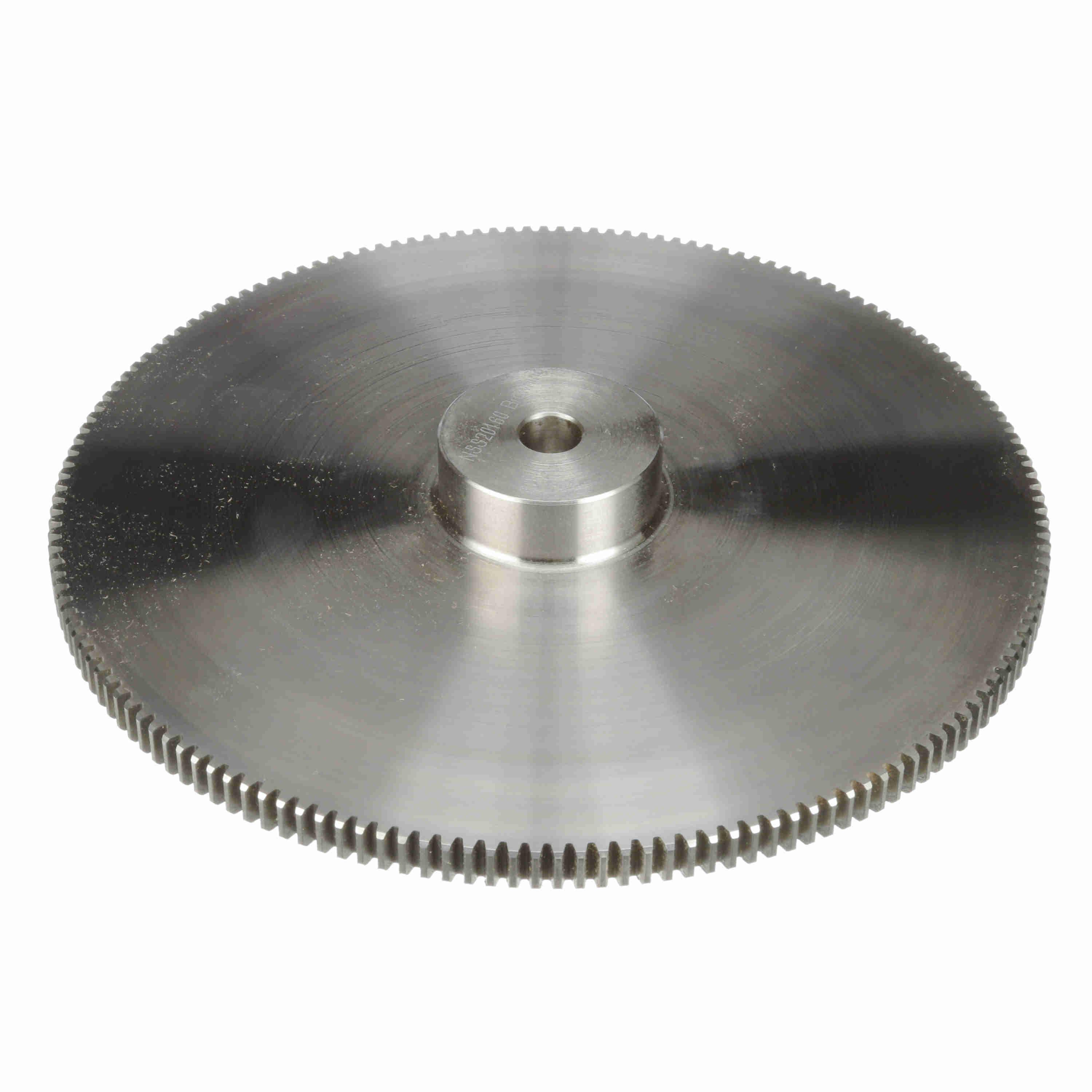

Browning 160-TOOTH 20-PITCH SPUR GEAR BRW NS-S-20-160
BrowningĀ® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowningĀ®
-
UPC662289132157
-
Manufacturer Part Number1210921
-
CountryUSA
-
Face Width3/8 in
-
Pitch Diameter8 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore
-
Hub Diameter1-13/16 in
-
Hub Projection5/8 in
-
Diametral Pitch20
-
Number of Teeth160
-
Outside Diameter8.1 in
-
Bore Diameter1/2 in
-
Overall Length1 in
- BrowningĀ® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS20160
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
