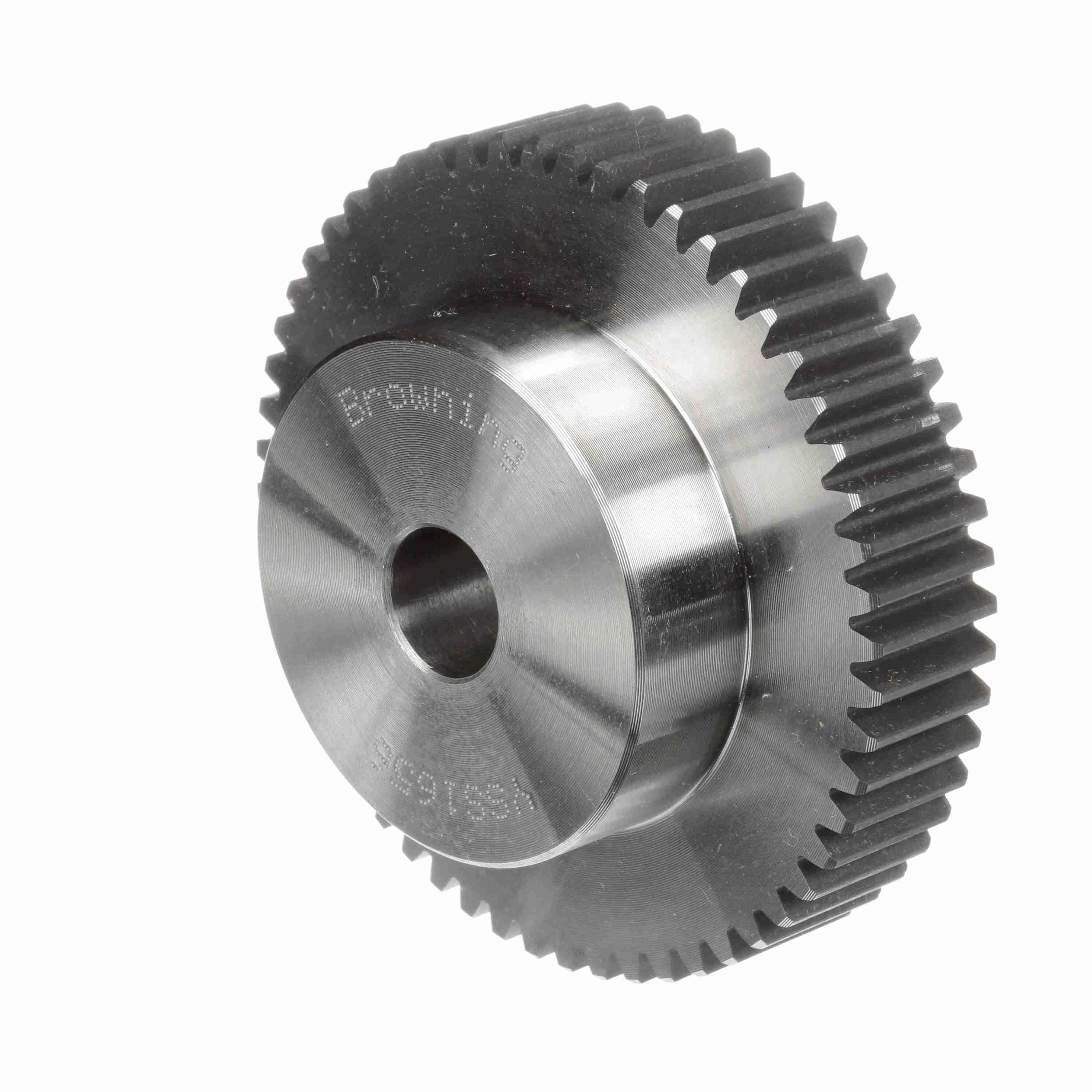

Browning® 1218510 Minimum Plain Bore Type 2 Spur Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 3/4 in W Face, 56 Teeth, 3-1/2 in Dia Pitch, 5/8 to 1-3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289246038
-
Manufacturer Part Number1218510
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter3-1/2 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter2-1/4 in
-
Hub Projection5/8 in
-
Diametral Pitch16
-
Number of Teeth56
-
Outside Diameter3.62 in
-
Bore Diameter5/8 to 1-3/8 in
-
Overall Length1-3/8 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Without hardened teeth
-
Alternative Part NumberYSS1656
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
