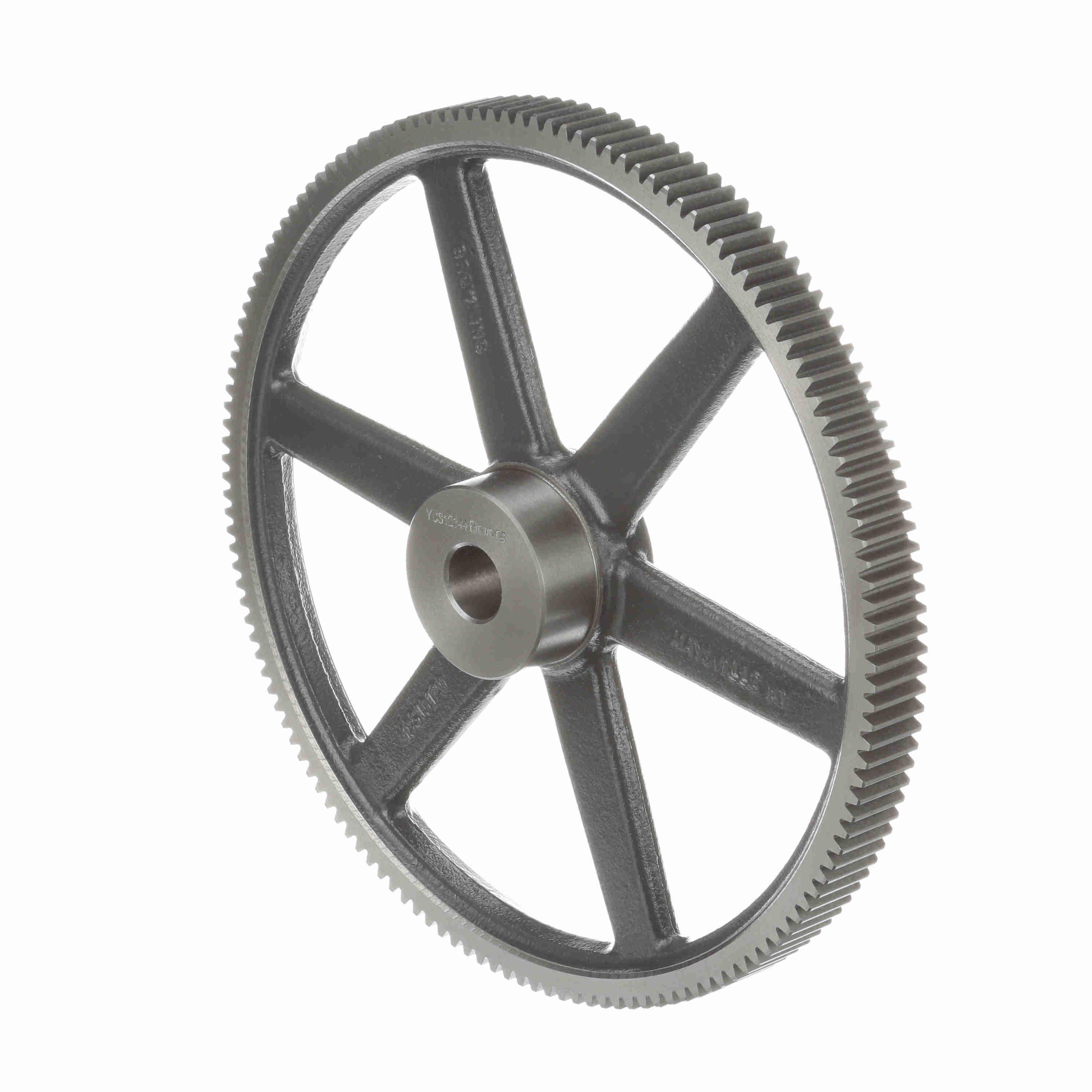

Browning 144-TOOTH 12-PITCH SPUR GEARS BRW YC-S-12-144-RWK
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289156443
-
Manufacturer Part Number1218858
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter12 in
-
MaterialCast Iron
-
Pressure Angle20 deg
-
TypeMinimum Plain Bore Type 4
-
Hub Diameter2-5/8 in
-
Hub Projection1 in
-
Diametral Pitch12
-
Number of Teeth144
-
Outside Diameter12.16 in
-
Bore Diameter1 to 1-9/16 in
-
Overall Length2 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Without hardened teeth
-
Alternative Part NumberYCS12144
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
