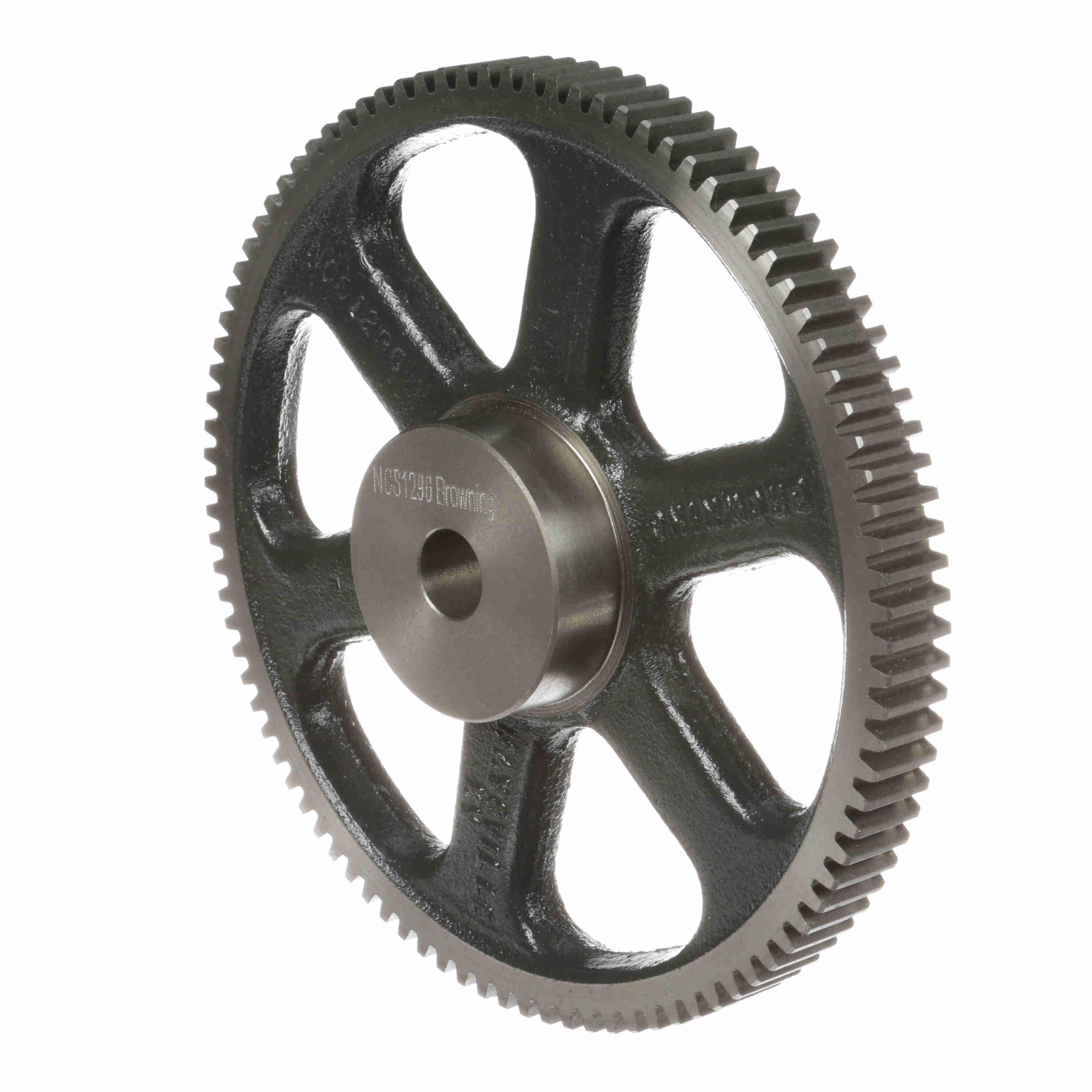

Browning® 1211713 Minimum Plain Bore Type 4 Spur Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, 3/4 in W Face, 96 Teeth, 8 in Dia Pitch, 3/4 to 1-1/2 in Dia Bore, Cast Iron
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289263011
-
Manufacturer Part Number1211713
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter8 in
-
MaterialCast Iron
-
Pressure Angle14.5 deg
-
TypeMinimum Plain Bore Type 4
-
Hub Diameter2-1/2 in
-
Hub Projection3/4 in
-
Diametral Pitch12
-
Number of Teeth96
-
Outside Diameter8.16 in
-
Bore Diameter3/4 to 1-1/2 in
-
Overall Length1-1/2 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCS1296
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
