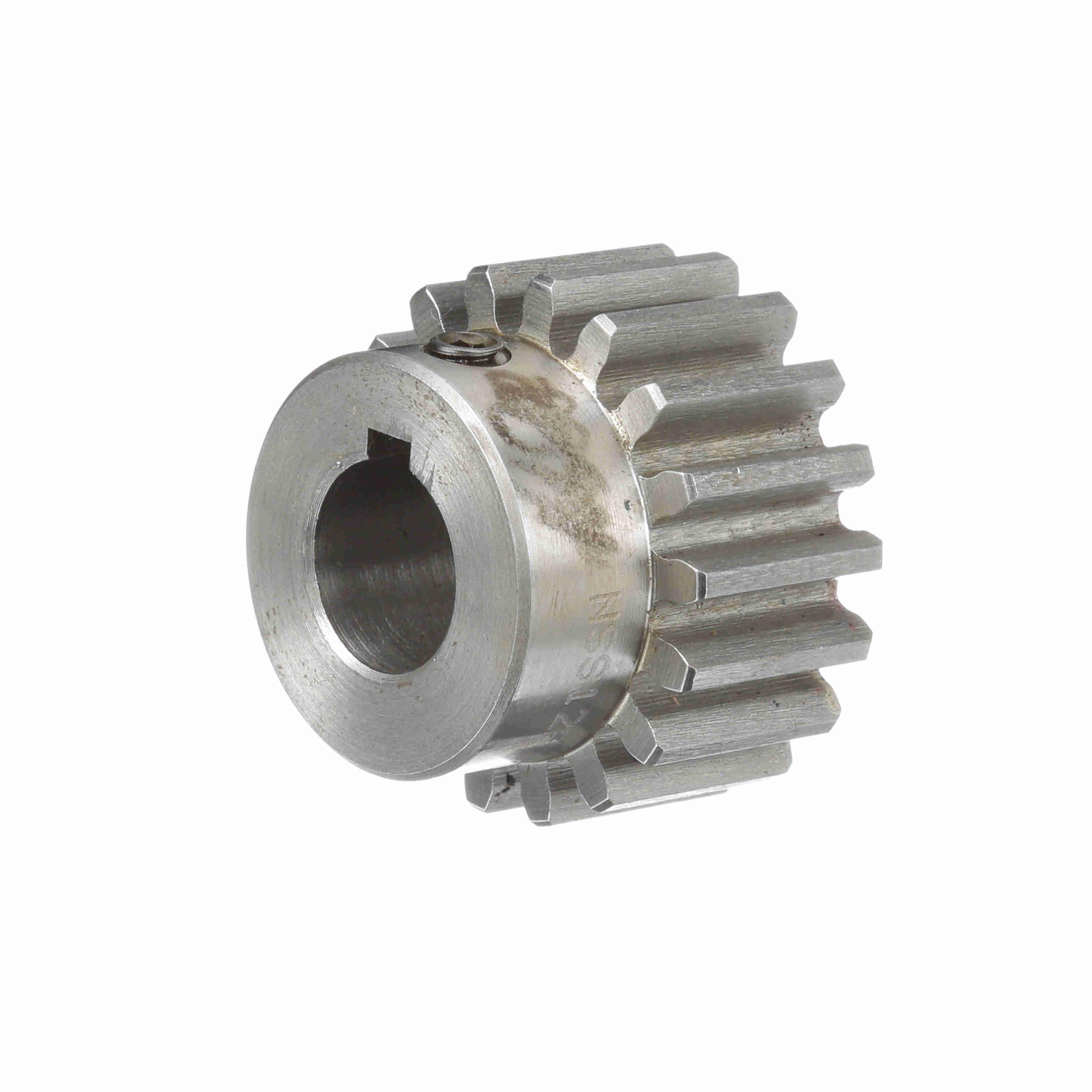

Browning® 1215557 Finished Bore Type 1 Spur Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, 3/4 in W Face, 18 Teeth, 1-1/2 in Dia Pitch, 5/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289177288
-
Manufacturer Part Number1215557
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter1-1/2 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeFinished Bore Type 1
-
Hub Diameter1-1/4 in
-
Hub Projection1/2 in
-
Diametral Pitch12
-
Number of Teeth18
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter1.66 in
-
Bore Diameter5/8 in
-
Overall Length1-1/4 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Without hardened teeth
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS12F18X5/8
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
