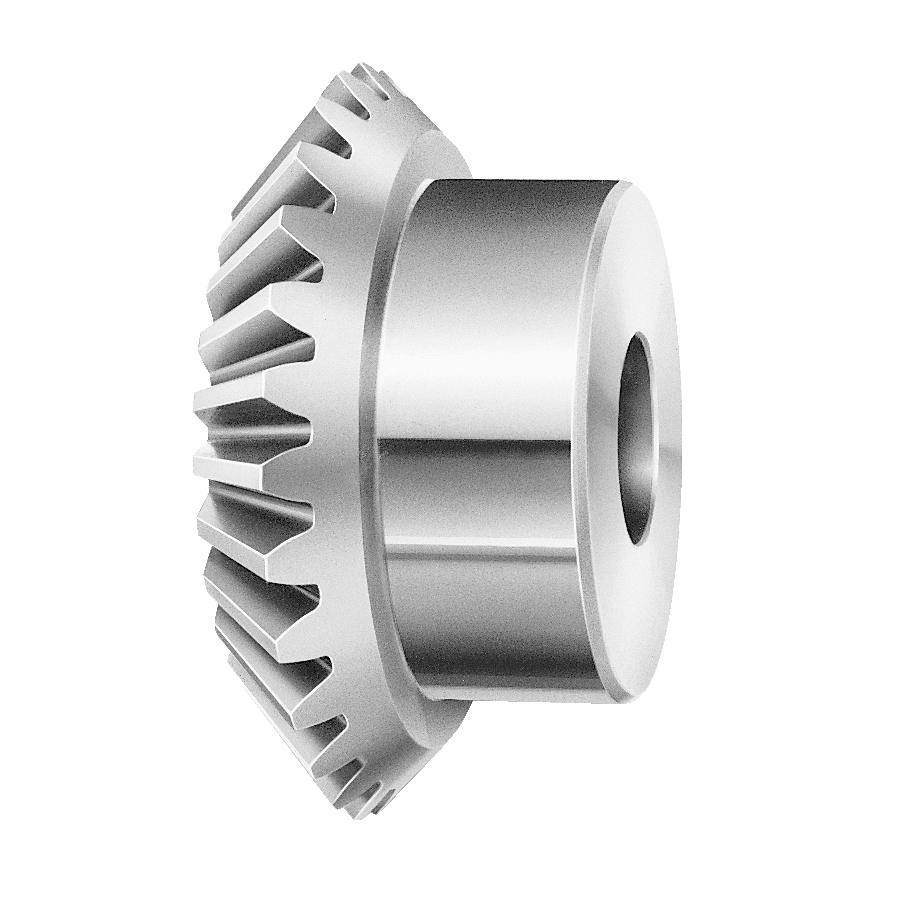

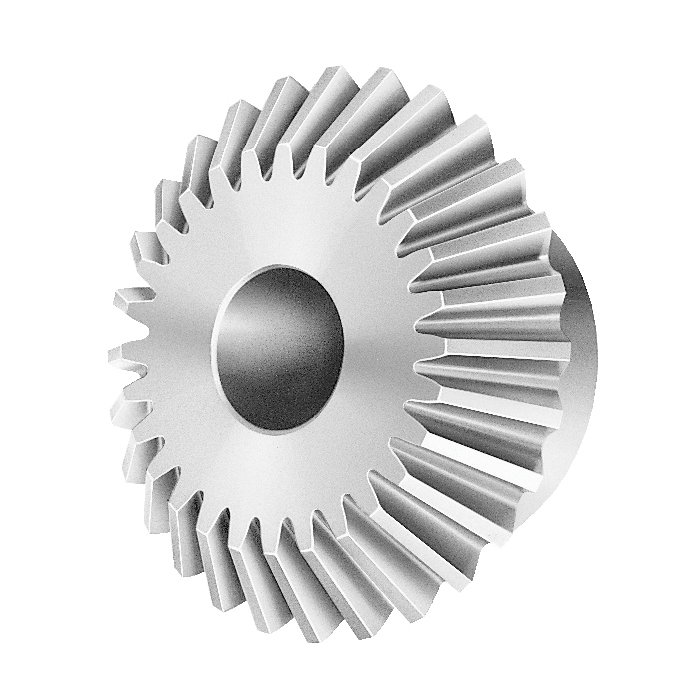

Linn Gear 24-TOOTH 4-PITCH STEEL MITER GEARS LIN 4-M-24-1.500

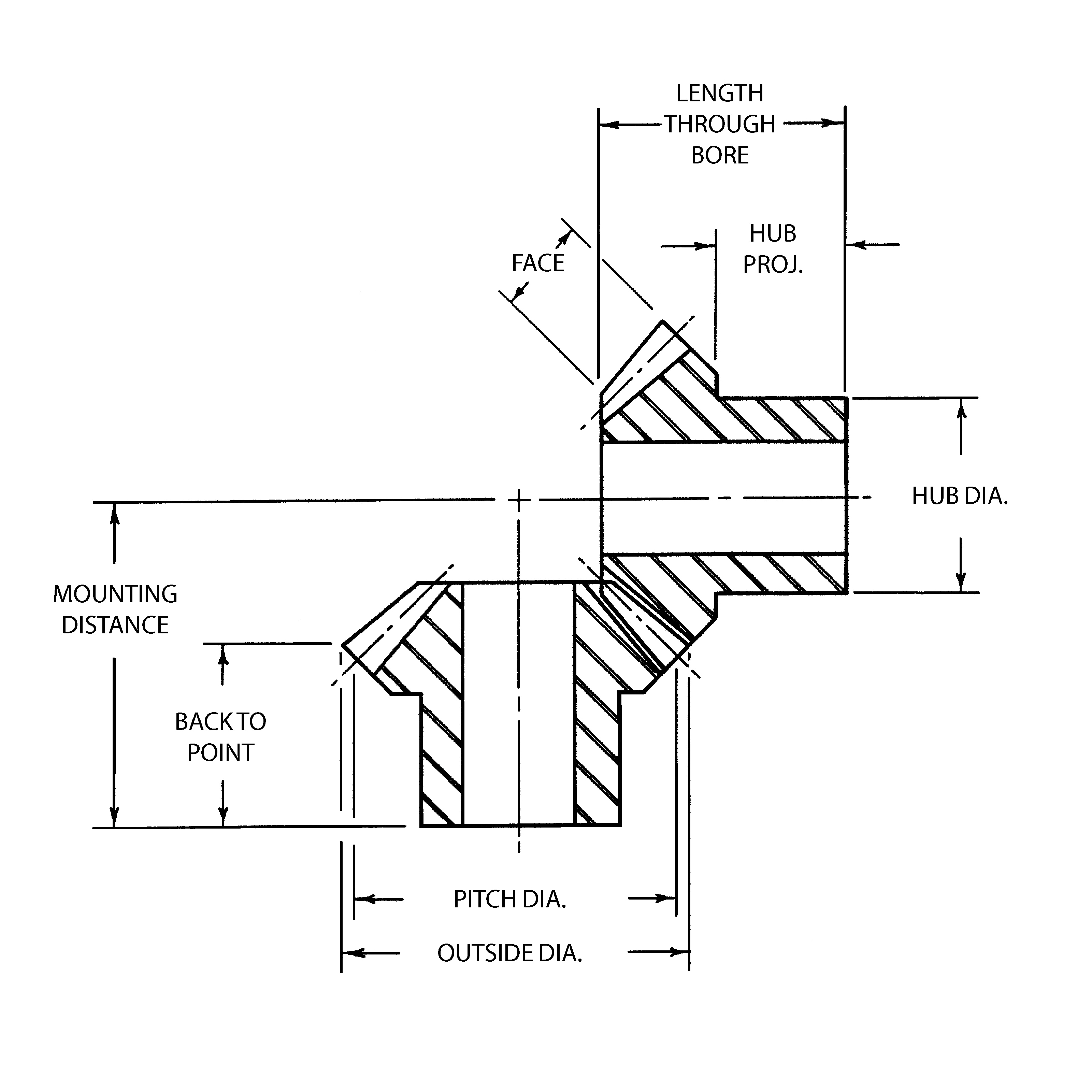

Linn 4M24-1.500 Plain Bore Miter Gear, 4 Diametral Pitch, 20 deg Pressure Angle, 24 Teeth, 6 in Dia Pitch, 1.33 in W Face, 1-1/2 to 2-5/8 in Dia Bore, Steel
-
BrandLinn
-
Manufacturer Part Number4M24-1.500
-
CountryUSA
-
Face Width1.33 in
-
Pitch Diameter6 in
-
MaterialSteel
-
Pressure Angle20 deg
-
TypePlain Bore
-
Hub Diameter4-1/2 in
-
Diametral Pitch4
-
Number of Teeth24
-
Bore Diameter1-1/2 to 2-5/8 in
-
Overall Length3.56 in
- Listed maximum bore allows for standard keyway and setscrew
- Large bores are possible but may entail additional cost and the application should be carefully reviewed
-
UNSPSC31171708
