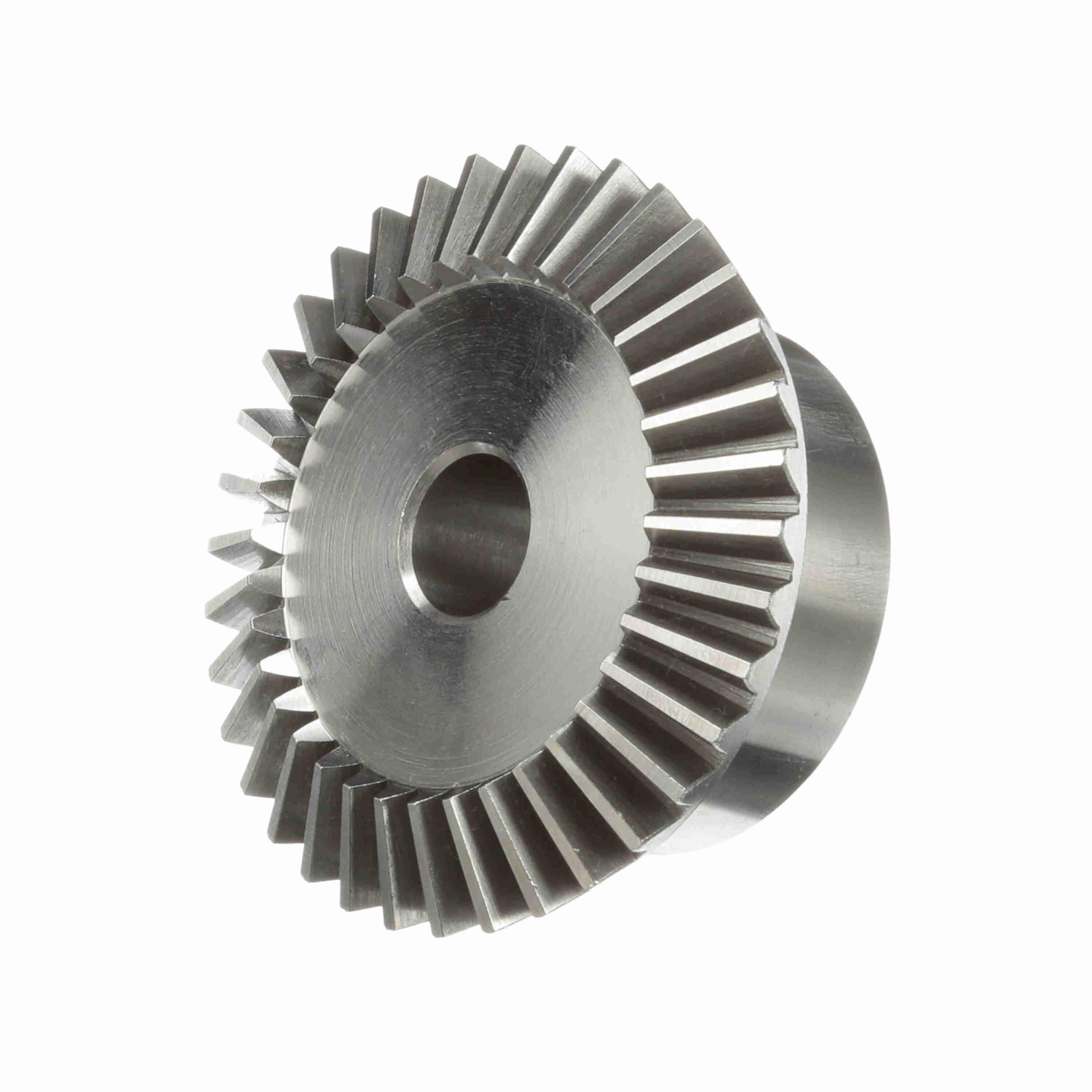

Browning® 1228055 MPB Straight Tooth Bevel Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 36 Teeth, 3 in Dia Pitch, 0.53 in W Face, 5/8 to 1-5/16 in Dia Bore, Steel
Browning® 1228055 MPB Straight Tooth Bevel Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 36 Teeth, 3 in Dia Pitch, 0.53 in W Face, 5/8 to 1-5/16 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289134755
-
Manufacturer Part Number1228055
-
CountryUSA
-
Face Width0.53 in
-
Pitch Diameter3 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio2:1
-
TypeMPB Straight Tooth
-
Hub Diameter2-1/8 in
-
Hub Projection7/8 in
-
Diametral Pitch12
-
Number of Teeth36
-
Bore Diameter5/8 to 1-5/16 in
-
Overall Length1-17/64 in
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSB12B36-20
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
