Browning 60-TOOTH 10-PITCH BEVEL GEARS BRW YS-B-10-B-60-30

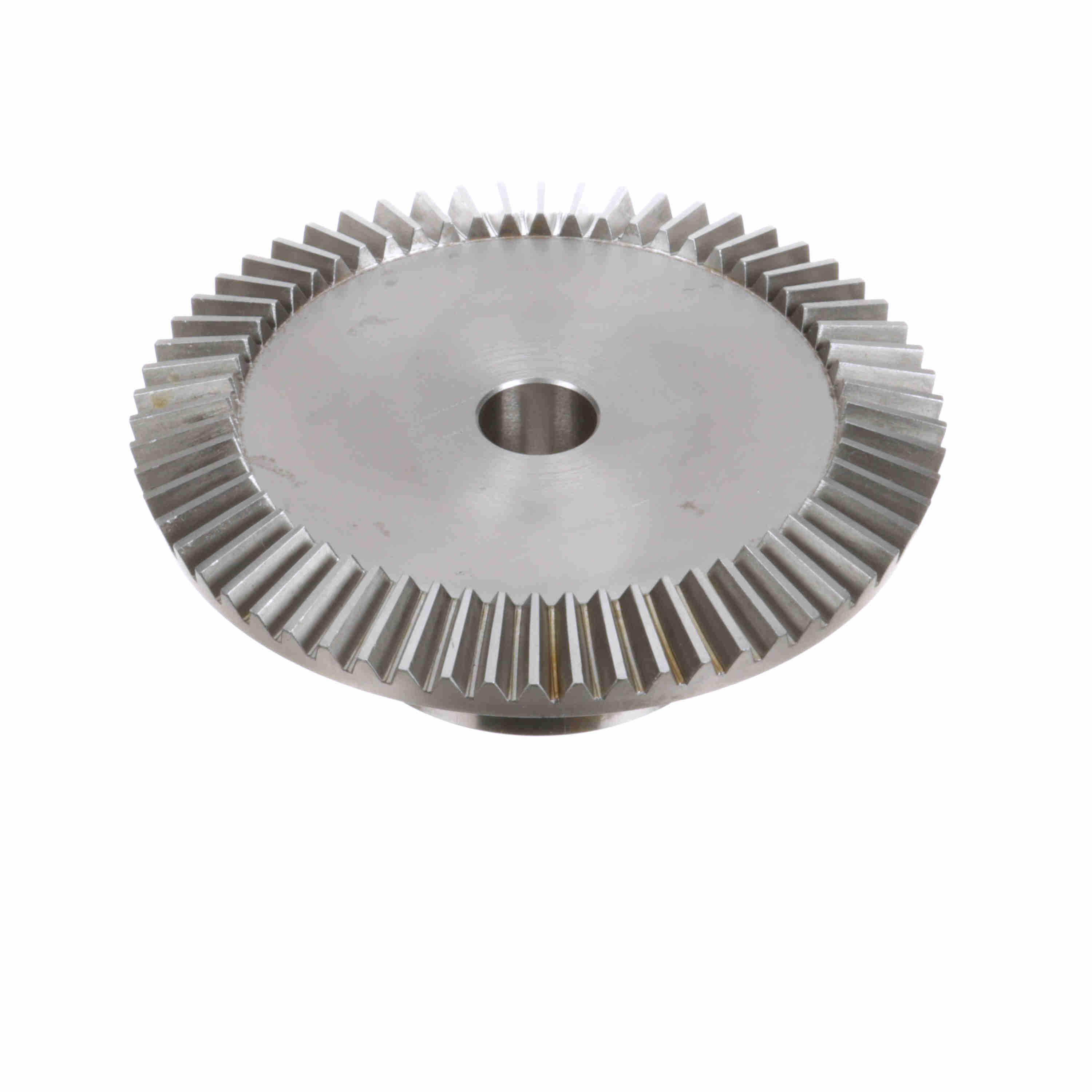

Browning® 1228220 MPB Straight Tooth Bevel Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 60 Teeth, 6 in Dia Pitch, 0.78 in W Face, 7/8 to 2 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289104970
-
Manufacturer Part Number1228220
-
CountryUSA
-
Face Width0.78 in
-
Pitch Diameter6 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio3:1
-
TypeMPB Straight Tooth
-
Hub Diameter3 in
-
Hub Projection1-55/64 in
-
Diametral Pitch10
-
Number of Teeth60
-
Bore Diameter7/8 to 2 in
-
Overall Length1-55/64 in
- Browning Gears are rated in accordance with AGMA standards
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
-
Alternative Part NumberYSB10B60-30
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
