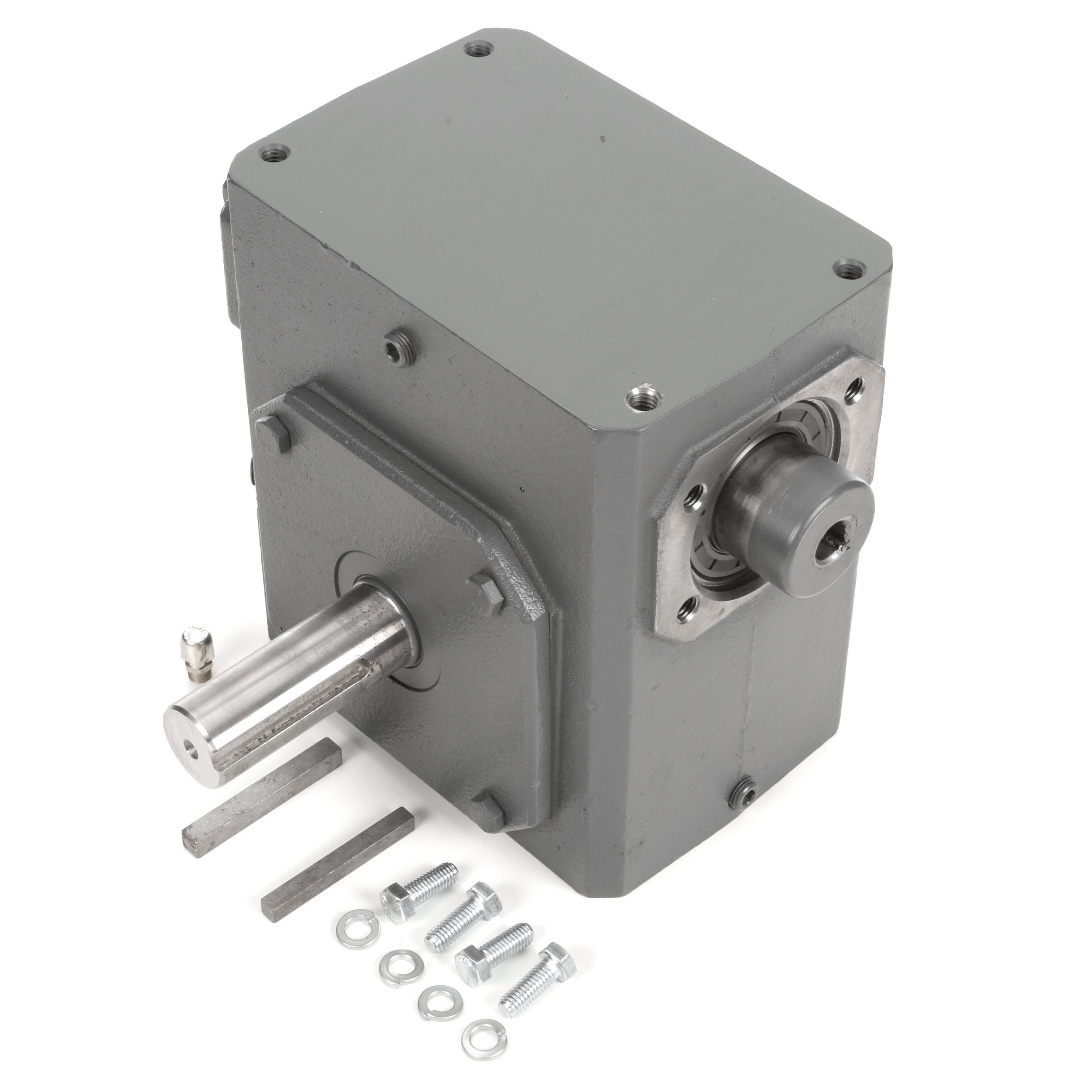

Browning 40:1 RAIDER WORM GEAR REDUCERS BRW 325-Q-56-LR-40
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
-
BrandMorse®
-
UPC662288362005
-
Manufacturer Part NumberXI1148
-
CountryUSA
-
Lubrication TypePolyglycol Oil
-
Centre Distance3-1/4 in
-
MaterialCast Iron
-
Torque Rating105.38 in-lb Input/43.7 in-lb Output
-
Gear Ratio40:1
-
TypeSingle Reduction Standard
-
Mounting TypeDirect/Floor
-
Horsepower1 hp
-
Input Maximum Speed1750 rpm
-
Input Size0.63 in Dia
-
Input TypeC-Face Quilled
-
Dimensions11.16 in L x 10.7 in W
-
Keyway Size0.1875 x 1.63 in Input
-
Output Maximum Speed43.7 rpm
-
Output Size1.38 in Dia x 3.66 in L
-
Output TypeDouble Solid Shaft
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Tapered roller bearings are used on output shaft
- Forged bronze worm gears provide optimum balance of strength and wear
- 8810 offers further improvement to the standard chain series 881
- Double sealing capability on input and output shafts
- Dimensionally interchangeable with major industry competitors
- 56 NEMA frame
-
Alternative Part Number325Q56LR40
-
UNSPSC25173800
-
Package DescriptionEACH
-
Standards/ApprovalsFDA Approved
-
Warranty1 year
-
Specification Sheet
-
Instruction/Installation Manual
