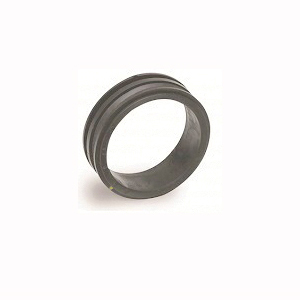

46-TT-307 Dodge® 043549 Labyrinth Triple-Tect Bearing Seal Ring, 3-7/16 in ID, Stainless Metal
Dodge® 043549 Labyrinth Triple-Tect Bearing Seal Ring, 3-7/16 in ID, Stainless Metal
-
BrandDodge®
-
UPC782475027545
-
Manufacturer Part Number043549
-
CountryUSA
-
MaterialStainless Metal
-
TypeLabyrinth Triple-Tect
-
Inside Diameter3-7/16 in
-
UNSPSC31171500
-
Specification Sheet
-
Instruction/Installation Manual
