Littelfuse® ATO040 Fast Acting High Speed Automotive Fuse, 40 A, 32 V DC, 1 kA Interrupt

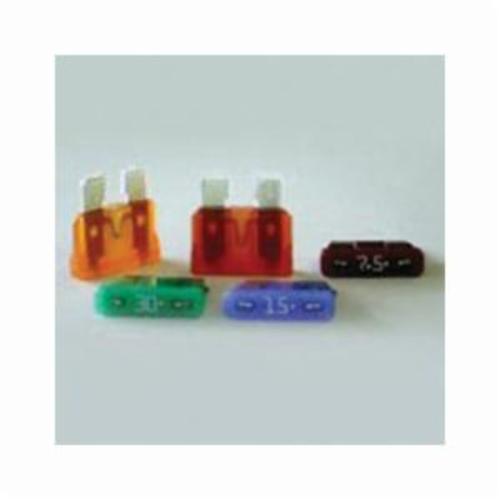

The ATO® fuse was designed and patented by Littelfuse® in 1976 and set the standard for automotive circuit protection. It features industry standard color coding to indicate amperage rating.
-
BrandLittelfuse®
-
UPC079458005530
-
Manufacturer Part NumberATO040
-
CountryUSA
-
Terminal TypeBlade
-
MaterialNylon
-
ColorOrange
-
TypeFast Acting High Speed
-
Mounting TypeHolder
-
Voltage Rating32 V DC
-
Amperage Rating40 A
-
Width3/4 in
-
SeriesATO
-
Indicating/Non-IndicatingNon-Indicating
-
Depth0.2 in
-
Interrupt Rating1 kA
-
Length0.74 in
- 360000 sec at 100%/110%, 0.75 to 600 sec at 135%, 250 micro sec to 50 sec at 160%, 0.15 to 5 sec at 200%, 80 to 500 micro sec at 350%, 150 micro sec at 600% opening time
- Color coded
-
Alternative Part Number0ATO040.V|8554792
-
UNSPSC39121622
-
IDEA Index ID8554792
-
Package Description5/PK
-
Standards/ApprovalsUL AU1410|CSA 29862|SAE J1284|ISO 8820-3|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
