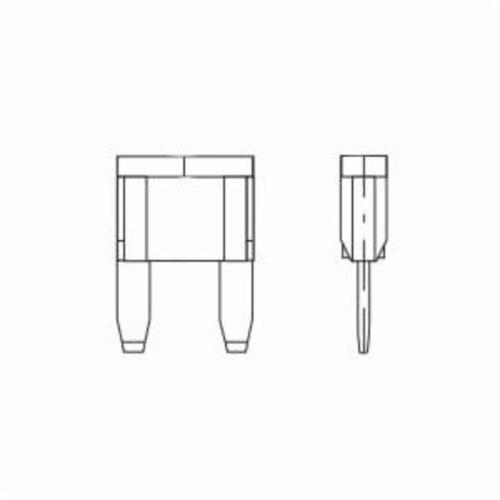

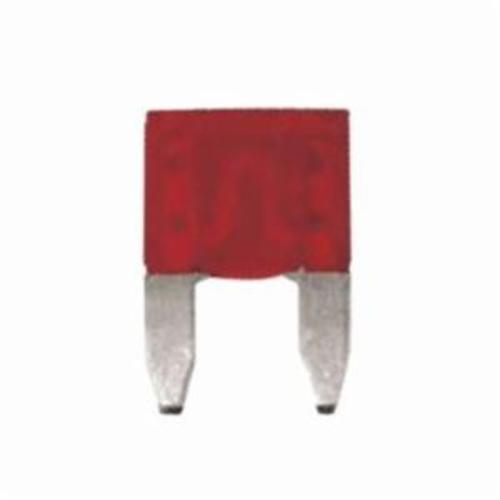

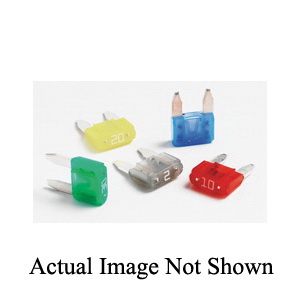

Littelfuse® MINI® 0297015.L 297 Automotive Fuse, 15 A, 32 V DC, 1 kA Interrupt
The MINI® fuse is quickly becoming the new standard for vehicle circuit protection throughout the world. Its miniature design, patented by Littelfuse®, meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MINI® fuse the recommended choice for protection.
-
BrandLittelfuse®
-
UPC079458941968
-
Manufacturer Part Number0297015.L
-
CountryUSA|Canada
-
Terminal TypeBlade
-
MaterialPolyamide 66
-
ClassRK1
-
ColorBlue
-
TypeFast Blow Special Purpose
-
Mounting TypeHolder
-
Voltage Rating32 V DC
-
Amperage Rating15 A
-
Width10.9 mm
-
Series297
-
Depth3.8 mm
-
Interrupt Rating1 kA
-
Indicating/Non-IndicatingIndicating
- 360000 s at 110%, 0.75 to 600 s at 135%, 0.15 to 5 s at 200%, 0.08 to 0.5 s at 350%, 0.03 to 0.1 s at 600% opening time
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 7YV23 |
-
Alternative Part Number12045027
-
UNSPSC39121622
-
IDEA Index ID12045027
-
Package Description50/PK
-
Standards/ApprovalsUL 248|SAE J2077|ISO 8820-3|UL Recognized|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
