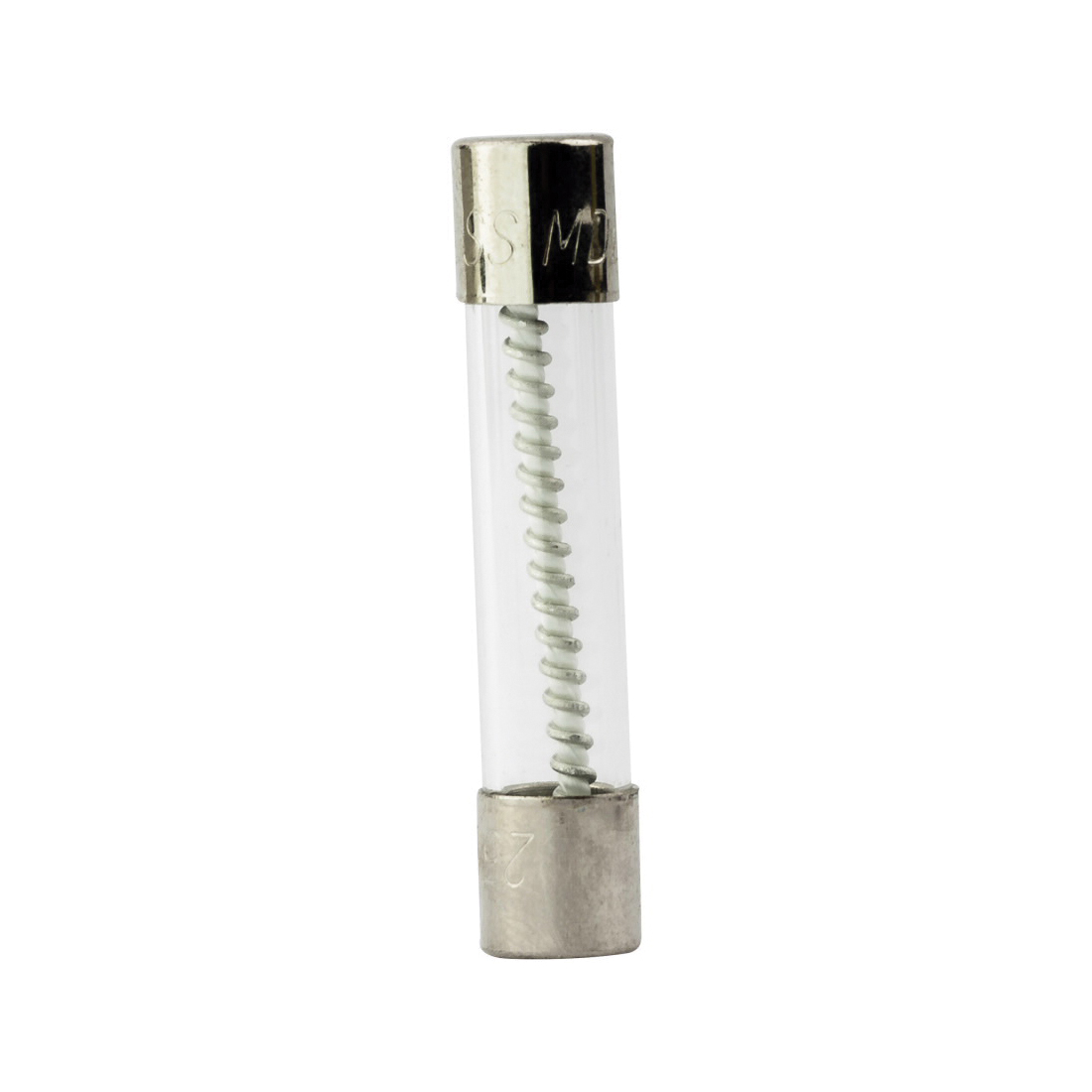

Bussmann MDL-6-1/4 Electronic Time Delay Fuse
Bussmann MDL-6-1/4 Electronic Time Delay Fuse
-
BrandBussmann
-
UPC051712724555
-
Manufacturer Part NumberMDL-6-1/4
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialGlass
-
Response Time60 min, 12 s, 120 s
-
TypeElectronic
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating6.25 A
-
SeriesMDL
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 A/10 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCylindrical
- Time delay allows close sizing on inductive circuits
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 12 s minimum at 200%, 120 s maximum at 200% response time
-
Alternative Part Number7640093
-
UNSPSC39121607
-
IDEA Index ID7640093
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|UL 248-14 Guide JDYX|UL File No. E19180|CSA 1422-0
-
