Littelfuse® POWR-GARD® 225003P Fast Acting Cartridge Fuse, 3 A, 250 V AC, 100 A Interrupt, Class: J, Cylindrical Body

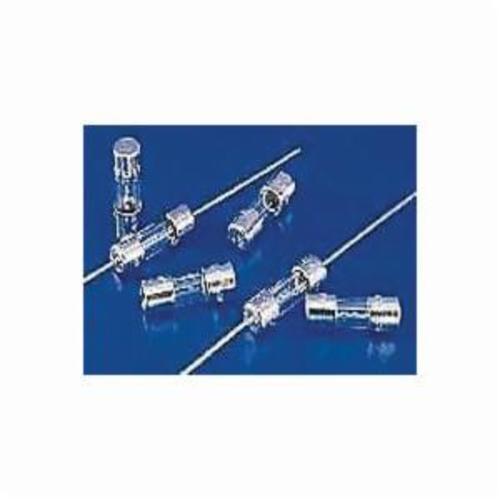

The 2AG fast acting fuses are available in cartridge form or with axial leads. 2AG fuses provide the same performance characteristics as their 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
-
BrandLittelfuse®
-
UPC079458914412
-
Manufacturer Part Number225003P
-
CountryUSA|Canada
-
MaterialGlass
-
ClassJ
-
TypeFast Acting
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating3 A
-
Series225
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating100 A
-
Body Size5 mm Dia x 15 mm L
-
Body TypeCylindrical
- Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
- Glass body, nickel plated brass end cap
- -55 to125 deg C operating temperature
- Lead-free
- 4 hrs minimum at 100%, 1 hr maximum at 135%, 1 sec maximum at 200% response time
-
Alternative Part Number0225003.VXP|9533849
-
UNSPSC39121627
-
IDEA Index ID9533849
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-8|CSA Certified|CE Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
