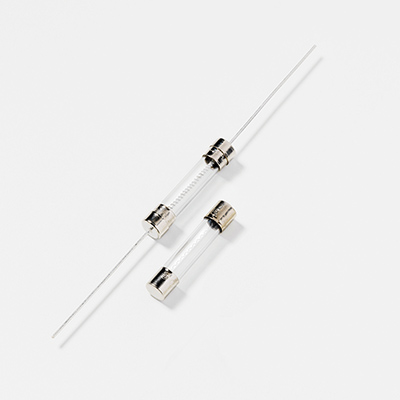

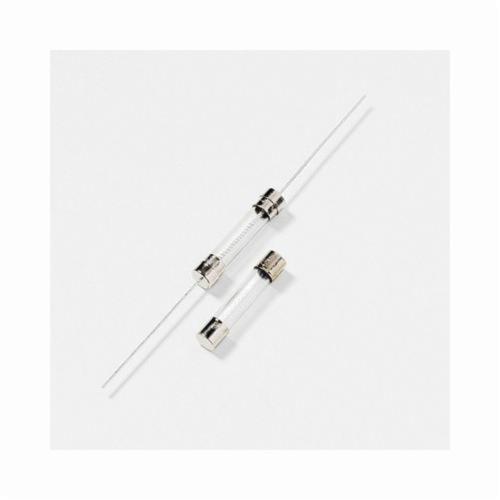

Littelfuse® POWR-GARD® Slo-Blo® H313001P Time Delay Cartridge Fuse, 1 A, 250 V AC, 10 kA Interrupt, Cartridge Body
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
-
BrandLittelfuse®
-
UPC079458922943
-
Manufacturer Part NumberH313001P
-
CountryUSA|Canada
-
Terminal TypeFerrule
-
MaterialGlass
-
Response Time4 hr, 1 hr, 5 to 30 s
-
TypeTime Delay
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating1 A
-
Series313
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating10 kA
-

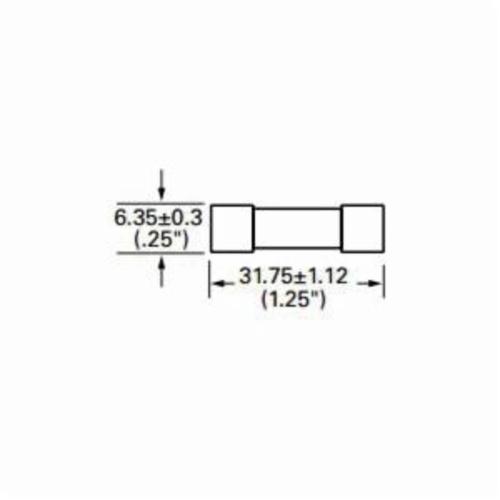

Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCartridge
- 313 and 315 series fuses have time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers, and solenoids
- 3AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
- Guesswork and time consuming circuit testing is eliminated
- Unique design offers the same quality performance characteristics as the standard 3AG fuse design
- Lead-free
- Nickel plated brass cap
- -55 to 125 deg C operating temperature
- 10 kA at 125 VAC interrupting rating
- 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
- HX marking code
-
Alternative Part Number0313001.HXP|10701664
-
UNSPSC39121627
-
IDEA Index ID10701664
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E10480|CSA 29862|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Owners/User Manual
