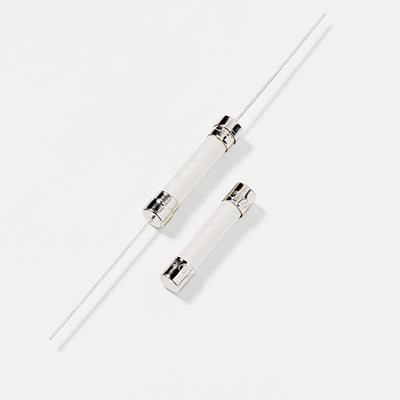

Littelfuse® POWR-GARD® 314010P Fast Acting Cartridge Fuse, 10 A, 250 V AC, 10 kA Interrupt, Class: H, Cartridge Body
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458924077
-
Manufacturer Part Number314010P
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
ClassH
-
Response Time1 hr, 4 hr, 15 s
-
TypeFast Acting
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating10 A
-
Series314
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating10 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCartridge
- 3AB Fast-Acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings
- Ideal for applications where high current loads are expected
- Nickel plated brass cap
- Lead-free
- -55 to 125 deg C of operating temperature
- 10 kA at 125 VDC interrupting rating
- 1 hr maximum at 135%, 4 hrs maximum at 100%, 15 sec at 200% of response time
-
Alternative Part Number0314010.VXP|9534033
-
UNSPSC39121627
-
IDEA Index ID9534033
-
Package DescriptionEACH
-
Standards/ApprovalsStandard 248-6 UL File No. E10480|CSA 29862|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
