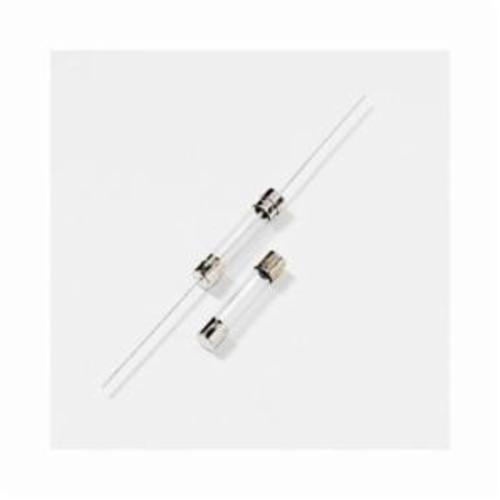

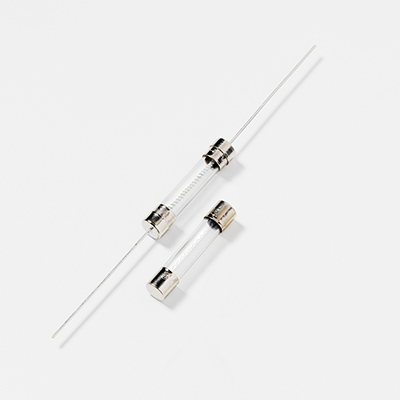

Littelfuse® POWR-GARD® Slo-Blo® 313.500P Time Delay Cartridge Fuse, 0.5 A, 250 V AC, 10 kA Interrupt, Class: RK1, Cartridge Body
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.
-
BrandLittelfuse®
-
UPC079458922813
-
Manufacturer Part Number313.500P
-
CountryUSA|Canada
-
Terminal TypeAxial Lead
-
MaterialGlass
-
ClassRK1
-
Response Time4 hr, 1 hr, 5 to 30 s
-
TypeTime Delay
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating0.5 A
-
Series313
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating10 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCartridge
- Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
- 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
- Guesswork and time consuming circuit testing is eliminated
- Unique design offers the same quality performance characteristics as the standard 3AG fuse design
- Lead-free
- Nickel plated brass cap
- -55 to 125 deg C operating temperature
- 10 kA at 125 VAC interrupting rating
- 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
- 1.26 ohms nominal cold resistance
- 2.55 I2T (A2 sec) nominal melting
-
Alternative Part Number0313.500VXP|9533991
-
UNSPSC39121627
-
IDEA Index ID9533991
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12|UL File No. E10480|CSA 29862|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
