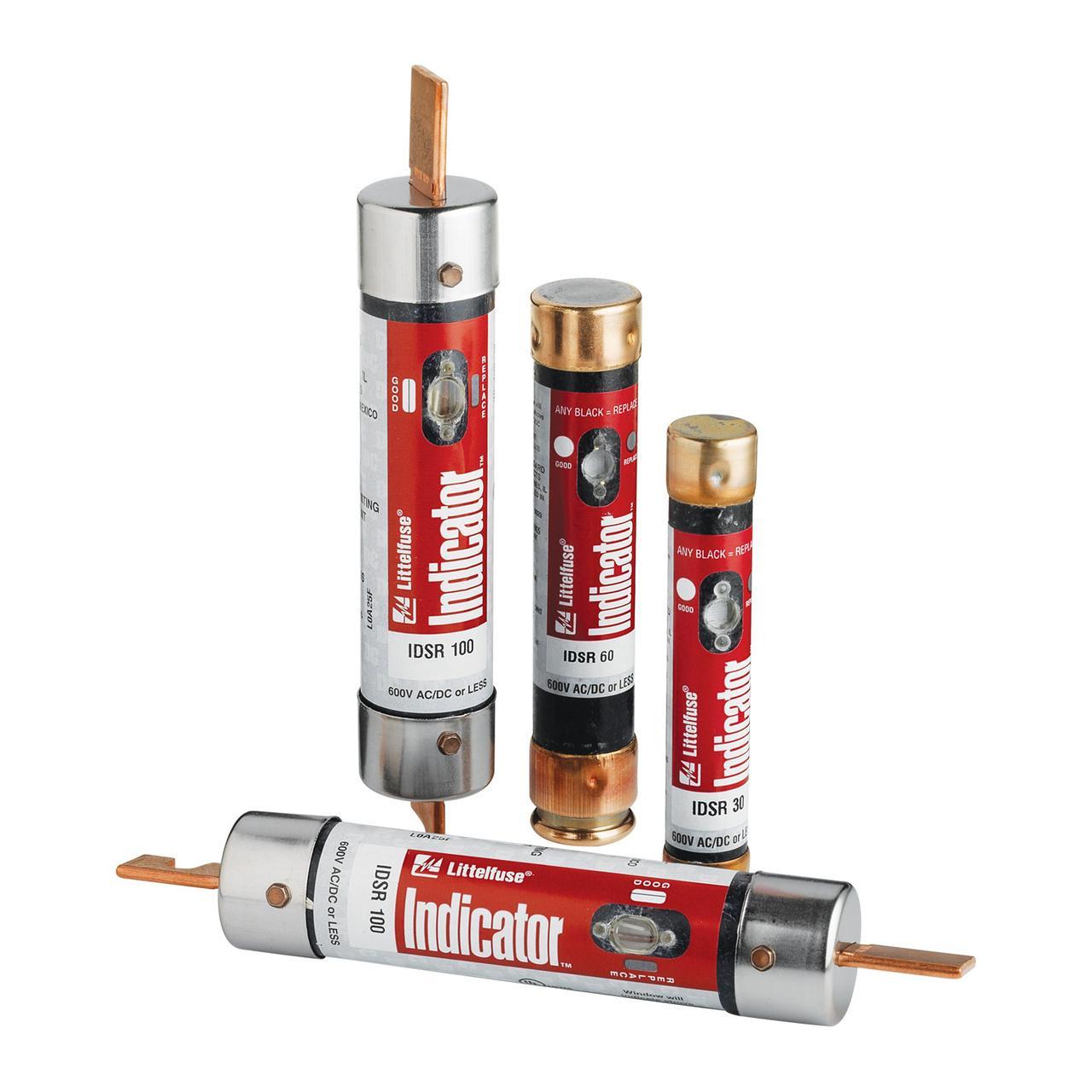

Littelfuse® POWR-GARD® IDSR080 Current Limiting Time Delay Fuse, 80 A, 600 V AC/DC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
The Littelfuse® IDSR indicator fuse is the first indicating power fuse ever. Its solid state design provides state-of-the-art reliability, it will forever change the way you look at modern circuit protection. Money is wasted each time a circuit opens and halts production. Thousands of dollars can be lost with every minute spent testing to discover the cause. The Littelfuse® IDSR indicator fuse offers you a better way. Just a simple glance a the IDSR indicator's window tells which circuit is open. The circuit can be tested and any problem corrected without unnecessary delay. No time wasted finding the faulted circuit. No system damage and no costly down time.
-
BrandLittelfuse®
-
UPC079458015706
-
Manufacturer Part NumberIDSR080
-
CountryUSA
-
Terminal TypeKnife Blade
-
MaterialComposite
-
ClassRK5
-
Rejection/Non-RejectionRejection
-
Response Time10 s
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/DC
-
Amperage Rating80 A
-
SeriesIDSR
-
Indicating/Non-IndicatingIndicating
-
Interrupt Rating200/20 kA
-
Body Size1-5/16 in Dia x 7-7/8 in L
-
Body TypeCylindrical
-
ElementDual
- Patented design fuses
- Pinpoint open fuses immediately
- Reduce down time
- Superior time delay
- 200/300 kA rms symmetrical self certified
- Copper caps
- Industrial cylindrical cartridge fuses
-
Alternative Part NumberIDSR080.V|8557544
-
UNSPSC39121627
-
IDEA Index ID8557544
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12/198M|E81895|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
