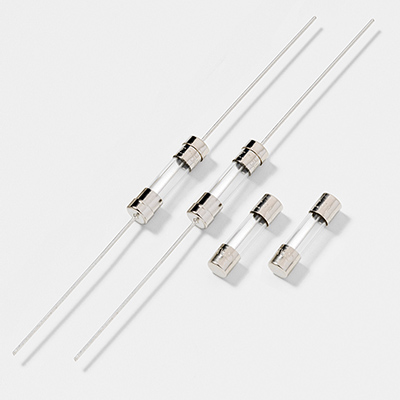

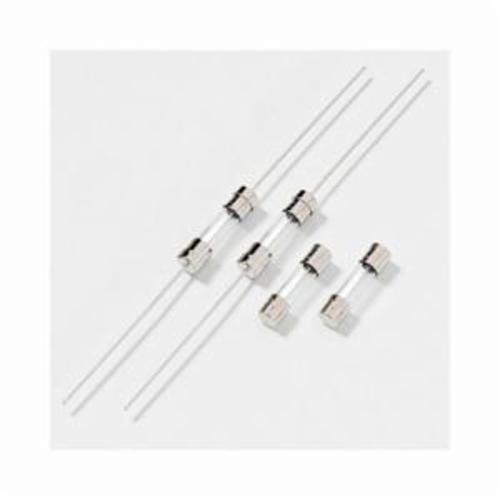

Littelfuse® 218.125P Time Delay Fuse
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458904277
-
Manufacturer Part Number218.125P
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialGlass
-
ClassRK5
-
Response Time20 to 300 ms
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating0.125 A
-
Series218
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating35 A
-
Body Size5 mm Dia x 20 mm L
-
Body TypeCartridge
- Designed to international IEC standards for use globally
- Meets the IEC 60127-2, sheet 3 specification for time lag fuses
- Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
- 60 min minimum at 150%, 2 min maximum at 210%, 0.2 sec minimum and 10 sec maximum at 275%, 0.04 sec min and 3 sec maximum at 400%, 0.01 sec min and 0.3 sec maximum at 1000% response time
- Nickel plated brass cap
- Tin plated copper leads
-
Alternative Part Number0218.125VXP|9533747
-
UNSPSC39121627
-
IDEA Index ID9533747
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12|IEC 60127-2|CSA Certified|CE Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
