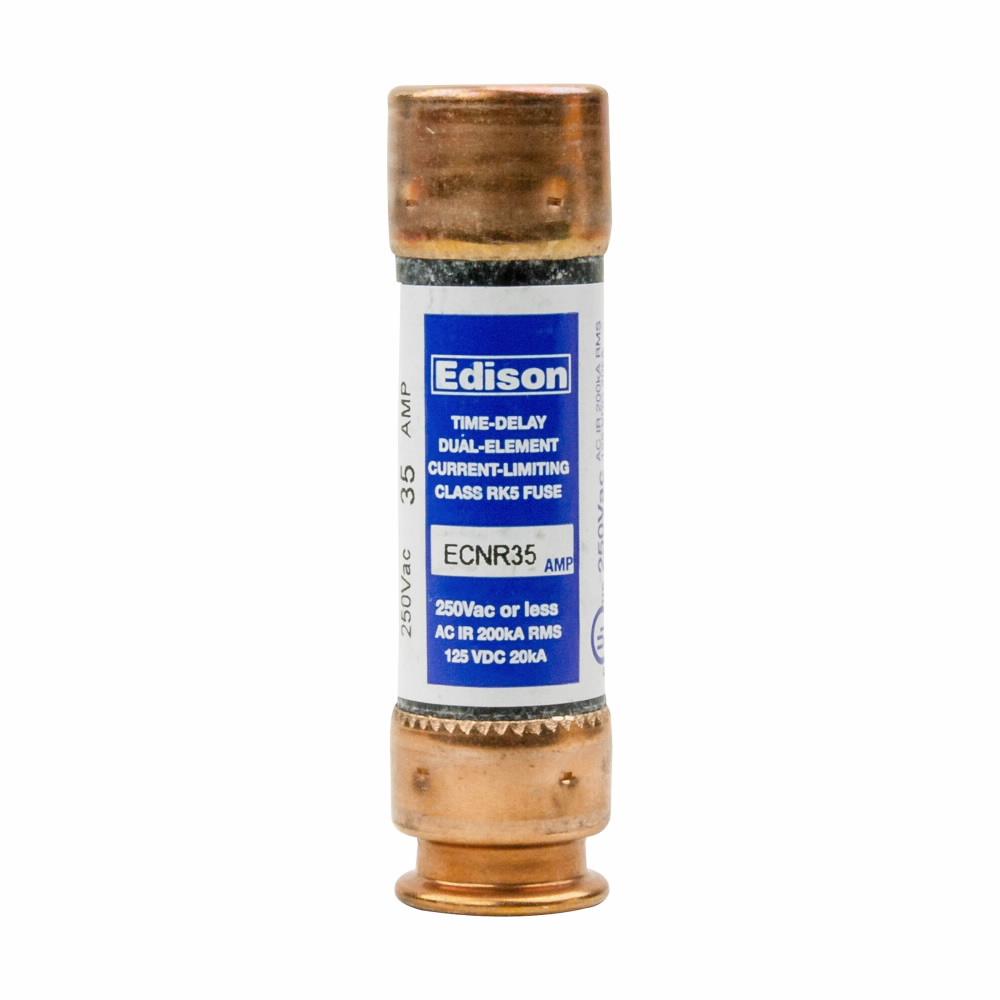

Edison Bullet™ ECNR35 ECNR Current Limiting Time Delay Fuse, 35 A, 250 V AC/125 V DC, 200 kA Interrupt, RK5 Class, Cylindrical Body
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
-
BrandEdison
-
UPC782634507352
-
Manufacturer Part NumberECNR35
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialFiberglass
-
ClassRK5
-
Rejection/Non-RejectionRejection
-
Response Time10 s
-
TypeCurrent Limiting
-
Mounting TypeClip
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating35 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kA
-
Body Size3 in Dia x 0.81 in L
-
Body TypeCylindrical
-
ElementDual
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from single phasing on 3-phase systems
- Simplifies and improves blackout prevention (selective coordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the amperage rating of the fuse for a minimum of 10 sec
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 12W255 |
-
Alternative Part Number8424418
-
UNSPSC39121606
-
IDEA Index ID8424418
-
Package DescriptionEACH
-
Standards/ApprovalsCE Marked
-
